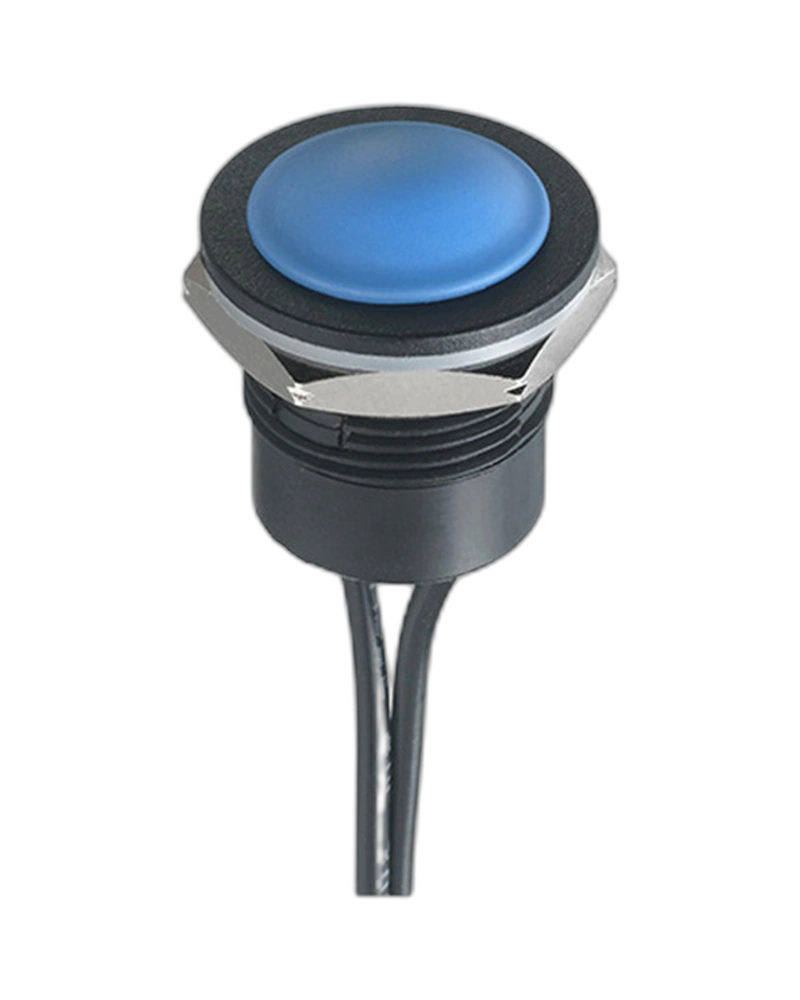

The APEM Panel Switches IAR3F1600 is a robust autoswitch designed for industrial applications. With an IP67 sealing rating, 100 MΩ insulation resistance at 500 VDC, and a total travel of 1.5 mm, this switch ensures reliable operation in harsh environments. Ideal for demanding electrical systems requiring high durability and precise switching performance.
The APEM Panel Switches IAR3F1600 is a high-performance autoswitch engineered for industrial environments where reliability and durability are critical. This panel switch delivers exceptional electrical and mechanical performance through its robust construction, including an IP67 rating for dust and water resistance, 100 MΩ insulation resistance at 500 VDC, and a total travel of 1.5 mm. Designed to withstand extreme operating conditions from -20 °C to +65 °C, the IAR3F1600 ensures consistent performance in demanding applications such as machinery control, automation systems, and industrial equipment where precise switching is essential.
The IAR3F1600 delivers high electrical reliability with a minimum insulation resistance of 100 MΩ at 500 VDC, ensuring robust protection against electrical faults. Its dielectric strength of 500 Vrms and electrical life of 1,000,000 cycles at full load guarantee long-term performance in high-demand applications. The initial contact resistance of 100 mΩ max ensures minimal voltage drop during switching operations.
Engineered for extreme conditions, the IAR3F1600 operates within a temperature range of -20 °C to +65 °C, making it suitable for both cold and hot industrial environments. Its IP67 sealing rating provides complete protection against dust and water ingress, ensuring reliable operation in wet or dusty settings without compromising performance.
With a panel thickness of 7 mm (max), the IAR3F1600 offers a sturdy construction that resists physical stress. The switch requires a torque of 0.5 to 1 Nm max for nut installation, ensuring secure mounting without excessive force. A total travel of 1.5 mm (±0.3 mm typical) ensures precise and repeatable switching action.
| Feature | Specification |
|---|---|
| Sealing | IP67 |
| Insulation resistance | 100 MΩ min. at 500 VDC |
| Panel thickness | 7 mm (.276) max. |
| Total travel | 1.5 mm (.059) +/- 0.3 mm Typical |
| Torque | 0.5 to 1 Nm max. applied to nut |
| Operating temperature | -20 °C to +65 °C |
The APEMPanel Switches IAR3F1600 is presented using the documented product characteristics available for this model.
| Feature | Specification |
|---|---|
| Sealing | IP67 |
| Insulation resistance | 100 MΩ min. at 500 VDC |
| Panel thickness | 7 mm (.276) max. |
| Total travel | 1.5 mm (.059) +/- 0.3 mm Typical |
| Torque | 0.5 to 1 Nm max. applied to nut |
| Operating temperature | -20 °C to +65 °C |
