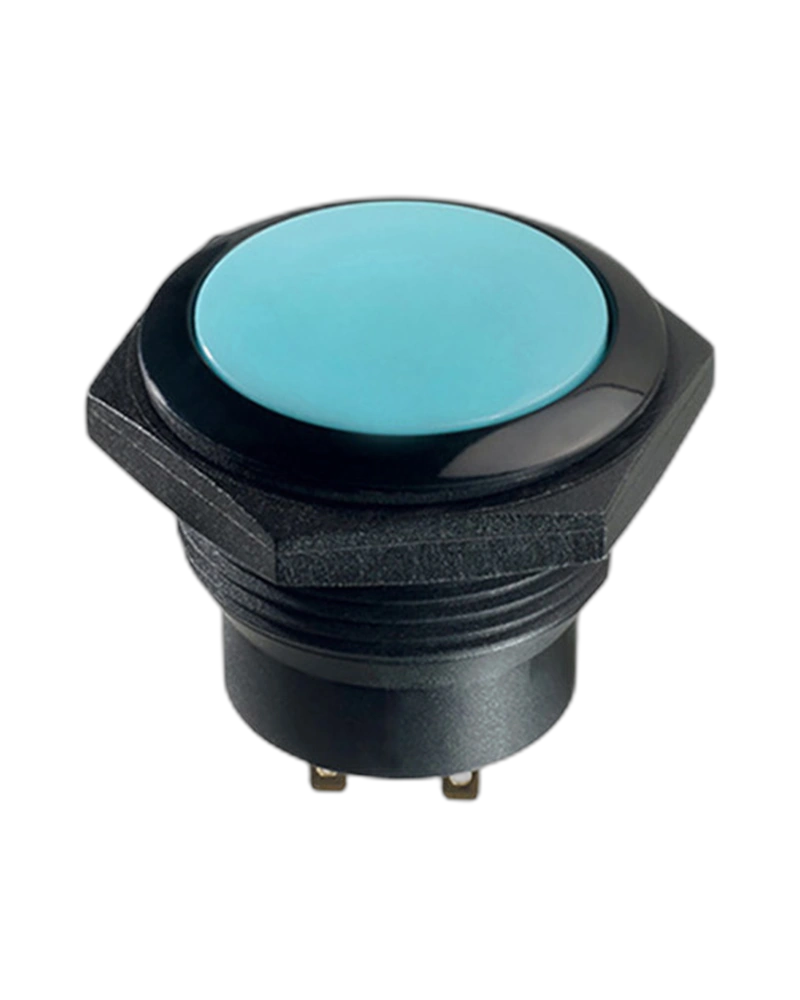

The FPDR3D1422B1201 Panel Switch features a normally open configuration and solder lugs for secure connections, ideal for various electrical applications. Select Quantity
| Feature | Specification |
|---|---|
| force | 8 N |
| Feature | Specification |
|---|---|
| Insulation resistance | 1 GΩ min. at 500 VDC |
| Dielectric strength | 1,000 Vrms 50 Hz min. Electrical life at full load :- Momentary models : 1 million cycles (gold plated contacts) 400,000 cycles (silver contacts)- Latching models : 200,000 cycles Electrical life at full load :- Momentar |
| Panel thickness | - Snap-in version : 1.5 (.059) to 2 mm (.078) with panel gasket 2 (.078) to 2.5 mm (.885) without panel gasket- Threaded bushing version : 1(.039) to 9 mm (.354) max. |
| Total travel | 2.8 mm ± 0.5 mm Typical |
| Torque | 2 Nm max. applied to nut Full actuator or symbol illumination Snap-in and threaded bushing models Large but lightweight Pad printed or laser etched symbols Snap-in and threaded bushing models Large but lightweight Pad pr |
| LED Color | Green,Actuator Colors:Black,Actuators:Round, Curved,Bezel Color:Black,Led Control And No Of Poles:Independent 2 Poles,Led Resistors:12VDC Resistor,Markings:Laser,Model:Threaded Bushing 30 mm (1.1811in) |
| Operating temperature | -40 °C to +75 °C |
| Max. current/voltage rating with resistive load | - silver contacts (code 2) : 4 A 12 VDC- gold plated contacts (code 4) : 200 mA 12 VDC |
| Electrical Functions | Normally Open (NO) |
