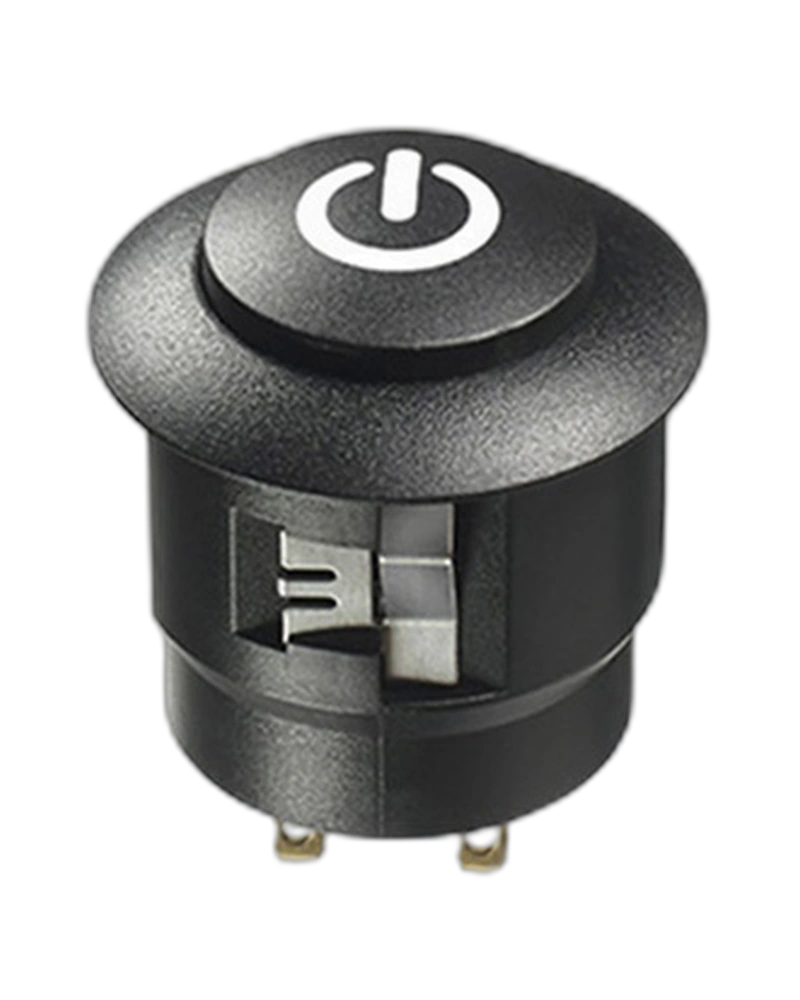

The APEM Panel Switches FPBR1C1462E1113 is a robust 1-pole autoswitch designed for industrial applications. Featuring IP54 sealing with a 2mm panel thickness, this switch offers reliable operation in harsh environments. With gold-plated contacts supporting 200 mA 12 VDC loads and momentary models delivering 1 million cycles, it ensures long-term performance in demanding electrical systems.
The APEM FPBR1C1462E1113 is a high-reliability 1-pole panel switch engineered for industrial automation and control systems. This autoswitch delivers precise ON/OFF functionality with exceptional durability, featuring IP54 protection against dust and water ingress via a panel gasket. Designed for operation across a wide temperature range (-40°C to +75°C), it combines compact dimensions (26mm) with robust electrical performance, including 1 GΩ insulation resistance at 500 VDC and dielectric strength of 1,000 Vrms 50 Hz. The switch supports both momentary and latching operation, with gold-plated contacts providing extended electrical life (1 million cycles) for critical applications where reliability is paramount.
The FPBR1C1462E1113 delivers reliable electrical operation with a minimum insulation resistance of 1 GΩ at 500 VDC and dielectric strength of 1,000 Vrms 50 Hz. Gold-plated contacts support 200 mA 12 VDC loads for extended life (1 million cycles), while silver contacts handle 4 A 12 VDC resistive loads. The switch operates within a temperature range of -40°C to +75°C, ensuring performance in extreme environments.
Engineered for industrial use, this switch features momentary models with 1 million cycles and latching models with 200,000 cycles. The 8 N ± 2 N operating force ensures smooth actuation, while the 2.5 mm ± 0.5 mm total travel provides precise mechanical movement. The switch is designed for robust installation with snap-in mounting and a 26mm (1.023in) form factor.
IP54 rated for dust and water resistance (IEC 60529), the switch includes a panel gasket and operates with a 2mm panel thickness. This ensures protection against solid particles and low-level water splashes, making it suitable for industrial settings where environmental exposure is a concern.
Ideal for industrial control panels, the FPBR1C1462E1113 integrates seamlessly with automation systems requiring reliable switching. Its snap-in design, white LED indicator, and pad-printed markings simplify installation and maintenance. The switch supports both momentary and latching operation, providing flexibility for diverse control needs.
| Feature | Specification |
|---|---|
| sealing | IP54 according to IEC 60529 with panel gasket and 2 mm panel thickness |
| Insulation resistance | 1 GΩ min. at 500 VDC |
| Dielectric strength | 1,000 Vrms 50 Hz min. Electrical life at full load :- Momentary models : 1 million cycles (gold plated contacts), 400,000 cycles (silver contacts)- Latching models : 200,000 cycles Electrical life at full load :- Momenta |
| Panel thickness | 1,5 (.059) to 2 mm (.078) with panel gasket, 2 (.078) to 2.5 mm (.885) without panel gasket |
| Total travel | 2.5 mm ± 0.5 mm Typical |
| LED Color | White,Actuator Colors:Red,Actuators:Round, Curved,Bezel Color:Black,Led Control And No Of Poles:Independent 1-Pole,Led Resistors:12VDC Resistor,Markings:White Pad Printing,Model:Snap in 26mm (1.023in) |
| Operating temperature | -40 °C to +75 °C |
| Max. current/voltage rating with resistive load | - silver contacts (code 2) : 4 A 12 VDC- gold plated contacts (code 4) : 200 mA 12 VDC |
| Electrical Functions | ON OFF |
The APEMPanel Switches FPBR1C1462E1113 is presented using the documented product characteristics available for this model.
| Feature | Specification |
|---|---|
| sealing | IP54 according to IEC 60529 with panel gasket and 2 mm panel thickness |
| Insulation resistance | 1 GΩ min. at 500 VDC |
| Dielectric strength | 1,000 Vrms 50 Hz min. Electrical life at full load :- Momentary models : 1 million cycles (gold plated contacts), 400,000 cycles (silver contacts)- Latching models : 200,000 cycles Electrical life at full load :- Momenta |
| Panel thickness | 1,5 (.059) to 2 mm (.078) with panel gasket, 2 (.078) to 2.5 mm (.885) without panel gasket |
| Total travel | 2.5 mm ± 0.5 mm Typical |
| LED Color | White,Actuator Colors:Red,Actuators:Round, Curved,Bezel Color:Black,Led Control And No Of Poles:Independent 1-Pole,Led Resistors:12VDC Resistor,Markings:White Pad Printing,Model:Snap in 26mm (1.023in) |
| Operating temperature | -40 °C to +75 °C |
| Max. current/voltage rating with resistive load | - silver contacts (code 2) : 4 A 12 VDC- gold plated contacts (code 4) : 200 mA 12 VDC |
| Electrical Functions | ON OFF |
