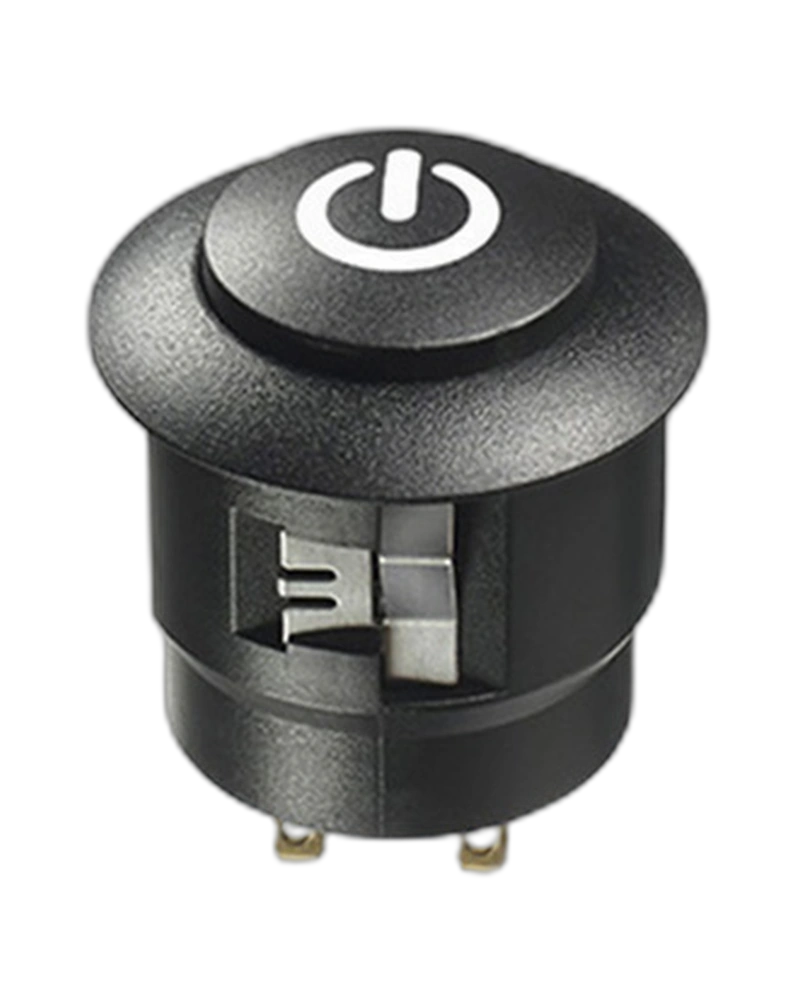

The APEM Panel Switches FPBR1C1266C1X is a robust, snap-in 1-pole switch designed for industrial applications. With IP54 sealing, 1 million cycles for momentary models, and operation across -40°C to +75°C, this switch ensures reliable performance in demanding environments. Ideal for control panels requiring durable, low-force actuation.
The APEM FPBR1C1266C1X is a high-reliability, snap-in 1-pole panel switch engineered for industrial control systems. Featuring IP54 protection with a panel gasket and 2 mm thickness, this switch delivers exceptional durability in harsh environments. Its robust construction supports 1 million cycles for momentary models and 200,000 cycles for latching models, ensuring long-term operational integrity. The switch operates within a wide temperature range of -40°C to +75°C and is rated for 4 A 12 VDC with silver contacts, making it suitable for critical applications where reliability and longevity are paramount.
The FPBR1C1266C1X operates at 12 VDC with a maximum current rating of 4 A for silver contacts and 200 mA for gold-plated contacts. It features an initial contact resistance of 50 mΩ max and insulation resistance of 1 GΩ min at 500 VDC. Dielectric strength is 1,000 Vrms 50 Hz, ensuring reliable performance under electrical stress.
Engineered for extreme conditions, this switch operates within a temperature range of -40°C to +75°C. Its IP54 rating provides protection against dust and water splashes, achieved through a panel gasket and 2 mm panel thickness. The switch is designed for use in industrial environments where exposure to harsh conditions is common.
With a total travel of 2.5 mm ± 0.5 mm and operating force of 8 N ± 2 N, the FPBR1C1266C1X ensures smooth, precise actuation. The switch supports 1 million cycles for momentary models and 200,000 cycles for latching models, making it ideal for applications requiring high mechanical resilience.
The switch features solder lug terminals for secure electrical connections and a snap-in 26 mm (1.023 in) design. Its lightweight construction with pad-printed or laser-etched symbols ensures easy integration into control panels. The red LED indicator provides clear visual feedback, while the round, curved actuator design offers intuitive operation.
| Feature | Specification |
|---|---|
| sealing | IP54 according to IEC 60529 with panel gasket and 2 mm panel thickness |
| Insulation resistance | 1 GΩ min. at 500 VDC |
| Dielectric strength | 1,000 Vrms 50 Hz min. Electrical life at full load :- Momentary models : 1 million cycles (gold plated contacts), 400,000 cycles (silver contacts)- Latching models : 200,000 cycles Electrical life at full load :- Momenta |
| Panel thickness | 1,5 (.059) to 2 mm (.078) with panel gasket, 2 (.078) to 2.5 mm (.885) without panel gasket |
| Total travel | 2.5 mm ± 0.5 mm Typical |
| LED Color | Red,Actuator Colors:Red,Actuators:Round, Curved,Bezel Color:Red,Contact Materials:Silver,Led Control And No Of Poles:Independent 1-Pole,Led Resistors:12VDC Resistor,Markings:No Marking,Model:Snap in 26mm (1.023in) |
| Operating temperature | -40 °C to +75 °C |
| Max. current/voltage rating with resistive load | - silver contacts (code 2) : 4 A 12 VDC- gold plated contacts (code 4) : 200 mA 12 VDC |
| Electrical Functions | ON OFF |
The APEMPanel Switches FPBR1C1266C1X is presented using the documented product characteristics available for this model.
| Feature | Specification |
|---|---|
| sealing | IP54 according to IEC 60529 with panel gasket and 2 mm panel thickness |
| Insulation resistance | 1 GΩ min. at 500 VDC |
| Dielectric strength | 1,000 Vrms 50 Hz min. Electrical life at full load :- Momentary models : 1 million cycles (gold plated contacts), 400,000 cycles (silver contacts)- Latching models : 200,000 cycles Electrical life at full load :- Momenta |
| Panel thickness | 1,5 (.059) to 2 mm (.078) with panel gasket, 2 (.078) to 2.5 mm (.885) without panel gasket |
| Total travel | 2.5 mm ± 0.5 mm Typical |
| LED Color | Red,Actuator Colors:Red,Actuators:Round, Curved,Bezel Color:Red,Contact Materials:Silver,Led Control And No Of Poles:Independent 1-Pole,Led Resistors:12VDC Resistor,Markings:No Marking,Model:Snap in 26mm (1.023in) |
| Operating temperature | -40 °C to +75 °C |
| Max. current/voltage rating with resistive load | - silver contacts (code 2) : 4 A 12 VDC- gold plated contacts (code 4) : 200 mA 12 VDC |
| Electrical Functions | ON OFF |
