The APEM Panel Switches FPBR1C1222D12A6 is a robust 1-pole autoswitch designed for industrial applications. Featuring IP54 protection, gold-plated contacts for 200 mA 12 VDC operation, and 1 million cycles for momentary models, this snap-in switch delivers reliable performance in demanding environments. Ideal for machinery control systems requiring precise switching with minimal maintenance.

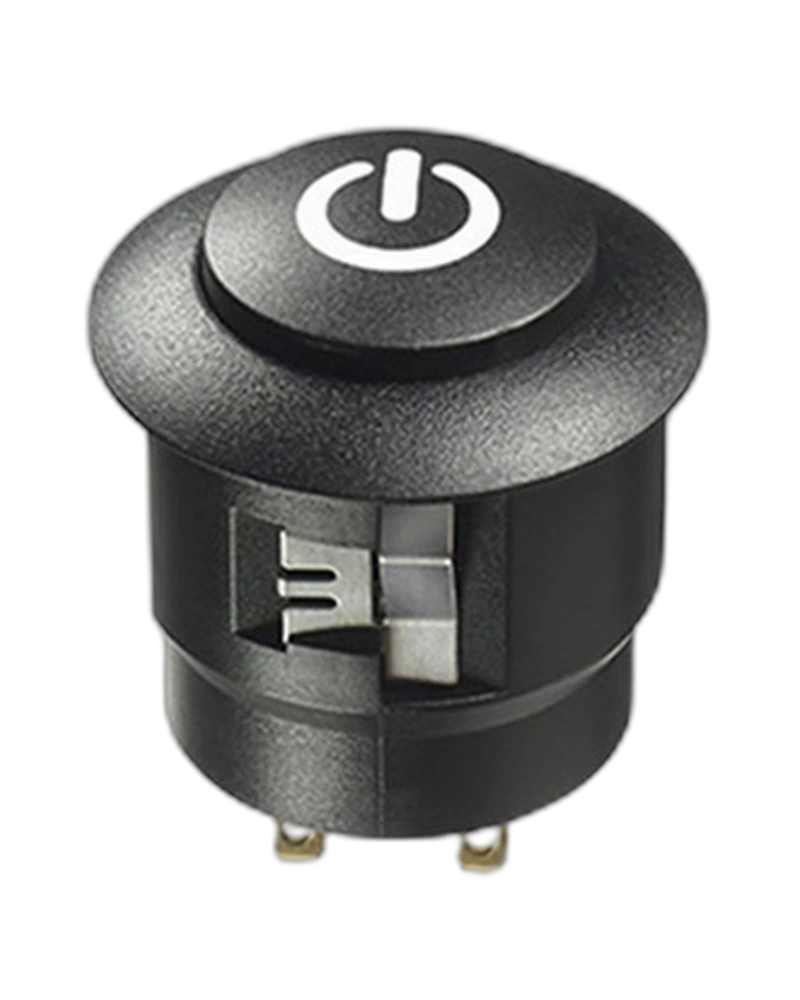

The APEM FPBR1C1222D12A6 is a high-reliability 1-pole autoswitch engineered for industrial automation systems. This snap-in panel switch combines durable construction with precise electrical performance, offering IP54-rated protection against dust and water ingress. With gold-plated contacts supporting 200 mA 12 VDC loads and exceptional electrical life of 1 million cycles, it ensures long-term functionality in harsh conditions. The switch’s compact 26mm form factor and robust terminal design make it suitable for integration into machinery, control panels, and automated systems where reliable switching is critical.
The FPBR1C1222D12A6 delivers reliable electrical switching with a maximum current rating of 200 mA at 12 VDC for gold-plated contacts. It supports 1 million cycles for momentary models and 200,000 cycles for latching models under full load. The switch maintains an initial contact resistance of 50 mΩ max and offers high insulation resistance (1 GΩ min at 500 VDC) and dielectric strength (1,000 Vrms 50 Hz min) to ensure robust performance in industrial environments.
Engineered for extreme conditions, this switch operates within a temperature range of -40 °C to +75 °C. Its IP54 rating (IEC 60529) provides protection against dust and water splashes, making it suitable for outdoor installations and harsh industrial settings. The 2 mm panel thickness with integrated gasket ensures effective sealing while maintaining structural integrity.
The switch features a total travel of 2.5 mm ± 0.5 mm, ensuring precise actuation with minimal wear. With an operating force of 8 N ± 2 N, it requires consistent mechanical input for reliable switching. The robust construction, including a 26mm snap-in design and round curved actuators, supports high-cycle applications without compromising performance.
Ideal for machinery control panels, automation systems, and equipment requiring reliable on/off switching. The switch’s compact size and low-profile design integrate seamlessly into industrial panels, while its high electrical life and environmental resilience ensure minimal maintenance in demanding applications.
| Feature | Specification |
|---|---|
| Insulation resistance | 1 GΩ min. at 500 VDC |
| Dielectric strength | 1,000 Vrms 50 Hz min. Electrical life at full load :- Momentary models : 1 million cycles (gold plated contacts), 400,000 cycles (silver contacts)- Latching models : 200,000 cycles Electrical life at full load :- Momenta |
| sealing | IP54 according to IEC 60529 with panel gasket and 2 mm panel thickness |
| Panel thickness | 1,5 (.059) to 2 mm (.078) with panel gasket, 2 (.078) to 2.5 mm (.885) without panel gasket |
| Total travel | 2.5 mm ± 0.5 mm Typical |
| LED Color | Yellow,Actuator Colors:Black,Actuators:Round, Curved,Bezel Color:Black,Contact Materials:Silver,Led Control And No Of Poles:Independent 1-Pole,Led Resistors:12VDC Resistor,Markings:Laser,Model:Snap in 26mm (1.023in) |
| Operating temperature | -40 °C to +75 °C |
| Max. current/voltage rating with resistive load | - silver contacts (code 2) : 4 A 12 VDC- gold plated contacts (code 4) : 200 mA 12 VDC |
| Electrical Functions | ON OFF |
The APEMPanel Switches FPBR1C1222D12A6 is presented using the documented product characteristics available for this model.
| Feature | Specification |
|---|---|
| Insulation resistance | 1 GΩ min. at 500 VDC |
| Dielectric strength | 1,000 Vrms 50 Hz min. Electrical life at full load :- Momentary models : 1 million cycles (gold plated contacts), 400,000 cycles (silver contacts)- Latching models : 200,000 cycles Electrical life at full load :- Momenta |
| sealing | IP54 according to IEC 60529 with panel gasket and 2 mm panel thickness |
| Panel thickness | 1,5 (.059) to 2 mm (.078) with panel gasket, 2 (.078) to 2.5 mm (.885) without panel gasket |
| Total travel | 2.5 mm ± 0.5 mm Typical |
| LED Color | Yellow,Actuator Colors:Black,Actuators:Round, Curved,Bezel Color:Black,Contact Materials:Silver,Led Control And No Of Poles:Independent 1-Pole,Led Resistors:12VDC Resistor,Markings:Laser,Model:Snap in 26mm (1.023in) |
| Operating temperature | -40 °C to +75 °C |
| Max. current/voltage rating with resistive load | - silver contacts (code 2) : 4 A 12 VDC- gold plated contacts (code 4) : 200 mA 12 VDC |
| Electrical Functions | ON OFF |
