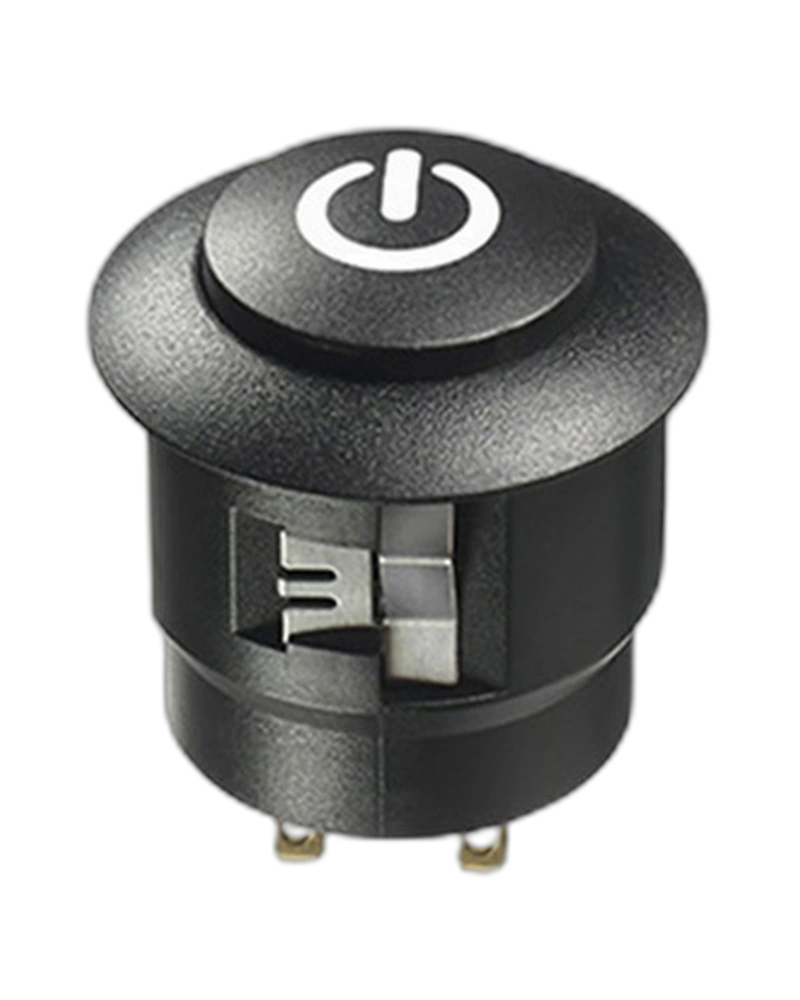

The APEM Panel Switches FPBP1C1262C2213 is a Switches and Pushbutton with documented product-specific characteristics including Terminals: Solder Lug Symbols: Hazard Warning; Insulation resistance: 1 GΩ min. at 500 VDC; Dielectric strength: 1,000 Vrms 50 Hz min. Electrical life at full load:- Momentary models: 1 million cycles (gold plated contacts), 400,000 cycles (silver contacts)- Latching models: 200,000 cycles Electrical life at full load:- Momenta.
| Feature | Specification |
|---|---|
| Insulation resistance | 1 GΩ min. at 500 VDC |
| Dielectric strength | 1,000 Vrms 50 Hz min. Electrical life at full load :- Momentary models : 1 million cycles (gold plated contacts), 400,000 cycles (silver contacts)- Latching models : 200,000 cycles Electrical life at full load :- Momenta |
| sealing | IP54 according to IEC 60529 with panel gasket and 2 mm panel thickness |
| Panel thickness | 1,5 (.059) to 2 mm (.078) with panel gasket, 2 (.078) to 2.5 mm (.885) without panel gasket |
| Total travel | 2.5 mm ± 0.5 mm Typical |
| LED Color | Red,Actuator Colors:Red,Actuators:Round, Flat,Bezel Color:Black,Contact Materials:Silver,Led Control And No Of Poles:Independent 1-Pole,Led Resistors:24VDC Resistor,Markings:Laser,Model:Snap in 26mm (1.023in) |
| Operating temperature | -40 °C to +75 °C |
| Max. current/voltage rating with resistive load | - silver contacts (code 2) : 4 A 12 VDC- gold plated contacts (code 4) : 200 mA 12 VDC |
| Electrical Functions | ON OFF |
