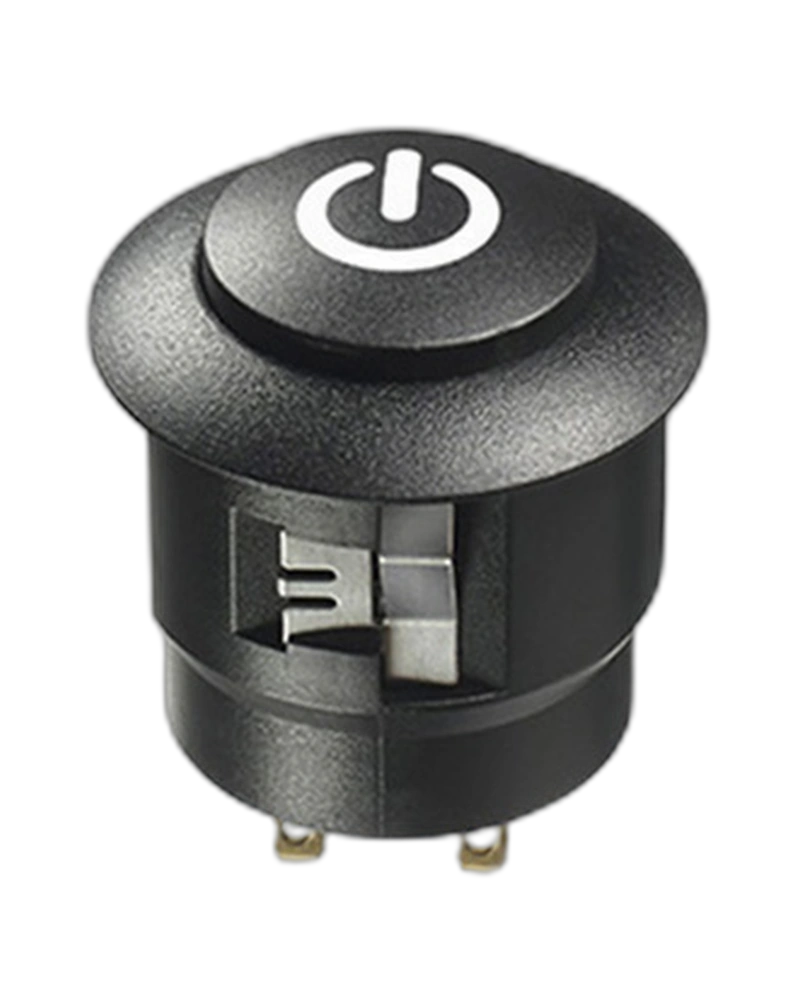

The APEM Panel Switches FPBF1C1222E2215 is a robust, snap-in autoswitch designed for industrial applications. Featuring IP54 protection, 1 GΩ min. insulation resistance at 500 VDC, and 1,000 Vrms dielectric strength, this 1-pole switch delivers reliable operation across -40°C to +75°C temperatures. Ideal for demanding environments requiring high electrical life and precise actuation.
The APEM Panel Switches FPBF1C1222E2215 is a high-reliability, snap-in autoswitch engineered for industrial control panels. This 1-pole switch combines robust electrical performance with compact design, featuring IP54 protection against dust and water ingress. With a 2.5 mm ± 0.5 mm total travel and 8 N ± 2 N operating force, it ensures precise actuation in harsh conditions. The switch supports both momentary and latching operation, delivering up to 1 million cycles for momentary models and 200,000 cycles for latching models under full load conditions. Its wide temperature range of -40°C to +75°C and compatibility with 12 VDC resistive loads make it suitable for critical industrial applications where durability and consistent performance are essential.
The FPBF1C1222E2215 delivers high electrical reliability with 1 GΩ min. insulation resistance at 500 VDC and 1,000 Vrms dielectric strength (50 Hz). It supports 12 VDC resistive loads, with silver contacts handling up to 4 A and gold-plated contacts rated for 200 mA. The switch operates within a wide temperature range of -40°C to +75°C, ensuring consistent performance in extreme environments.
Engineered for industrial use, this switch features a 2.5 mm ± 0.5 mm total travel and 8 N ± 2 N operating force. The momentary models provide 1 million cycles, while latching models deliver 200,000 cycles under full load conditions. Its robust construction ensures long-term reliability in high-traffic applications.
With IP54 protection (IEC 60529), the switch resists dust and water ingress. The panel gasket and 2 mm panel thickness (with gasket) or 2.5 mm (without gasket) ensure secure installation in demanding environments. The switch operates effectively across a wide temperature range of -40°C to +75°C.
The snap-in design with 26 mm (1.023 in) mounting size allows for quick installation. The switch uses solder lugs for terminals and features pad-printed or laser-etched symbols for clear identification. Its lightweight design and flush, curved, or beveled actuator options provide flexibility in panel integration.
| Feature | Specification |
|---|---|
| Insulation resistance | 1 GΩ min. at 500 VDC |
| Dielectric strength | 1,000 Vrms 50 Hz min. Electrical life at full load :- Momentary models : 1 million cycles (gold plated contacts), 400,000 cycles (silver contacts)- Latching models : 200,000 cycles Electrical life at full load :- Momenta |
| sealing | IP54 according to IEC 60529 with panel gasket and 2 mm panel thickness |
| Panel thickness | 1,5 (.059) to 2 mm (.078) with panel gasket, 2 (.078) to 2.5 mm (.885) without panel gasket |
| Total travel | 2.5 mm ± 0.5 mm Typical |
| Operating temperature | -40 °C to +75 °C |
| LED Color | White,Actuator Colors:Black,Actuators:Round, Curved, Flush,Bezel Color:Black,Contact Materials:Silver,Led Control And No Of Poles:Independent 1-Pole,Led Resistors:24VDC Resistor,Markings:Laser,Model:Snap in 26mm (1.023in |
| Max. current/voltage rating with resistive load | - silver contacts (code 2) : 4 A 12 VDC- gold plated contacts (code 4) : 200 mA 12 VDC |
| Electrical Functions | ON OFF |
The APEMPanel Switches FPBF1C1222E2215 is presented using the documented product characteristics available for this model.
| Feature | Specification |
|---|---|
| Insulation resistance | 1 GΩ min. at 500 VDC |
| Dielectric strength | 1,000 Vrms 50 Hz min. Electrical life at full load :- Momentary models : 1 million cycles (gold plated contacts), 400,000 cycles (silver contacts)- Latching models : 200,000 cycles Electrical life at full load :- Momenta |
| sealing | IP54 according to IEC 60529 with panel gasket and 2 mm panel thickness |
| Panel thickness | 1,5 (.059) to 2 mm (.078) with panel gasket, 2 (.078) to 2.5 mm (.885) without panel gasket |
| Total travel | 2.5 mm ± 0.5 mm Typical |
| Operating temperature | -40 °C to +75 °C |
| LED Color | White,Actuator Colors:Black,Actuators:Round, Curved, Flush,Bezel Color:Black,Contact Materials:Silver,Led Control And No Of Poles:Independent 1-Pole,Led Resistors:24VDC Resistor,Markings:Laser,Model:Snap in 26mm (1.023in |
| Max. current/voltage rating with resistive load | - silver contacts (code 2) : 4 A 12 VDC- gold plated contacts (code 4) : 200 mA 12 VDC |
| Electrical Functions | ON OFF |
