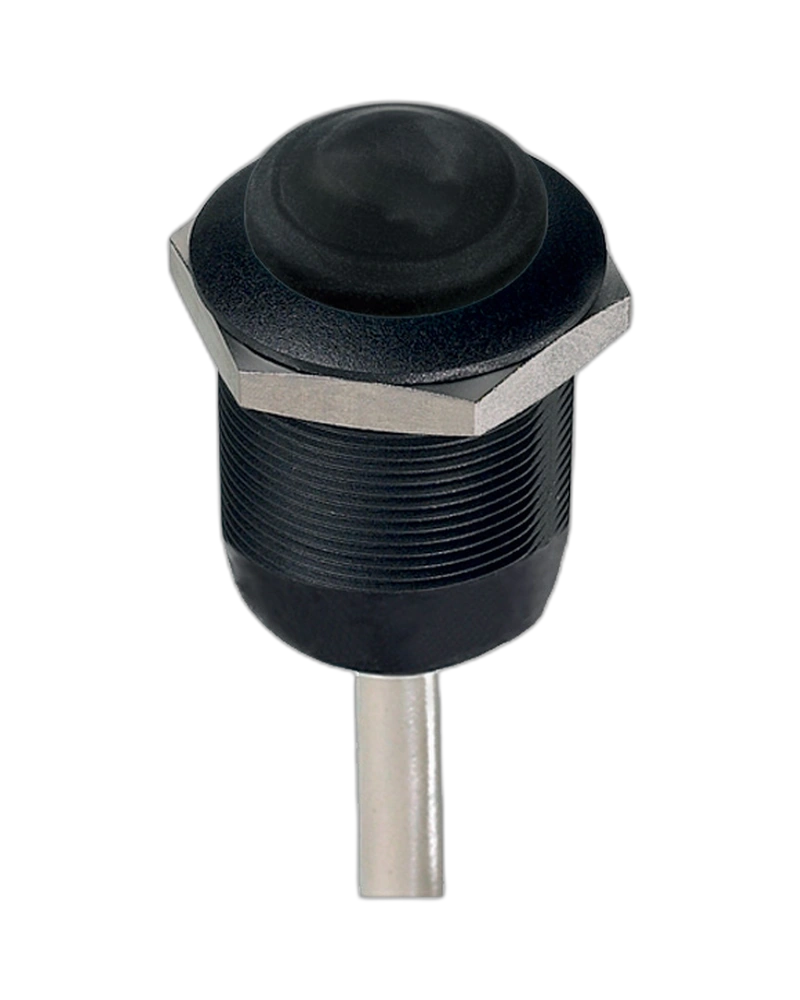

Panel Switches FPAR3A2222X0X

FPAR3A2222X0X Model : Threaded Bushing 24mm (0.944in) Markings : No Marking Actuators : Round, Curved FP 24 mm FPAR3A2222X0X Model : Threaded Bushing 24mm (0.944in) Markings : No Marking Actuators : Round, Curved FP 24 mm FPAR3A1422X0X Model : Threaded Bushing 24mm (0.944in) Markings : No Marking Actuators : Round, Curved FPAR3A1422X0X FP 24 mm FPAR3A1222X0X Model : Threaded Bushing 24mm (0.944in) Markings : No Marking Actuators : Round, Curved FPAR3A1222X0X FP 24 mm FPAR1E1462E1113 Model : Threaded Bushing 24mm (0.944in) Symbols : Hazard Warning Markings : White Pad Printing FPAR1E1462E1113 Symbols : Hazard Warning Markings : White Pad Printing FP 24 mm FPAR1D3422C0213 Model : Threaded Bushing 24mm (0.944in) Symbols : Hazard Warning Markings : Laser FPAR1D3422C0213 Markings : Laser FP 24 mm FPAR1D2422F1226 Model : Threaded Bushing 24mm (0.944in) Symbols : Front Fog Lights Markings : Laser FPAR1D2422F1226 Symbols : Front Fog Lights FP 24 mm FPAR1D1462E1113 Model : Threaded Bushing 24mm (0.944in) Symbols : Hazard Warning Markings : White Pad Printing FPAR1D1462E1113 FP 24 mm FPAR1D1462C2X Model : Threaded Bushing 24mm (0.944in) Markings : No Marking Actuators : Round, Curved FPAR1D1462C2X FP 24 mm FPAR1D1462C1X Model : Threaded Bushing 24mm (0.944in) Markings : No Marking Actuators : Round, Curved FPAR1D1462C1X FP 24 mm FPAR1D1462C1113 Model : Threaded Bushing 24mm (0.944in) Symbols : Hazard Warning Markings : White Pad Printing FPAR1D1462C1113 FP 24 mm FPAR1D1432B1X Model : Threaded Bushing 24mm (0.944in) Markings : No Marking Actuators : Round, Curved FPAR1D1432B1X FP 24 mm FPAR1D1262C1213 Model : Threaded Bushing 24mm (0.944in) Symbols : Hazard Warning Markings : Laser FPAR1D1262C1213 FP 24 mm FPAR1D1222B1218 Model : Threaded Bushing 24mm (0.944in) Symbols : Heating Markings : Laser FPAR1D1222B1218 Symbols : Heating FP 24 mm FPAR1D1222B1212 Model : Threaded Bushing 24mm (0.944in) Symbols : Cold Markings : Laser FPAR1D1222B1212 Symbols : Cold FP 24 mm FPAR1C4222B1244 Model : Threaded Bushing 24mm (0.944in) Symbols : Working Light Markings : Laser FPAR1C4222B1244 Symbols : Working Light FP 24 mm FPAR1C3272F0X Model : Threaded Bushing 24mm (0.944in) Markings : No

Key Features

• Insulation resistance: 1 GΩ min. at 500 VDC
• Dielectric strength: 1,000 Vrms 50 Hz min. Electrical life at full load :- Momentary models : 1 million cycles (gold plated contacts), 400,000 cycles (silver contacts)- Latching models : 200,000 cycles Electrical life at full load :- Momenta
• Panel thickness: 1(.039) to 18 mm (.708) max.
• Total travel: 2.5 mm ± 0.5 mm Typical
• operating force: 8 N ± 2 N Low level or mechanical life :- Momentary models : 1 million cycles- Latching models : 200,000 cycles
• Torque: 3 Nm max. applied to nut Full actuator or symbol illumination Snap-in and threaded bushing models Large but lightweight Pad printed or laser etched symbols Snap-in and threaded bushing models Large but lightweight Pad pr
• Initial contact resistance: 50 mΩ max.
• sealing: IP69K according to DIN 40050-9
• Operating temperature: -40 °C to +75 °C
• LED Color: Non-Illuminated,Led Control And No Of Poles:Non-Illuminated 1-Pole,Led Resistors:No Resistor Supplied,Markings:No Marking,Model:Threaded Bushing 24mm (0.944in)
• Max. current/voltage rating with resistive load: - silver contacts (code 2) : 4 A 12 VDC- gold plated contacts (code 4) : 200 mA 12 VDC
• Terminals: Straight Cable
• Electrical Functions: Normally Open (NO)
• Large but lightweight Pad printed or laser etched symbols
• Pad printed or laser etched symbols

Technical Specifications
