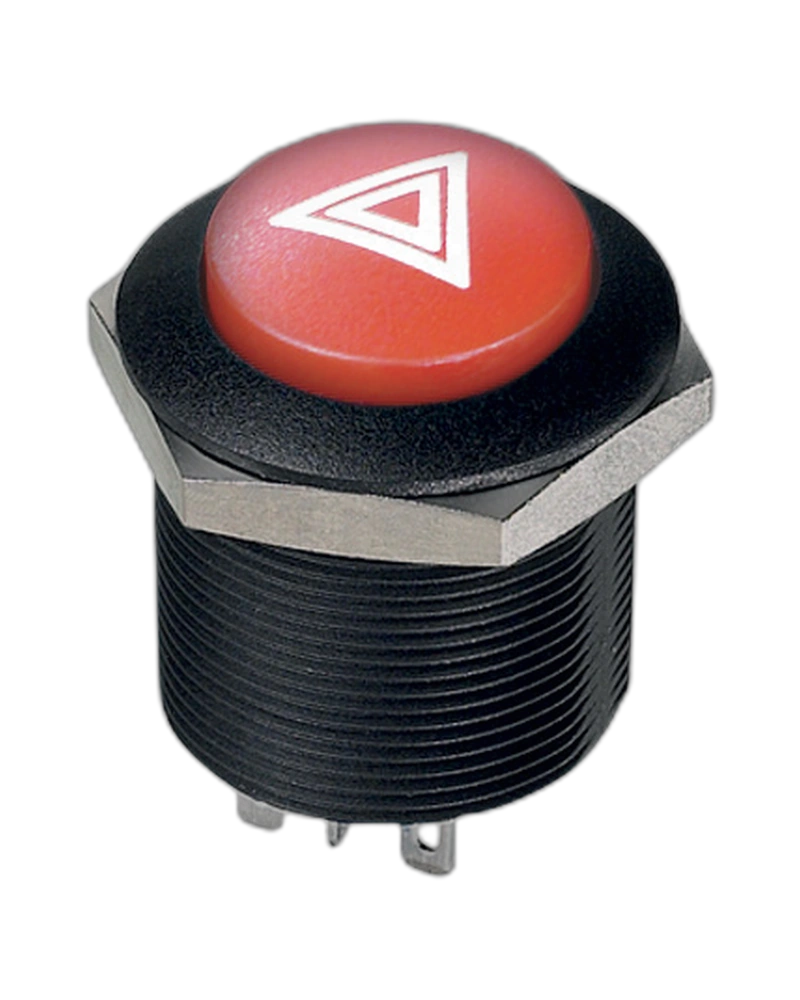

The APEM Panel Switches FPAR1D1262C1213 is a robust autoswitch designed for industrial applications. Featuring IP69K sealing, gold-plated contacts for 200 mA 12 VDC operation, and momentary electrical life of 1 million cycles, this switch ensures reliable performance in demanding environments. Its compact size (2.5 mm travel) and wide temperature range (-40°C to +75°C) make it ideal for harsh industrial settings.
The APEM Panel Switches FPAR1D1262C1213 is a high-reliability autoswitch engineered for industrial control systems. This switch delivers exceptional durability with gold-plated contacts supporting 200 mA 12 VDC loads and momentary electrical life exceeding 1 million cycles. Its IP69K rating ensures resistance to extreme environmental conditions, while the wide operating temperature range (-40°C to +75°C) and robust construction accommodate demanding industrial applications. The switch features a 2.5 mm ± 0.5 mm total travel, 8 N ± 2 N operating force, and 50 mΩ max initial contact resistance, providing precise control with minimal wear in critical systems.
The FPAR1D1262C1213 delivers reliable electrical performance with gold-plated contacts rated for 200 mA 12 VDC. It supports momentary operation with 1 million cycles (gold) or 400,000 cycles (silver), ensuring long-term durability in high-cycle applications. The switch maintains low initial contact resistance (50 mΩ max) and operates within a wide temperature range (-40°C to +75°C).
Engineered for extreme conditions, this switch meets IP69K standards (DIN 40050-9), providing complete protection against dust, water, and high-pressure cleaning. The robust construction withstands harsh industrial environments, including high temperatures and corrosive atmospheres, without compromising performance.
With a total travel of 2.5 mm ± 0.5 mm and operating force of 8 N ± 2 N, the switch ensures smooth and precise actuation. The threaded bushing model (24mm) provides secure mounting while maintaining a lightweight profile, ideal for space-constrained installations.
This autoswitch is ideal for industrial control panels requiring high reliability and environmental resilience. Its features make it suitable for applications such as machinery control, process automation, and equipment with frequent switching demands where durability and minimal maintenance are critical.
| Feature | Specification |
|---|---|
| Insulation resistance | 1 GΩ min. at 500 VDC |
| Dielectric strength | 1,000 Vrms 50 Hz min. Electrical life at full load :- Momentary models : 1 million cycles (gold plated contacts), 400,000 cycles (silver contacts)- Latching models : 200,000 cycles Electrical life at full load :- Momenta |
| Panel thickness | 1(.039) to 18 mm (.708) max. |
| Total travel | 2.5 mm ± 0.5 mm Typical |
| Torque | 3 Nm max. applied to nut Full actuator or symbol illumination Snap-in and threaded bushing models Large but lightweight Pad printed or laser etched symbols Snap-in and threaded bushing models Large but lightweight Pad pr |
| sealing | IP69K according to DIN 40050-9 |
| Operating temperature | -40 °C to +75 °C |
| LED Color | Red,Led Control And No Of Poles:Independent 2 Poles,Led Resistors:12VDC Resistor,Markings:Laser,Model:Threaded Bushing 24mm (0.944in) |
| Max. current/voltage rating with resistive load | - silver contacts (code 2) : 4 A 12 VDC- gold plated contacts (code 4) : 200 mA 12 VDC |
| Electrical Functions | ON OFF |
The APEMPanel Switches FPAR1D1262C1213 is presented using the documented product characteristics available for this model.
| Feature | Specification |
|---|---|
| Insulation resistance | 1 GΩ min. at 500 VDC |
| Dielectric strength | 1,000 Vrms 50 Hz min. Electrical life at full load :- Momentary models : 1 million cycles (gold plated contacts), 400,000 cycles (silver contacts)- Latching models : 200,000 cycles Electrical life at full load :- Momenta |
| Panel thickness | 1(.039) to 18 mm (.708) max. |
| Total travel | 2.5 mm ± 0.5 mm Typical |
| Torque | 3 Nm max. applied to nut Full actuator or symbol illumination Snap-in and threaded bushing models Large but lightweight Pad printed or laser etched symbols Snap-in and threaded bushing models Large but lightweight Pad pr |
| sealing | IP69K according to DIN 40050-9 |
| Operating temperature | -40 °C to +75 °C |
| LED Color | Red,Led Control And No Of Poles:Independent 2 Poles,Led Resistors:12VDC Resistor,Markings:Laser,Model:Threaded Bushing 24mm (0.944in) |
| Max. current/voltage rating with resistive load | - silver contacts (code 2) : 4 A 12 VDC- gold plated contacts (code 4) : 200 mA 12 VDC |
| Electrical Functions | ON OFF |
