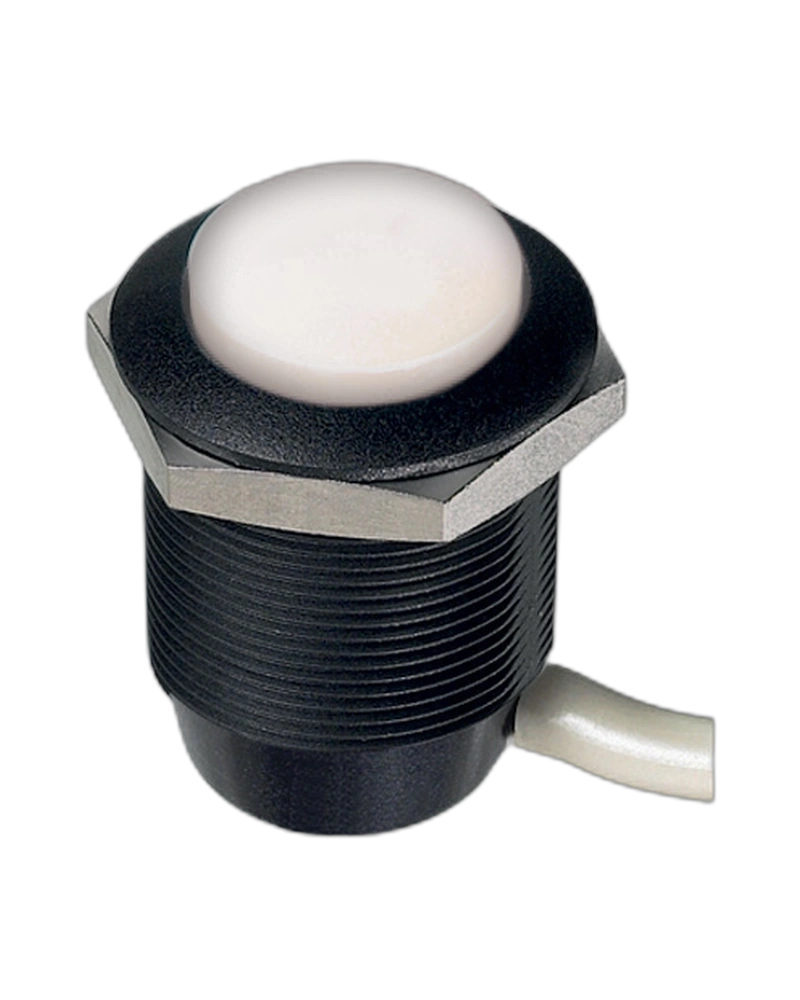

The APEM Panel Switches FPAR1C3272F0X is a Switches and Pushbutton with documented product-specific characteristics including Torque: 3 Nm max. applied to nut Full actuator or symbol illumination Snap-in and threaded bushing models Large but lightweight Pad printed or laser etched symbols Snap-in and threaded bushing models Large but lightweight Pad pr; Insulation resistance: 1 GΩ min. at 500 VDC; Dielectric strength: 1,000 Vrms 50 Hz min. Electrical life at full load :- Momentary models : 1 million cycles (gold plated contacts), 400,000 cycles (silver contacts)- Latching models : 200,000 cycles Electrical life at full load :- Momenta.
| Feature | Specification |
|---|---|
| Force | 2 N |
| Feature | Specification |
|---|---|
| Torque | 3 Nm max. applied to nut Full actuator or symbol illumination Snap-in and threaded bushing models Large but lightweight Pad printed or laser etched symbols Snap-in and threaded bushing models Large but lightweight Pad pr |
| Insulation resistance | 1 GΩ min. at 500 VDC |
| Dielectric strength | 1,000 Vrms 50 Hz min. Electrical life at full load :- Momentary models : 1 million cycles (gold plated contacts), 400,000 cycles (silver contacts)- Latching models : 200,000 cycles Electrical life at full load :- Momenta |
| Panel thickness | 1(.039) to 18 mm (.708) max. |
| Total travel | 2.5 mm ± 0.5 mm Typical |
| Operating temperature | -40 °C to +75 °C |
| LED Color | Red/Green,Led Control And No Of Poles:Independent 1-Pole,Led Resistors:No Resistor Supplied,Markings:No Marking,Model:Threaded Bushing 24mm (0.944in) |
| sealing | IP69K according to DIN 40050-9 |
| Max. current/voltage rating with resistive load | - silver contacts (code 2) : 4 A 12 VDC- gold plated contacts (code 4) : 200 mA 12 VDC |
| Electrical Functions | ON OFF |
