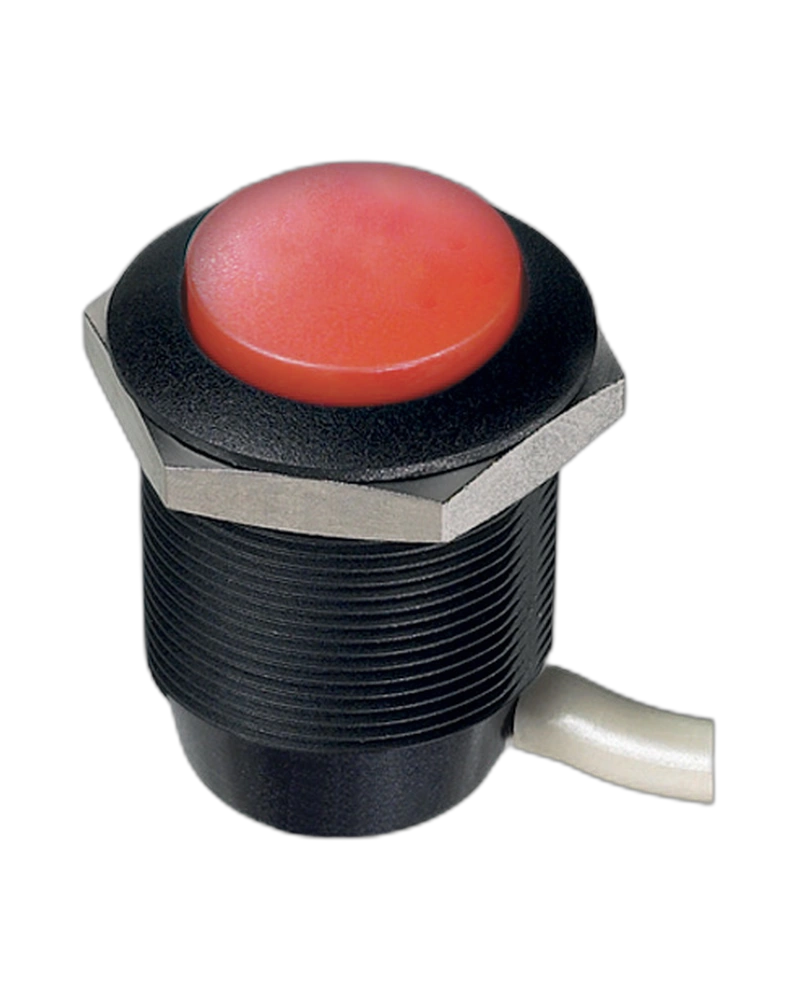

The APEM Panel Switches FPAR1C3262C2X is a robust 1-pole autoswitch designed for industrial applications. Featuring IP69K sealing, gold-plated contacts for 200 mA 12 VDC operation, and 1 million cycles electrical life, this switch ensures reliable performance in demanding environments. Its 2.5 mm travel and -40°C to +75°C operating temperature make it ideal for harsh industrial settings.
The APEM Panel Switches FPAR1C3262C2X is a high-reliability 1-pole autoswitch engineered for industrial control systems. This switch delivers exceptional durability with gold-plated contacts rated for 200 mA 12 VDC, supporting up to 1 million cycles of electrical operation. Its IP69K sealing ensures resistance to extreme environmental conditions, while the -40°C to +75°C operating temperature range allows seamless integration in both cold and hot industrial environments. The switch’s compact design with a 2.5 mm total travel and 8 N operating force provides precise control without compromising on robustness.
The FPAR1C3262C2X operates at 12 VDC with a maximum current rating of 200 mA for gold-plated contacts. It features a 1-pole switch with independent LED control for status indication. The switch supports 24 VDC resistors for LED functionality and includes a red LED indicator for visual confirmation of operation.
Engineered to withstand extreme conditions, this switch maintains performance across a temperature range of -40°C to +75°C. Its IP69K rating ensures robust resistance to dust, water, and harsh industrial environments, making it suitable for applications requiring high durability and reliability.
With a total travel of 2.5 mm ± 0.5 mm and an operating force of 8 N ± 2 N, the switch provides precise actuation with minimal mechanical stress. The threaded bushing model (24mm) ensures secure installation while maintaining a lightweight profile.
The switch delivers up to 1 million cycles for momentary models with gold-plated contacts, ensuring long-term reliability in high-demand applications. Its 1,000 Vrms 50 Hz dielectric strength and 1 GΩ min. insulation resistance further enhance its robustness for critical industrial systems.
| Feature | Specification |
|---|---|
| Insulation resistance | 1 GΩ min. at 500 VDC |
| Dielectric strength | 1,000 Vrms 50 Hz min. Electrical life at full load :- Momentary models : 1 million cycles (gold plated contacts), 400,000 cycles (silver contacts)- Latching models : 200,000 cycles Electrical life at full load :- Momenta |
| Panel thickness | 1(.039) to 18 mm (.708) max. |
| Total travel | 2.5 mm ± 0.5 mm Typical |
| Torque | 3 Nm max. applied to nut Full actuator or symbol illumination Snap-in and threaded bushing models Large but lightweight Pad printed or laser etched symbols Snap-in and threaded bushing models Large but lightweight Pad pr |
| sealing | IP69K according to DIN 40050-9 |
| Operating temperature | -40 °C to +75 °C |
| LED Color | Red,Led Control And No Of Poles:Independent 1-Pole,Led Resistors:24VDC Resistor,Markings:No Marking,Model:Threaded Bushing 24mm (0.944in) |
| Max. current/voltage rating with resistive load | - silver contacts (code 2) : 4 A 12 VDC- gold plated contacts (code 4) : 200 mA 12 VDC |
| Electrical Functions | ON OFF |
The APEMPanel Switches FPAR1C3262C2X is presented using the documented product characteristics available for this model.
| Feature | Specification |
|---|---|
| Insulation resistance | 1 GΩ min. at 500 VDC |
| Dielectric strength | 1,000 Vrms 50 Hz min. Electrical life at full load :- Momentary models : 1 million cycles (gold plated contacts), 400,000 cycles (silver contacts)- Latching models : 200,000 cycles Electrical life at full load :- Momenta |
| Panel thickness | 1(.039) to 18 mm (.708) max. |
| Total travel | 2.5 mm ± 0.5 mm Typical |
| Torque | 3 Nm max. applied to nut Full actuator or symbol illumination Snap-in and threaded bushing models Large but lightweight Pad printed or laser etched symbols Snap-in and threaded bushing models Large but lightweight Pad pr |
| sealing | IP69K according to DIN 40050-9 |
| Operating temperature | -40 °C to +75 °C |
| LED Color | Red,Led Control And No Of Poles:Independent 1-Pole,Led Resistors:24VDC Resistor,Markings:No Marking,Model:Threaded Bushing 24mm (0.944in) |
| Max. current/voltage rating with resistive load | - silver contacts (code 2) : 4 A 12 VDC- gold plated contacts (code 4) : 200 mA 12 VDC |
| Electrical Functions | ON OFF |
