Explore performance details, construction highlights, applications, and technical information in one clear overview.

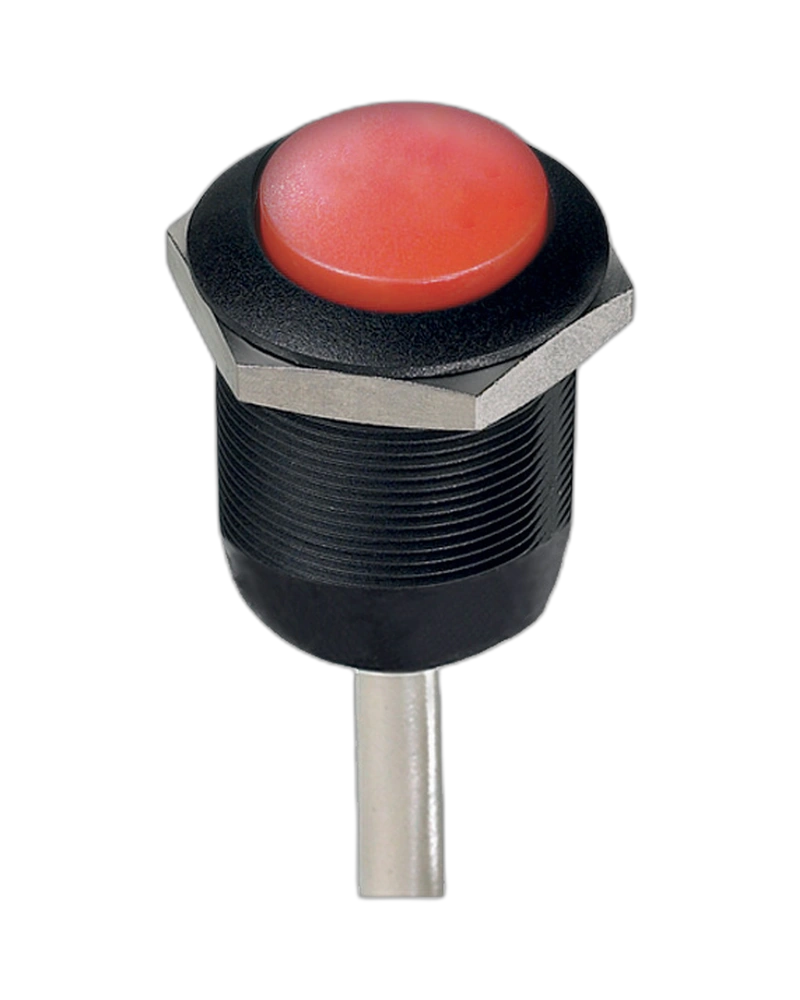

The APEM Panel Switches FPAR1C2262C1X is a robust 1-pole autoswitch designed for industrial applications. Featuring IP69K sealing, gold-plated contacts for 200 mA 12 VDC operation, and momentary electrical life of 1 million cycles, this switch delivers reliable performance in demanding environments. Its 2.5 mm ± 0.5 mm total travel and -40 °C to +75 °C operating temperature ensure precise control and durability.
The APEM Panel Switches FPAR1C2262C1X is a high-reliability 1-pole autoswitch engineered for industrial control systems. This switch combines exceptional environmental resilience with precise electrical performance, making it ideal for applications requiring stringent durability and consistent operation. With IP69K sealing for resistance to harsh conditions and gold-plated contacts supporting 200 mA 12 VDC loads, the FPAR1C2262C1X ensures long-term functionality in extreme temperature ranges (-40 °C to +75 °C) and high-cycle environments.
The FPAR1C2262C1X delivers precise electrical control with a maximum current rating of 200 mA at 12 VDC for gold-plated contacts. It features 1 GΩ min. insulation resistance at 500 VDC and 1,000 Vrms 50 Hz dielectric strength, ensuring robust electrical isolation and safety compliance. The switch supports momentary operation with 1 million cycles of electrical life at full load, ideal for applications requiring frequent switching without degradation.
Engineered for extreme conditions, the switch meets IP69K standards (DIN 40050-9) for complete dust and water resistance. This certification ensures reliable performance in high-moisture, high-temperature, or corrosive environments, such as industrial cleaning processes or marine applications. The operating temperature range of -40 °C to +75 °C further enhances its suitability for outdoor or harsh industrial settings.
With a total travel of 2.5 mm ± 0.5 mm and an operating force of 8 N ± 2 N, the switch provides smooth, consistent actuation. The 2 N actuation force ensures user-friendly operation while maintaining precise mechanical performance. The threaded bushing model (24 mm) offers secure mounting and compatibility with standard industrial hardware.
This switch is ideal for industrial control panels where reliable, low-maintenance switching is critical. Applications include machinery control systems, automation equipment, and environments requiring high-cycle switching without frequent maintenance. Its robust construction and environmental resilience make it suitable for use in food processing, automotive manufacturing, and other industrial sectors.
| Feature | Specification |
|---|---|
| Insulation resistance | 1 GΩ min. at 500 VDC |
| Dielectric strength | 1,000 Vrms 50 Hz min. Electrical life at full load :- Momentary models : 1 million cycles (gold plated contacts), 400,000 cycles (silver contacts)- Latching models : 200,000 cycles Electrical life at full load :- Momenta |
| Panel thickness | 1(.039) to 18 mm (.708) max. |
| Total travel | 2.5 mm ± 0.5 mm Typical |
| Torque | 3 Nm max. applied to nut Full actuator or symbol illumination Snap-in and threaded bushing models Large but lightweight Pad printed or laser etched symbols Snap-in and threaded bushing models Large but lightweight Pad pr |
| sealing | IP69K according to DIN 40050-9 |
| Operating temperature | -40 °C to +75 °C |
| LED Color | Red,Led Control And No Of Poles:Independent 1-Pole,Led Resistors:12VDC Resistor,Markings:No Marking,Model:Threaded Bushing 24mm (0.944in) |
| Max. current/voltage rating with resistive load | - silver contacts (code 2) : 4 A 12 VDC- gold plated contacts (code 4) : 200 mA 12 VDC |
| Electrical Functions | ON OFF |
The APEMPanel Switches FPAR1C2262C1X is presented using the documented product characteristics available for this model.
| Feature | Specification |
|---|---|
| Insulation resistance | 1 GΩ min. at 500 VDC |
| Dielectric strength | 1,000 Vrms 50 Hz min. Electrical life at full load :- Momentary models : 1 million cycles (gold plated contacts), 400,000 cycles (silver contacts)- Latching models : 200,000 cycles Electrical life at full load :- Momenta |
| Panel thickness | 1(.039) to 18 mm (.708) max. |
| Total travel | 2.5 mm ± 0.5 mm Typical |
| Torque | 3 Nm max. applied to nut Full actuator or symbol illumination Snap-in and threaded bushing models Large but lightweight Pad printed or laser etched symbols Snap-in and threaded bushing models Large but lightweight Pad pr |
| sealing | IP69K according to DIN 40050-9 |
| Operating temperature | -40 °C to +75 °C |
| LED Color | Red,Led Control And No Of Poles:Independent 1-Pole,Led Resistors:12VDC Resistor,Markings:No Marking,Model:Threaded Bushing 24mm (0.944in) |
| Max. current/voltage rating with resistive load | - silver contacts (code 2) : 4 A 12 VDC- gold plated contacts (code 4) : 200 mA 12 VDC |
| Electrical Functions | ON OFF |
