The APEM Panel Switches FPAR1C1262E2213 is a robust autoswitch designed for industrial applications. Featuring IP69K sealing, 1 GΩ min. insulation resistance at 500 VDC, and 200,000 cycles for latching models, this switch ensures reliable operation in demanding environments. Ideal for high-reliability systems requiring precise electrical control.
The APEM Panel Switches FPAR1C1262E2213 is a high-performance autoswitch engineered for industrial automation and control systems. With a wide operating temperature range from -40°C to +75°C and IP69K protection against harsh conditions, this switch delivers exceptional durability and reliability. Its latching or momentary operation options, combined with gold-plated or silver contacts, provide flexibility for diverse electrical applications while maintaining low contact resistance and high electrical life. The switch is designed for seamless integration into critical systems where consistent performance and long service life are essential.
The FPAR1C1262E2213 delivers precise electrical control with a maximum current rating of 4 A at 12 VDC for silver contacts and 200 mA for gold-plated contacts. It maintains low contact resistance (50 mΩ max.) and high insulation resistance (1 GΩ min. at 500 VDC), ensuring reliable operation under demanding electrical loads. The switch supports both momentary and latching functions, with electrical life ratings of 1 million cycles for momentary models and 200,000 cycles for latching models.
Engineered for extreme conditions, this switch meets IP69K standards (DIN 40050-9), providing protection against dust, water, and high-pressure cleaning. The operating temperature range spans from -40°C to +75°C, making it suitable for both cold and hot industrial environments. Its robust construction ensures consistent performance in harsh settings without compromising safety or functionality.
With a total travel of 2.5 mm ± 0.5 mm and an operating force of 8 N ± 2 N, the switch is designed for reliable mechanical operation. The threaded bushing model (24mm) offers secure mounting while maintaining a lightweight profile. The switch supports up to 200,000 cycles for latching models, ensuring long-term reliability in high-traffic applications.

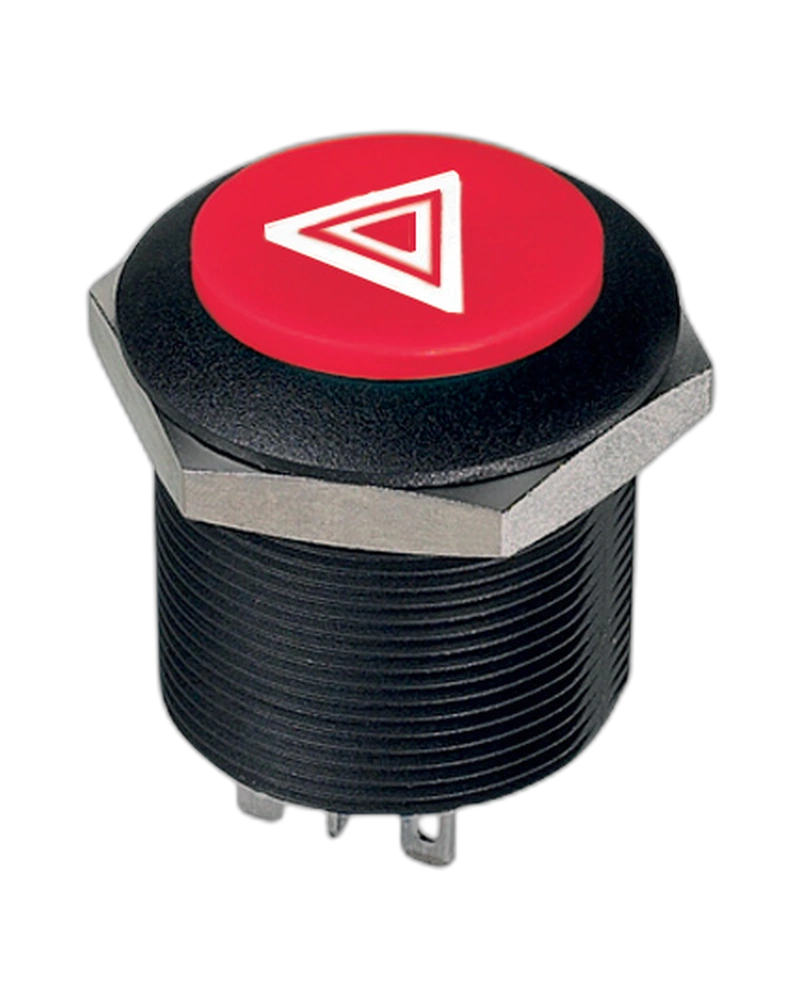

The FPAR1C1262E2213 is ideal for industrial control panels, automation systems, and machinery requiring precise switching. Its 24VDC resistor and laser-etched symbols with hazard warnings facilitate clear identification and compliance with safety standards. The switch’s compatibility with both momentary and latching operations allows for flexible integration into systems where rapid or sustained control is needed.
| Feature | Specification |
|---|---|
| Insulation resistance | 1 GΩ min. at 500 VDC |
| Dielectric strength | 1,000 Vrms 50 Hz min. Electrical life at full load :- Momentary models : 1 million cycles (gold plated contacts), 400,000 cycles (silver contacts)- Latching models : 200,000 cycles Electrical life at full load :- Momenta |
| Panel thickness | 1(.039) to 18 mm (.708) max. |
| Total travel | 2.5 mm ± 0.5 mm Typical |
| Torque | 3 Nm max. applied to nut Full actuator or symbol illumination Snap-in and threaded bushing models Large but lightweight Pad printed or laser etched symbols Snap-in and threaded bushing models Large but lightweight Pad pr |
| sealing | IP69K according to DIN 40050-9 |
| Operating temperature | -40 °C to +75 °C |
| LED Color | White,Led Control And No Of Poles:Independent 1-Pole,Led Resistors:24VDC Resistor,Markings:Laser,Model:Threaded Bushing 24mm (0.944in) |
| Max. current/voltage rating with resistive load | - silver contacts (code 2) : 4 A 12 VDC- gold plated contacts (code 4) : 200 mA 12 VDC |
| Electrical Functions | ON OFF |
The APEMPanel Switches FPAR1C1262E2213 is presented using the documented product characteristics available for this model.
| Feature | Specification |
|---|---|
| Insulation resistance | 1 GΩ min. at 500 VDC |
| Dielectric strength | 1,000 Vrms 50 Hz min. Electrical life at full load :- Momentary models : 1 million cycles (gold plated contacts), 400,000 cycles (silver contacts)- Latching models : 200,000 cycles Electrical life at full load :- Momenta |
| Panel thickness | 1(.039) to 18 mm (.708) max. |
| Total travel | 2.5 mm ± 0.5 mm Typical |
| Torque | 3 Nm max. applied to nut Full actuator or symbol illumination Snap-in and threaded bushing models Large but lightweight Pad printed or laser etched symbols Snap-in and threaded bushing models Large but lightweight Pad pr |
| sealing | IP69K according to DIN 40050-9 |
| Operating temperature | -40 °C to +75 °C |
| LED Color | White,Led Control And No Of Poles:Independent 1-Pole,Led Resistors:24VDC Resistor,Markings:Laser,Model:Threaded Bushing 24mm (0.944in) |
| Max. current/voltage rating with resistive load | - silver contacts (code 2) : 4 A 12 VDC- gold plated contacts (code 4) : 200 mA 12 VDC |
| Electrical Functions | ON OFF |
