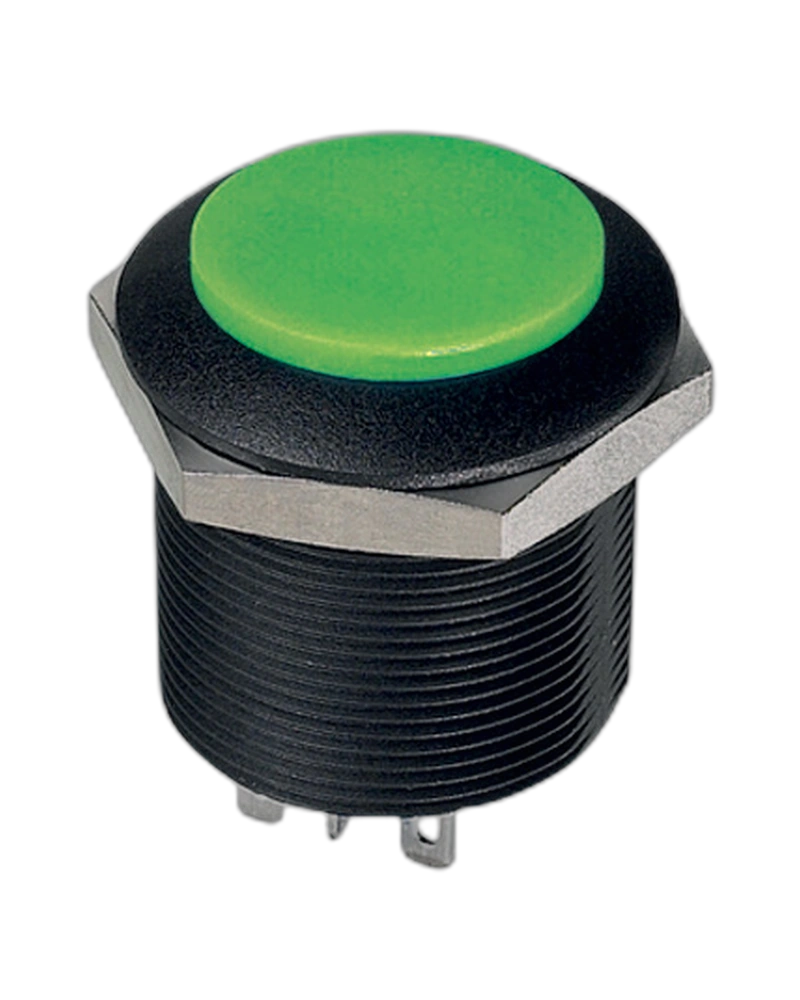

FPAP3D1232B2X FPAP3D1232B2X Panel Switch: Reliable push-button switch with normally open configuration and solder lug terminals for secure electrical connections. Ideal for various applications. Select Quantity
| Feature | Specification |
|---|---|
| force | 8 N |
| Feature | Specification |
|---|---|
| Insulation resistance | 1 GΩ min. at 500 VDC |
| Dielectric strength | 1,000 Vrms 50 Hz min. Electrical life at full load :- Momentary models : 1 million cycles (gold plated contacts), 400,000 cycles (silver contacts)- Latching models : 200,000 cycles Electrical life at full load :- Momenta |
| Panel thickness | 1(.039) to 18 mm (.708) max. |
| Total travel | 2.5 mm ± 0.5 mm Typical |
| Torque | 3 Nm max. applied to nut Full actuator or symbol illumination Snap-in and threaded bushing models Large but lightweight Pad printed or laser etched symbols Snap-in and threaded bushing models Large but lightweight Pad pr |
| sealing | IP69K according to DIN 40050-9 |
| Operating temperature | -40 °C to +75 °C |
| LED Color | Green,Led Control And No Of Poles:Independent 2 Poles,Led Resistors:24VDC Resistor,Markings:No Marking,Model:Threaded Bushing 24mm (0.944in) |
| Max. current/voltage rating with resistive load | - silver contacts (code 2) : 4 A 12 VDC- gold plated contacts (code 4) : 200 mA 12 VDC |
| Electrical Functions | Normally Open (NO) |
