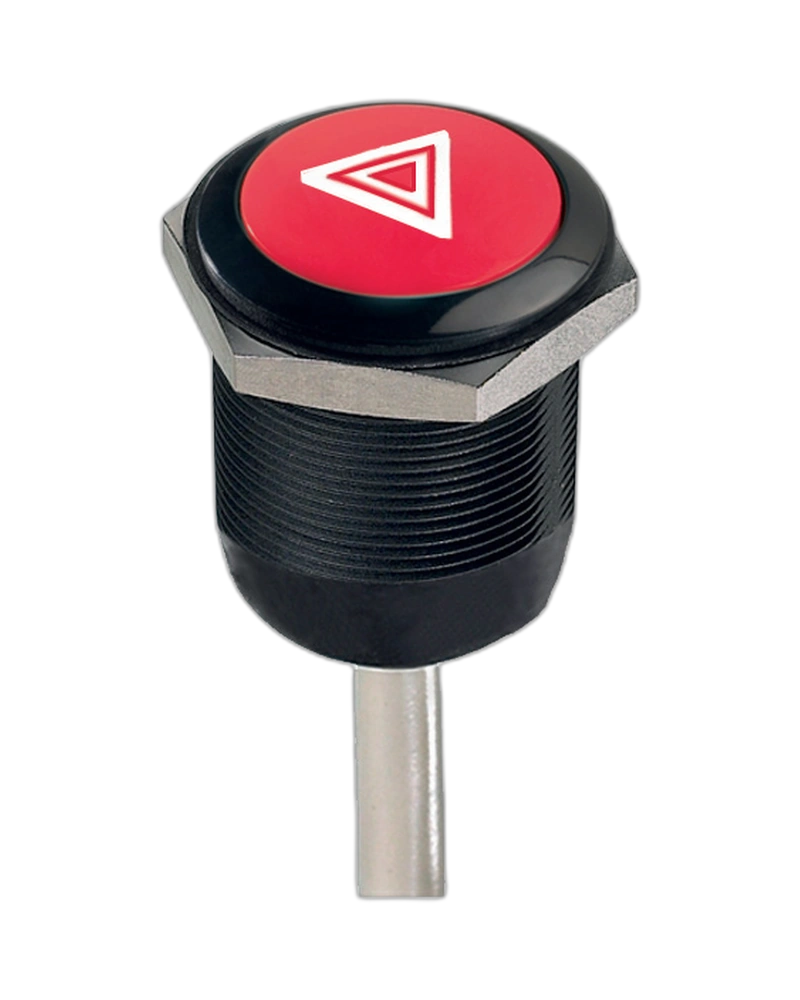

The APEM Panel Switches FPAF3B2262X0113 is a robust 2-pole autoswitch designed for industrial applications. Featuring IP69K sealing, 1 GΩ insulation resistance at 500 VDC, and 200,000 cycles for latching models, this switch ensures reliable operation in harsh environments. Ideal for demanding electrical systems requiring high durability and safety compliance.
The APEM Panel Switches FPAF3B2262X0113 is a high-reliability 2-pole autoswitch engineered for industrial use. With a robust construction that includes IP69K sealing per DIN 40050-9, this switch delivers exceptional performance in extreme conditions. It features a momentary operation mode with 1 million cycles for gold-plated contacts and 400,000 cycles for silver contacts, ensuring long-term durability. The switch operates within a temperature range of -40°C to +75°C, making it suitable for applications requiring consistent performance across a wide environmental spectrum.
The APEM Panel Switches FPAF3B2262X0113 delivers precise electrical performance with a 1 GΩ minimum insulation resistance at 500 VDC. It supports 2-pole normally open (NO) operation and has a max. current rating of 4 A at 12 VDC for silver contacts. The switch maintains low contact resistance (50 mΩ max.) and features a high dielectric strength of 1,000 Vrms 50 Hz.
Engineered for extreme conditions, this switch meets IP69K standards (DIN 40050-9) ensuring protection against dust, water, and high-pressure cleaning. The operating temperature range spans from -40°C to +75°C, allowing reliable performance in both freezing and high-heat environments without degradation.
With a total travel of 2.5 mm ± 0.5 mm and an operating force of 8 N ± 2 N, the switch is designed for consistent mechanical operation. The latching models provide 200,000 cycles of electrical life at full load, while momentary models achieve 1 million cycles for gold-plated contacts.
The switch features a threaded bushing model with a 24 mm (0.944 in) diameter, ensuring secure mounting. Its lightweight design (large but lightweight) and pad printed or laser etched symbols facilitate easy identification and installation in industrial panels without compromising structural integrity.
| Feature | Specification |
|---|---|
| Insulation resistance | 1 GΩ min. at 500 VDC |
| Dielectric strength | 1,000 Vrms 50 Hz min. Electrical life at full load :- Momentary models : 1 million cycles (gold plated contacts), 400,000 cycles (silver contacts)- Latching models : 200,000 cycles Electrical life at full load :- Momenta |
| Panel thickness | 1(.039) to 18 mm (.708) max. |
| Total travel | 2.5 mm ± 0.5 mm Typical |
| Torque | 3 Nm max. applied to nut Full actuator or symbol illumination Snap-in and threaded bushing models Large but lightweight Pad printed or laser etched symbols Snap-in and threaded bushing models Large but lightweight Pad pr |
| sealing | IP69K according to DIN 40050-9 |
| Operating temperature | -40 °C to +75 °C |
| LED Color | Non-Illuminated,Led Control And No Of Poles:Non-Illuminated 2 Poles,Led Resistors:No Resistor Supplied,Markings:White Pad Printing,Model:Threaded Bushing 24mm (0.944in) |
| Max. current/voltage rating with resistive load | - silver contacts (code 2) : 4 A 12 VDC- gold plated contacts (code 4) : 200 mA 12 VDC |
| Electrical Functions | Normally Open (NO) |
The APEMPanel Switches FPAF3B2262X0113 is presented using the documented product characteristics available for this model.
| Feature | Specification |
|---|---|
| Insulation resistance | 1 GΩ min. at 500 VDC |
| Dielectric strength | 1,000 Vrms 50 Hz min. Electrical life at full load :- Momentary models : 1 million cycles (gold plated contacts), 400,000 cycles (silver contacts)- Latching models : 200,000 cycles Electrical life at full load :- Momenta |
| Panel thickness | 1(.039) to 18 mm (.708) max. |
| Total travel | 2.5 mm ± 0.5 mm Typical |
| Torque | 3 Nm max. applied to nut Full actuator or symbol illumination Snap-in and threaded bushing models Large but lightweight Pad printed or laser etched symbols Snap-in and threaded bushing models Large but lightweight Pad pr |
| sealing | IP69K according to DIN 40050-9 |
| Operating temperature | -40 °C to +75 °C |
| LED Color | Non-Illuminated,Led Control And No Of Poles:Non-Illuminated 2 Poles,Led Resistors:No Resistor Supplied,Markings:White Pad Printing,Model:Threaded Bushing 24mm (0.944in) |
| Max. current/voltage rating with resistive load | - silver contacts (code 2) : 4 A 12 VDC- gold plated contacts (code 4) : 200 mA 12 VDC |
| Electrical Functions | Normally Open (NO) |
