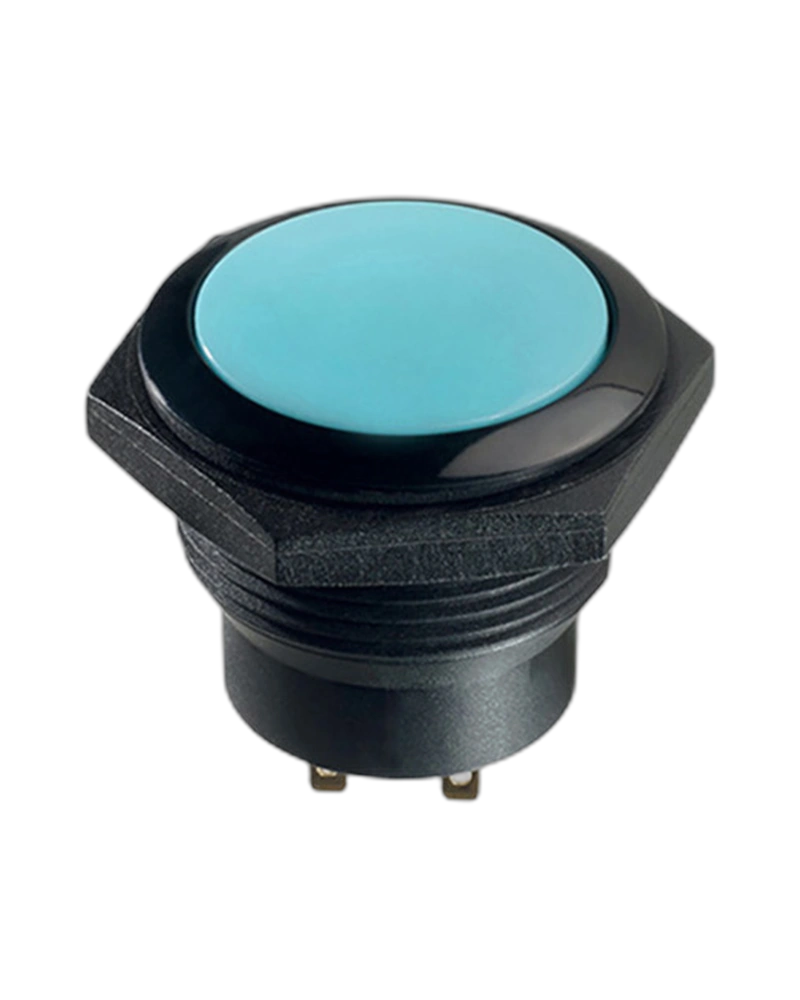

The APEM Panel Switches FP0298 is a robust autoswitch designed for industrial applications. This snap-in and threaded bushing model offers precise operation with a total travel of 2.8 mm ± 0.5 mm, 8 N operating force, and 1 GΩ insulation resistance at 500 VDC. Ideal for reliable control in demanding environments.
The APEM Panel Switches FP0298 is a high-performance autoswitch within APEM's FP 30 mm series, engineered for industrial control systems. This panel switch features a 30 mm diameter bushing and supports both momentary and latching operation with a total travel of 2.8 mm ± 0.5 mm. Designed for durability, it delivers 1 million cycles for momentary models and 200,000 cycles for latching models under standard operating conditions. The switch operates within a temperature range of -40 °C to +75 °C, ensuring reliable performance in extreme environments. With a maximum current rating of 4 A at 12 VDC for silver contacts and 200 mA for gold-plated contacts, the FP0298 provides precise control for a wide range of industrial applications.
The FP0298 delivers reliable electrical performance with a minimum insulation resistance of 1 GΩ at 500 VDC and dielectric strength of 1,000 Vrms 50 Hz. It supports both silver contacts (4 A at 12 VDC) and gold-plated contacts (200 mA at 12 VDC), ensuring compatibility with a variety of industrial loads while maintaining low contact resistance (50 mΩ max).
Engineered for industrial use, the FP0298 features a total travel of 2.8 mm ± 0.5 mm and an operating force of 8 N ± 2 N. It withstands 1 million cycles for momentary models and 200,000 cycles for latching models, providing long-term reliability in high-traffic applications.
Operating within a temperature range of -40 °C to +75 °C, the FP0298 is suitable for harsh environments. Its robust construction ensures consistent performance across extreme conditions, making it ideal for outdoor or high-temperature industrial settings.
The FP0298 includes fully-illuminated plunger or laser-etched symbols, enhancing visibility in low-light conditions. Pad printed or laser etched symbols ensure clear identification without compromising durability.
| Feature | Specification |
|---|---|
| Panel thickness | - Snap-in version : 1.5 (.059) to 2 mm (.078) with panel gasket 2 (.078) to 2.5 mm (.885) without panel gasket- Threaded bushing version : 1(.039) to 9 mm (.354) max. |
| Total travel | 2.8 mm ± 0.5 mm Typical |
| Torque | 2 Nm max. applied to nut Low level or mechanical life :- Momentary models : 1 million cycles- Latching models : 200,000 cycles |
| Insulation resistance | 1 GΩ min. at 500 VDC |
| Dielectric strength | 1,000 Vrms 50 Hz min. Electrical life at full load : - Momentary models : 1 million cycles (gold plated contacts) 400,000 cycles (silver contacts) - Latching models : 200,000 cycles Electrical life at full load : - Momen |
| Operating temperature | -40 °C to +75 °C Full actuator or symbol illumination Snap-in and threaded bushing models Large but lightweight Pad printed or laser etched symbols Snap-in and threaded bushing models Large but lightweight Pad printed or |
| Max. current/voltage rating with resistive load | - silver contacts (code 2) : 4 A 12 VDC - gold plated contacts (code 4) : 200 mA 12 VDC |
The APEMPanel Switches FP0298 is presented using the documented product characteristics available for this model.
| Feature | Specification |
|---|---|
| Panel thickness | - Snap-in version : 1.5 (.059) to 2 mm (.078) with panel gasket 2 (.078) to 2.5 mm (.885) without panel gasket- Threaded bushing version : 1(.039) to 9 mm (.354) max. |
| Total travel | 2.8 mm ± 0.5 mm Typical |
| Torque | 2 Nm max. applied to nut Low level or mechanical life :- Momentary models : 1 million cycles- Latching models : 200,000 cycles |
| Insulation resistance | 1 GΩ min. at 500 VDC |
| Dielectric strength | 1,000 Vrms 50 Hz min. Electrical life at full load : - Momentary models : 1 million cycles (gold plated contacts) 400,000 cycles (silver contacts) - Latching models : 200,000 cycles Electrical life at full load : - Momen |
| Operating temperature | -40 °C to +75 °C Full actuator or symbol illumination Snap-in and threaded bushing models Large but lightweight Pad printed or laser etched symbols Snap-in and threaded bushing models Large but lightweight Pad printed or |
| Max. current/voltage rating with resistive load | - silver contacts (code 2) : 4 A 12 VDC - gold plated contacts (code 4) : 200 mA 12 VDC |
