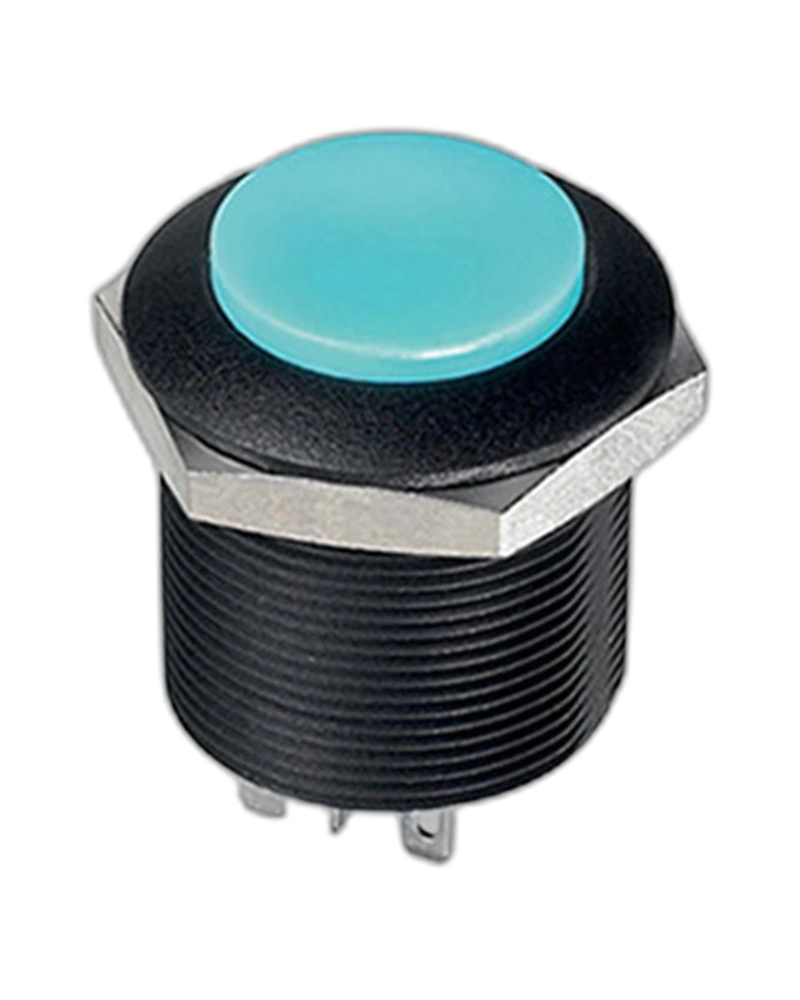

The APEM Panel Switches FP 24 mm is a Switches and Pushbutton with documented product-specific characteristics including Panel thickness: 1(.039) to 18 mm (.708) max.; Total travel: 2.5 mm ± 0.5 mm Typical; Insulation resistance: 1 GΩ min. at 500 VDC.
FP 24 mm FPAF3C1492E1X Select Quantity
| Feature | Specification |
|---|---|
| force | 8 N |
| Feature | Specification |
|---|---|
| Panel thickness | 1(.039) to 18 mm (.708) max. |
| Total travel | 2.5 mm ± 0.5 mm Typical |
| Insulation resistance | 1 GΩ min. at 500 VDC |
| Dielectric strength | 1,000 Vrms 50 Hz min. Electrical life at full load :- Momentary models : 1 million cycles (gold plated contacts), 400,000 cycles (silver contacts)- Latching models : 200,000 cycles Electrical life at full load :- Momenta |
| Torque | 3 Nm max. applied to nut Full actuator or symbol illumination Snap-in and threaded bushing models Large but lightweight Pad printed or laser etched symbols Snap-in and threaded bushing models Large but lightweight Pad pr |
| Operating temperature | -40 °C to +75 °C |
| sealing | IP69K according to DIN 40050-9 |
| Max. current/voltage rating with resistive load | - silver contacts (code 2) : 4 A 12 VDC- gold plated contacts (code 4) : 200 mA 12 VDC |
| Electrical Functions | Normally Open (NO) |
