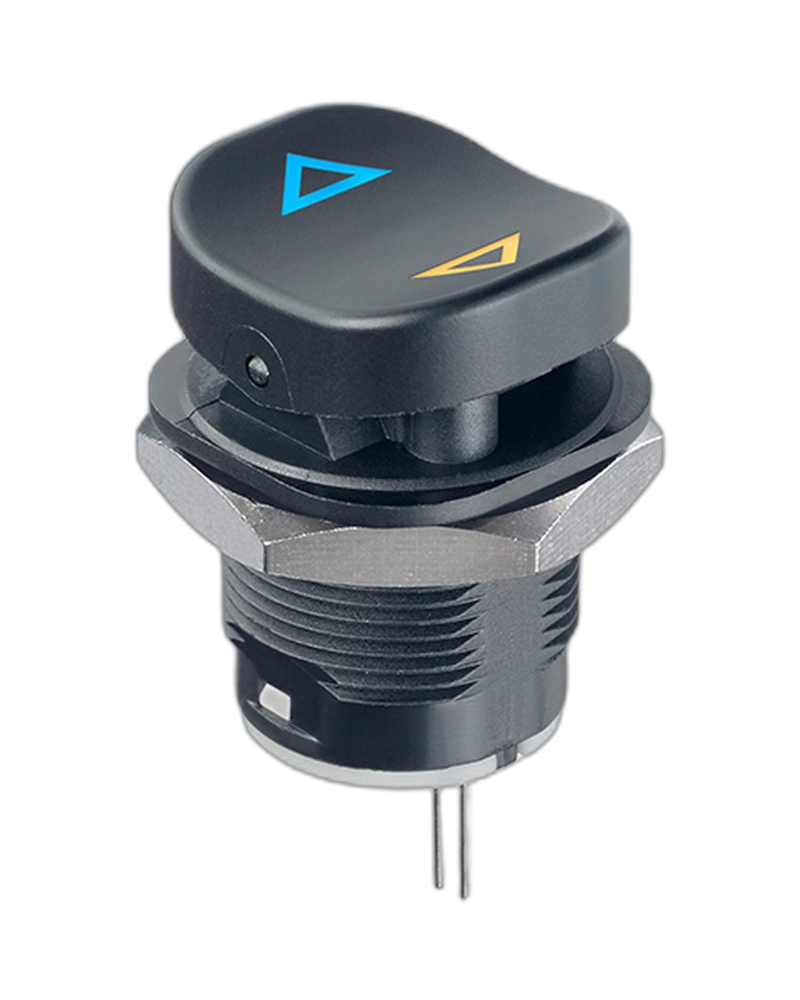

Panel Switches FNRCM4FSS2N2X09XXXX10

FNRCM4FSS2N2X09XXXX10 3-position rocker switch for precise forward and reverse control SIL2 compatible for safety-critical applications IP69K-rated for extreme durability FNR FNRCM4FSS2N2X09XXXX10 3-position rocker switch for precise forward and reverse control SIL2 compatible for safety-critical applications IP69K-rated for extreme durability FNR FNRCF4SXX2X 3-position rocker switch for precise forward and reverse control SIL2 compatible for safety-critical applications IP69K-rated for extreme durability FNRCF4SXX2X FNR FNRCF4FSS2N2XWRX53XPM 3-position rocker switch for precise forward and reverse control SIL2 compatible for safety-critical applications IP69K-rated for extreme durability FNRCF4FSS2N2XWRX53XPM FNR FNRCF4CXX2N1XWRX53XPM 3-position rocker switch for precise forward and reverse control SIL2 compatible for safety-critical applications IP69K-rated for extreme durability FNRCF4CXX2N1XWRX53XPM FNR FNRCF4CNN2N2X09XXXX10 3-position rocker switch for precise forward and reverse control SIL2 compatible for safety-critical applications IP69K-rated for extreme durability FNRCF4CNN2N2X09XXXX10 FNR FNRC64SXX2X 3-position rocker switch for precise forward and reverse control SIL2 compatible for safety-critical applications IP69K-rated for extreme durability FNRC64SXX2X FNR FNRC64FXX2X 3-position rocker switch for precise forward and reverse control SIL2 compatible for safety-critical applications IP69K-rated for extreme durability FNRC64FXX2X FNR FNRC64FNR2SXX10XXXXPM Markings : No Marking Terminals : Flying Leads Side A Leds : LED 12V Blue FNRC64FNR2SXX10XXXXPM Markings : No Marking Terminals : Flying Leads Side A Leds : LED 12V Blue FNR FNRC64FLE2X2XPMX09XPL Markings : Laser Terminals : Flying Leads Side A Leds : LED 24V Yellow FNRC64FLE2X2XPMX09XPL Markings : Laser Side A Leds : LED 24V Yellow FNR FNRCM4FDR2NXXPMXPLXPL Markings : No Marking Terminals : Flying Leads Side A Leds : LED 12V Red FNRCM4FDR2NXXPMXPLXPL Side A Leds : LED 12V Red FNR FNRCM4SJN2XXXWRXPMXPL Markings : No Marking Terminals : Solder Lug Side A Leds : LED 24V Red FNRCM4SJN2XXXWRXPMXPL Terminals : Solder Lug Side A Leds : LED 24V Red FNR FNRC64FEE2NXXWRXPLXWR Markings : No Marking Terminal

Key Features

• Operating force: 5 N ±1 Mechanical life: 1,000,000 cycles
• Insulation resistance: >10 Gohms at 500 VDC
• Dielectric strength: 1000 Vrms 50 Hz min.
• Electrical life: 1.000.000 cycles at 100 mA , 100.000 cycles at 1 A Current rating with resistive load: 0.03 to 1 A
• Initial contact resistance: <100 mohms
• Operating temperature: -40 °C to +85 °C (-40 °F to +185 °F) Panel sealing IP69K according to DIN 40050-9 Panel sealing IP69K according to DIN 40050-9
• Panel sealing IP69K according to DIN 40050-9
• Datasheet 3D CAD Files Name Last Updated File Type File Size rocker_switches_serie_FNR 16/08/2024
• Case: PBT
• Easy to install Excellent front panel sealing Backlit logos
• Excellent front panel sealing Backlit logos
• Backlit logos

Technical Specifications
