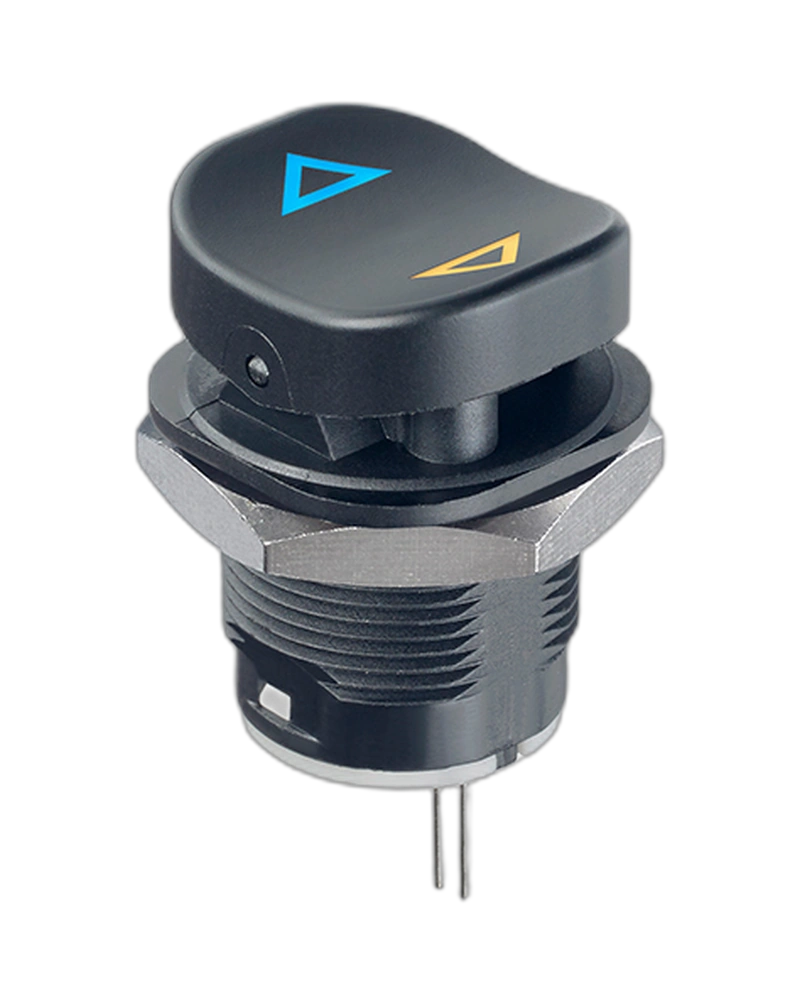

FNRCF4CXX2N1XWRX53XPM Easy-to-use rocker switch for forward and reverse control, ensuring user comfort and maximum efficiency. Ideal for intuitive operation. Select Quantity
| Feature | Specification |
|---|---|
| Total travel | ± 15°. Operating force at center: 5 N ± 1 Mechanical life: 1.000.000 cycles |
| force | 5 N |
| Feature | Specification |
|---|---|
| Operating force | 5 N ±1 Mechanical life: 1,000,000 cycles |
| Insulation resistance | >10 Gohms at 500 VDC |
| Dielectric strength | 1000 Vrms 50 Hz min. |
| Electrical life | 1.000.000 cycles at 100 mA , 100.000 cycles at 1 A Current rating with resistive load: 0.03 to 1 A |
| Operating temperature | -40 °C to +85 °C (-40 °F to +185 °F) Panel sealing IP69K according to DIN 40050-9 Panel sealing IP69K according to DIN 40050-9 |
| Electrical Functions | ON ON ON · |
