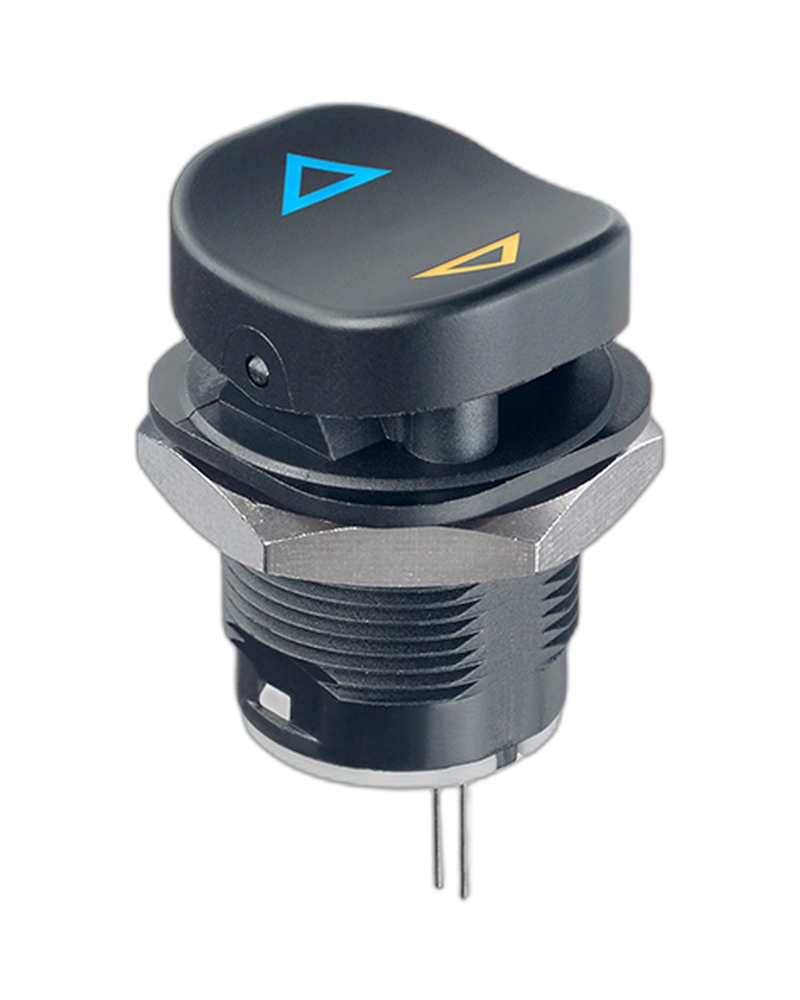

FNR FNRCF4CEF2X2X10XXXXWR Versatile FNRCF4CEF2X2X10XXXXWR Panel Switch with ON ON ON configuration and flying leads connector for easy installation and reliable electrical control. Select Quantity
| Feature | Specification |
|---|---|
| Initial contact resistance | 10 Gohms at 500 VDC |
| Feature | Specification |
|---|---|
| Blue | 20 mA 3.3 V 4 V |
| Green | 20 mA 2.1 V 2.5 V |
| Red | 20 mA 1.9 V 2.5 V |
| Yellow | 20 mA 2 V 2.5 V |
| White | 20 mA 3.3 V 4 V |
| Red/green | 20 mA Red: 1.9 V / green: 2.1 V 2.5 V |
| 6 VDC | A B C M R 1 |
| 12 VDC | D E F N S 2 |
| 24 VDC | J K L P T 3 |
| X09 | X10 XPL XWR X53 XPM |
| LED color | Forward current Typ. forward voltage Max. forward voltage |
| No resistor | U V W Y Z - |
| Area | A Area M |
| Torque | 1Nm min. 2Nm max. applied to nut |
| force | 5 N |
| Feature | Specification |
|---|---|
| Initial contact resistance | 10 Gohms at 500 VDC |
| Feature | Specification |
|---|---|
| Terminals | Flying Leads,Side A Leds:LED 12V Green,Side B Leds:LED 12V Yellow,Area A Symbols:Down Motion,Actuator Shape:Curved |
| Insulation resistance | >10 Gohms at 500 VDC |
| Dielectric strength | 1000 Vrms 50 Hz min. |
| Electrical life | 1.000.000 cycles at 100 mA , 100.000 cycles at 1 A Current rating with resistive load: 0.03 to 1 A |
| Operating temperature | -40 °C to +85 °C (-40 °F to +185 °F) Panel sealing IP69K according to DIN 40050-9 Panel sealing IP69K according to DIN 40050-9 |
| Operating force | 5 N ±1 Mechanical life: 1,000,000 cycles |
| Electrical Functions | ON ON ON |
| Feature | Specification |
|---|---|
| Blue | 20 mA 3.3 V 4 V |
| Green | 20 mA 2.1 V 2.5 V |
| Red | 20 mA 1.9 V 2.5 V |
| Yellow | 20 mA 2 V 2.5 V |
| White | 20 mA 3.3 V 4 V |
| Red/green | 20 mA Red: 1.9 V / green: 2.1 V 2.5 V |
| Torque | 1Nm min. 2Nm max. applied to nut |
