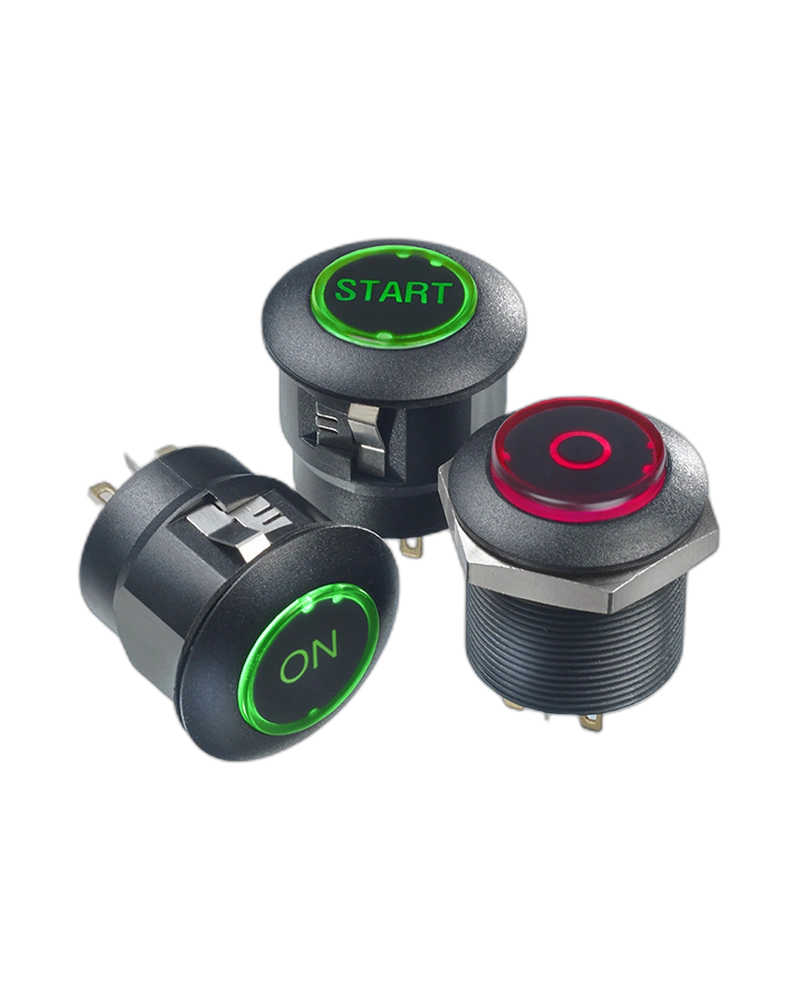

The APEM Panel Switches FDBP3C1282F24 is a robust, sealed autoswitch designed for industrial applications. This snap-in and threaded bushing model features IP69K sealing (for threaded versions), 2.5 mm ± 0.5 mm total travel, 8 N ± 2 N operating force, and supports 1 million cycles for momentary models with gold-plated contacts. Ideal for demanding environments requiring high reliability and electrical safety.
The APEM Panel Switches FDBP3C1282F24 is a high-reliability autoswitch engineered for industrial use, combining robust construction with precise electrical performance. This product offers two mounting options—snap-in and threaded bushing—both featuring IP69K sealing (for threaded versions) and IP54 protection (with panel gasket and 2 mm panel thickness). With a total travel of 2.5 mm ± 0.5 mm and operating force of 8 N ± 2 N, it delivers consistent performance in harsh conditions. The switch supports up to 1 million cycles for momentary models with gold-plated contacts, ensuring long-term durability in critical applications where electrical safety and mechanical resilience are paramount.
The FDBP3C1282F24 delivers high electrical safety standards with a minimum insulation resistance of 1 GΩ at 500 VDC and a dielectric strength of 1,000 Vrms 50 Hz. It supports 4 A 12 VDC for silver contacts and 200 mA 12 VDC for gold-plated contacts, ensuring compatibility with a range of industrial loads while maintaining reliability under demanding conditions.
Engineered for extreme environments, the threaded bushing version meets IP69K standards (DIN 40050-9) for high-pressure and high-temperature applications. The snap-in version provides IP54 protection with a 2 mm panel thickness and panel gasket, making it suitable for both indoor and outdoor industrial settings where dust and moisture resistance are critical.
With a total travel of 2.5 mm ± 0.5 mm and operating force of 8 N ± 2 N, the switch ensures precise and repeatable actuation. The double icon actuator design allows for intuitive operation, while the lightweight construction reduces installation strain without compromising structural integrity.
The FDBP3C1282F24 offers exceptional mechanical life—1 million cycles for momentary models and 200,000 cycles for latching models—ensuring extended service life even in high-traffic industrial environments. Its sealed construction and robust materials prevent wear and tear from environmental factors, maintaining performance over time.
| Feature | Specification |
|---|---|
| Panel thickness | - Snap-in version : 1.5 (.059) to 2 mm (.078) with panel gasket 2 (.078) to 2.5 mm (.885) without panel gasket - Threaded bushing version :1(.039) to 18 mm (.708) max. |
| Total travel | 2.5 mm ± 0.5 mm Typical |
| Torque | 3 Nm max. applied to nut Double icon actuator Snap-in and threaded bushing models Large but lightweight Sealed to IP69K (threaded bushing version) Snap-in and threaded bushing models Large but lightweight Sealed to IP69K |
| Insulation resistance | 1 GΩ min. at 500 VDC |
| Dielectric strength | 1,000 Vrms 50 Hz min. Electrical life at full load :- Momentary models : 1 million cycles (gold plated contacts), 400,000 cycles (silver contacts)- Latching models : 200,000 cycles Electrical life at full load :- Momenta |
| sealing | - Threaded bushing version : IP69K according to DIN 40050-9- Snap-in version : IP54 according to IEC 60529 with panel gasket and 2 mm panel thickness |
| Operating temperature | -40 °C to +75 °C |
| Max. current/voltage rating with resistive load | - silver contacts (code 2) : 4 A 12 VDC- gold plated contacts (code 4) : 200 mA 12 VDC |
| Electrical Functions | Normally Open (NO) |
The APEMPanel Switches FDBP3C1282F24 is presented using the documented product characteristics available for this model.
| Feature | Specification |
|---|---|
| Panel thickness | - Snap-in version : 1.5 (.059) to 2 mm (.078) with panel gasket 2 (.078) to 2.5 mm (.885) without panel gasket - Threaded bushing version :1(.039) to 18 mm (.708) max. |
| Total travel | 2.5 mm ± 0.5 mm Typical |
| Torque | 3 Nm max. applied to nut Double icon actuator Snap-in and threaded bushing models Large but lightweight Sealed to IP69K (threaded bushing version) Snap-in and threaded bushing models Large but lightweight Sealed to IP69K |
| Insulation resistance | 1 GΩ min. at 500 VDC |
| Dielectric strength | 1,000 Vrms 50 Hz min. Electrical life at full load :- Momentary models : 1 million cycles (gold plated contacts), 400,000 cycles (silver contacts)- Latching models : 200,000 cycles Electrical life at full load :- Momenta |
| sealing | - Threaded bushing version : IP69K according to DIN 40050-9- Snap-in version : IP54 according to IEC 60529 with panel gasket and 2 mm panel thickness |
| Operating temperature | -40 °C to +75 °C |
| Max. current/voltage rating with resistive load | - silver contacts (code 2) : 4 A 12 VDC- gold plated contacts (code 4) : 200 mA 12 VDC |
| Electrical Functions | Normally Open (NO) |
