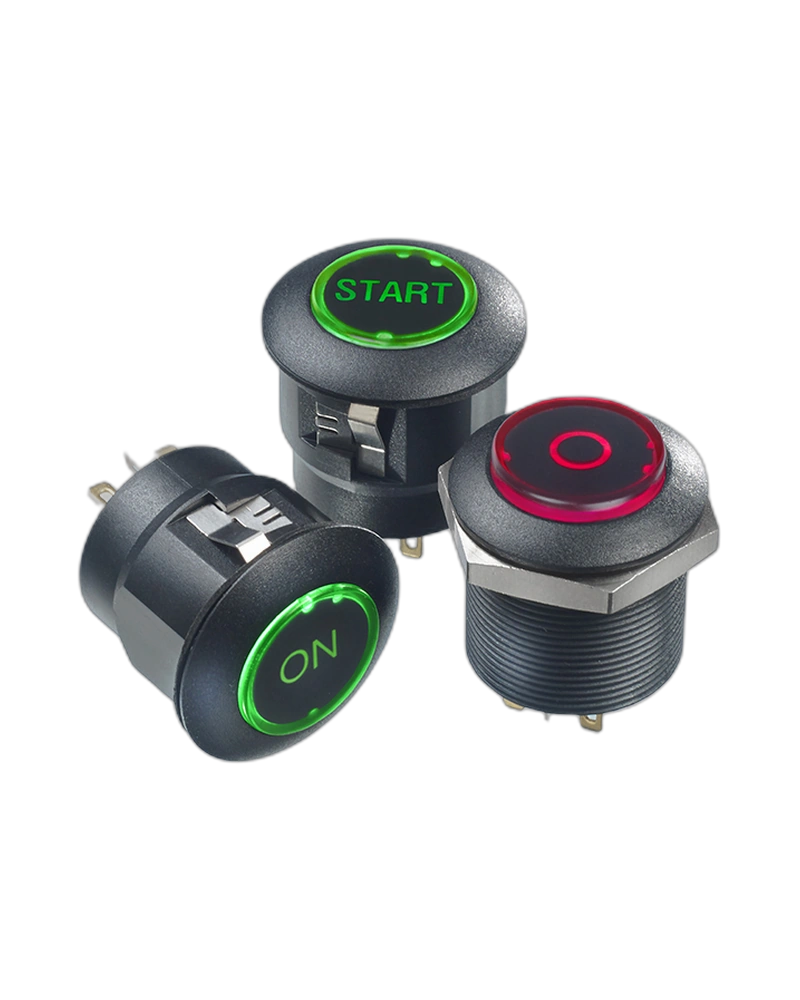

The APEM Panel Switches FDAP3D1482F14 is a robust autoswitch designed for industrial applications. Featuring IP69K sealing (threaded bushing version), momentary operation with 1 million cycles (gold plated contacts), and a 2.5 mm ± 0.5 mm total travel, this switch ensures reliable performance in demanding environments. Ideal for high-reliability systems requiring electrical life up to 1 million cycles with minimal contact resistance.
The APEM FDAP3D1482F14 is a high-performance autoswitch engineered for industrial automation and control systems. This panel switch delivers exceptional durability with a momentary operation mode that supports up to 1 million cycles for gold-plated contacts, ensuring long-term reliability in critical applications. Its robust construction includes IP69K sealing for threaded bushing versions, making it suitable for harsh environments such as industrial cleaning, chemical processing, and high-moisture settings. The switch operates within a temperature range of -40°C to +75°C and features a low contact resistance of 50 mΩ max, providing precise control with minimal electrical interference.
The FDAP3D1482F14 supports a maximum current of 4 A at 12 VDC for silver contacts and 200 mA at 12 VDC for gold-plated contacts. It features a low initial contact resistance of 50 mΩ max, ensuring minimal signal degradation in sensitive circuits. The switch operates within a temperature range of -40°C to +75°C, making it suitable for both cold and hot industrial environments.
Threaded bushing versions of the FDAP3D1482F14 are sealed to IP69K according to DIN 40050-9, providing resistance to high-pressure water, steam, and cleaning chemicals. Snap-in versions meet IP54 standards with a panel gasket and 2 mm panel thickness, ensuring protection against dust and limited water ingress in standard industrial settings.
The switch has a total travel of 2.5 mm ± 0.5 mm, ensuring precise actuation without excessive movement. A torque of 3 Nm max. can be applied to the nut, allowing for secure installation without damage. The operating force of 8 N ± 2 N ensures consistent activation across different mechanical conditions.
Available in both snap-in and threaded bushing versions, the FDAP3D1482F14 is designed for easy integration into industrial panels. The panel thickness ranges from 1.5 mm to 2.5 mm for snap-in models and 1 mm to 18 mm for threaded bushing versions, accommodating standard panel materials. The double icon actuator provides intuitive operation with clear visual feedback.
| Feature | Specification |
|---|---|
| Insulation resistance | 1 GΩ min. at 500 VDC |
| Dielectric strength | 1,000 Vrms 50 Hz min. Electrical life at full load :- Momentary models : 1 million cycles (gold plated contacts), 400,000 cycles (silver contacts)- Latching models : 200,000 cycles Electrical life at full load :- Momenta |
| sealing | - Threaded bushing version : IP69K according to DIN 40050-9- Snap-in version : IP54 according to IEC 60529 with panel gasket and 2 mm panel thickness |
| Panel thickness | - Snap-in version : 1.5 (.059) to 2 mm (.078) with panel gasket 2 (.078) to 2.5 mm (.885) without panel gasket- Threaded bushing version :1(.039) to 18 mm (.708) max. |
| Total travel | 2.5 mm ± 0.5 mm Typical |
| Torque | 3 Nm max. applied to nut Double icon actuator Snap-in and threaded bushing models Large but lightweight Sealed to IP69K (threaded bushing version) Snap-in and threaded bushing models Large but lightweight Sealed to IP69K |
| Operating temperature | -40 °C to +75 °C |
| Max. current/voltage rating with resistive load | - silver contacts (code 2) : 4 A 12 VDC- gold plated contacts (code 4) : 200 mA 12 VDC |
| Electrical Functions | Normally Open (NO) |
The APEMPanel Switches FDAP3D1482F14 is presented using the documented product characteristics available for this model.
| Feature | Specification |
|---|---|
| Insulation resistance | 1 GΩ min. at 500 VDC |
| Dielectric strength | 1,000 Vrms 50 Hz min. Electrical life at full load :- Momentary models : 1 million cycles (gold plated contacts), 400,000 cycles (silver contacts)- Latching models : 200,000 cycles Electrical life at full load :- Momenta |
| sealing | - Threaded bushing version : IP69K according to DIN 40050-9- Snap-in version : IP54 according to IEC 60529 with panel gasket and 2 mm panel thickness |
| Panel thickness | - Snap-in version : 1.5 (.059) to 2 mm (.078) with panel gasket 2 (.078) to 2.5 mm (.885) without panel gasket- Threaded bushing version :1(.039) to 18 mm (.708) max. |
| Total travel | 2.5 mm ± 0.5 mm Typical |
| Torque | 3 Nm max. applied to nut Double icon actuator Snap-in and threaded bushing models Large but lightweight Sealed to IP69K (threaded bushing version) Snap-in and threaded bushing models Large but lightweight Sealed to IP69K |
| Operating temperature | -40 °C to +75 °C |
| Max. current/voltage rating with resistive load | - silver contacts (code 2) : 4 A 12 VDC- gold plated contacts (code 4) : 200 mA 12 VDC |
| Electrical Functions | Normally Open (NO) |
