Explore performance details, construction highlights, applications, and technical information in one clear overview.

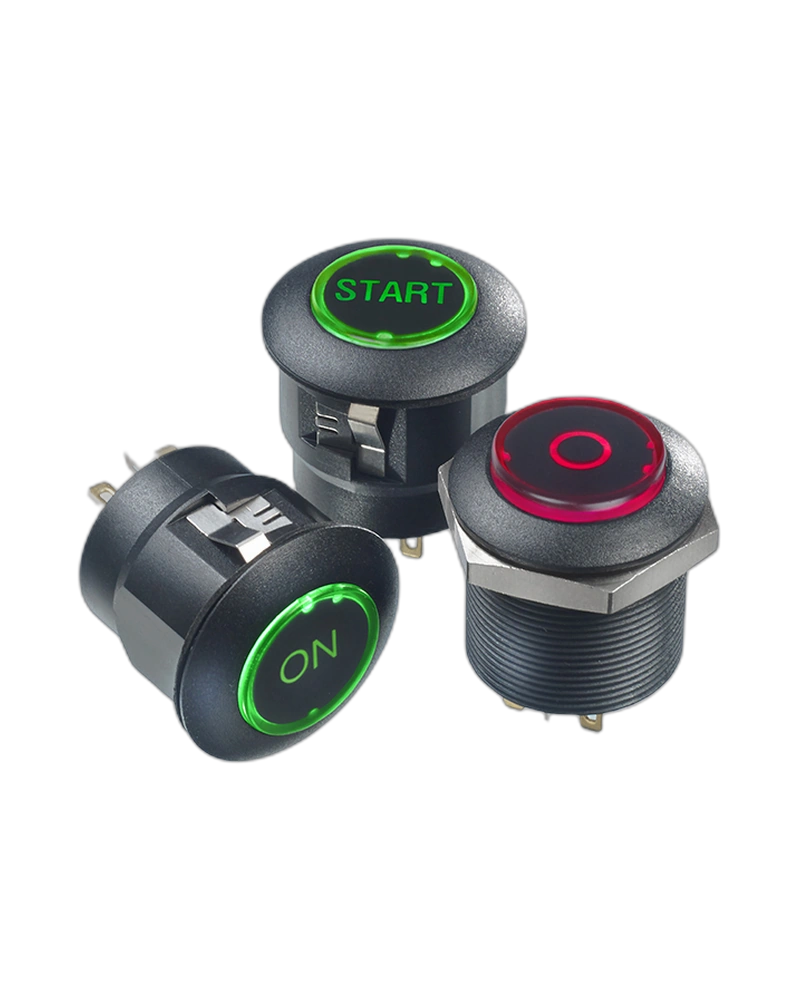

The APEM Panel Switches FDAP3D1282F15 is a robust autoswitch designed for industrial applications. Featuring IP69K sealing (threaded bushing version), 1 GΩ insulation resistance at 500 VDC, and 200,000 cycles for latching models, this switch ensures reliable operation in demanding environments. With a 2.5 mm ± 0.5 mm total travel and 8 N ± 2 N operating force, it delivers precise control for critical systems.
The APEM Panel Switches FDAP3D1282F15 is a high-reliability autoswitch engineered for industrial control systems, combining robust construction with precise electrical performance. This switch supports both momentary and latching operation, with gold-plated contacts offering 1 million cycles and silver contacts providing 400,000 cycles for electrical life at full load. Its threaded bushing version achieves IP69K protection (DIN 40050-9), while the snap-in version meets IP54 standards with a panel gasket. The switch operates within a temperature range of -40°C to +75°C and handles up to 200 mA at 12 VDC with gold-plated contacts, making it ideal for applications requiring high durability and environmental resilience.
The FDAP3D1282F15 delivers precise electrical control with a maximum initial contact resistance of 50 mΩ. It supports both momentary and latching operation, with electrical life ratings of 1 million cycles for momentary models (gold-plated contacts) and 400,000 cycles for silver contacts. Latching models provide 200,000 cycles at full load, ensuring long-term reliability in high-stress environments. The switch handles up to 200 mA at 12 VDC with gold-plated contacts, suitable for sensitive electronic systems.
Engineered for harsh conditions, the threaded bushing version achieves IP69K protection (DIN 40050-9), making it resistant to dust, water, and high-temperature environments. The snap-in version meets IP54 standards with a panel gasket and 2 mm panel thickness, providing adequate protection for industrial settings. Both versions operate within a temperature range of -40°C to +75°C, ensuring consistent performance across extreme conditions.
With a total travel of 2.5 mm ± 0.5 mm and an operating force of 8 N ± 2 N, the switch ensures smooth and precise actuation. The double icon actuator design allows for intuitive operation, while the large but lightweight construction minimizes installation strain. The switch supports both snap-in and threaded bushing mounting options, accommodating various panel thicknesses from 1.5 mm to 2.5 mm.
The FDAP3D1282F15 is ideal for industrial control panels where high durability and environmental resistance are critical. Its robust construction and precise electrical performance make it suitable for applications such as manufacturing equipment, automation systems, and machinery requiring reliable switching under demanding conditions.
| Feature | Specification |
|---|---|
| Insulation resistance | 1 GΩ min. at 500 VDC |
| Dielectric strength | 1,000 Vrms 50 Hz min. Electrical life at full load :- Momentary models : 1 million cycles (gold plated contacts), 400,000 cycles (silver contacts)- Latching models : 200,000 cycles Electrical life at full load :- Momenta |
| sealing | - Threaded bushing version : IP69K according to DIN 40050-9- Snap-in version : IP54 according to IEC 60529 with panel gasket and 2 mm panel thickness |
| Panel thickness | - Snap-in version : 1.5 (.059) to 2 mm (.078) with panel gasket 2 (.078) to 2.5 mm (.885) without panel gasket- Threaded bushing version :1(.039) to 18 mm (.708) max. |
| Total travel | 2.5 mm ± 0.5 mm Typical |
| Torque | 3 Nm max. applied to nut Double icon actuator Snap-in and threaded bushing models Large but lightweight Sealed to IP69K (threaded bushing version) Snap-in and threaded bushing models Large but lightweight Sealed to IP69K |
| Operating temperature | -40 °C to +75 °C |
| Max. current/voltage rating with resistive load | - silver contacts (code 2) : 4 A 12 VDC- gold plated contacts (code 4) : 200 mA 12 VDC |
| Electrical Functions | Normally Open (NO) |
The APEMPanel Switches FDAP3D1282F15 is presented using the documented product characteristics available for this model.
| Feature | Specification |
|---|---|
| Insulation resistance | 1 GΩ min. at 500 VDC |
| Dielectric strength | 1,000 Vrms 50 Hz min. Electrical life at full load :- Momentary models : 1 million cycles (gold plated contacts), 400,000 cycles (silver contacts)- Latching models : 200,000 cycles Electrical life at full load :- Momenta |
| sealing | - Threaded bushing version : IP69K according to DIN 40050-9- Snap-in version : IP54 according to IEC 60529 with panel gasket and 2 mm panel thickness |
| Panel thickness | - Snap-in version : 1.5 (.059) to 2 mm (.078) with panel gasket 2 (.078) to 2.5 mm (.885) without panel gasket- Threaded bushing version :1(.039) to 18 mm (.708) max. |
| Total travel | 2.5 mm ± 0.5 mm Typical |
| Torque | 3 Nm max. applied to nut Double icon actuator Snap-in and threaded bushing models Large but lightweight Sealed to IP69K (threaded bushing version) Snap-in and threaded bushing models Large but lightweight Sealed to IP69K |
| Operating temperature | -40 °C to +75 °C |
| Max. current/voltage rating with resistive load | - silver contacts (code 2) : 4 A 12 VDC- gold plated contacts (code 4) : 200 mA 12 VDC |
| Electrical Functions | Normally Open (NO) |
