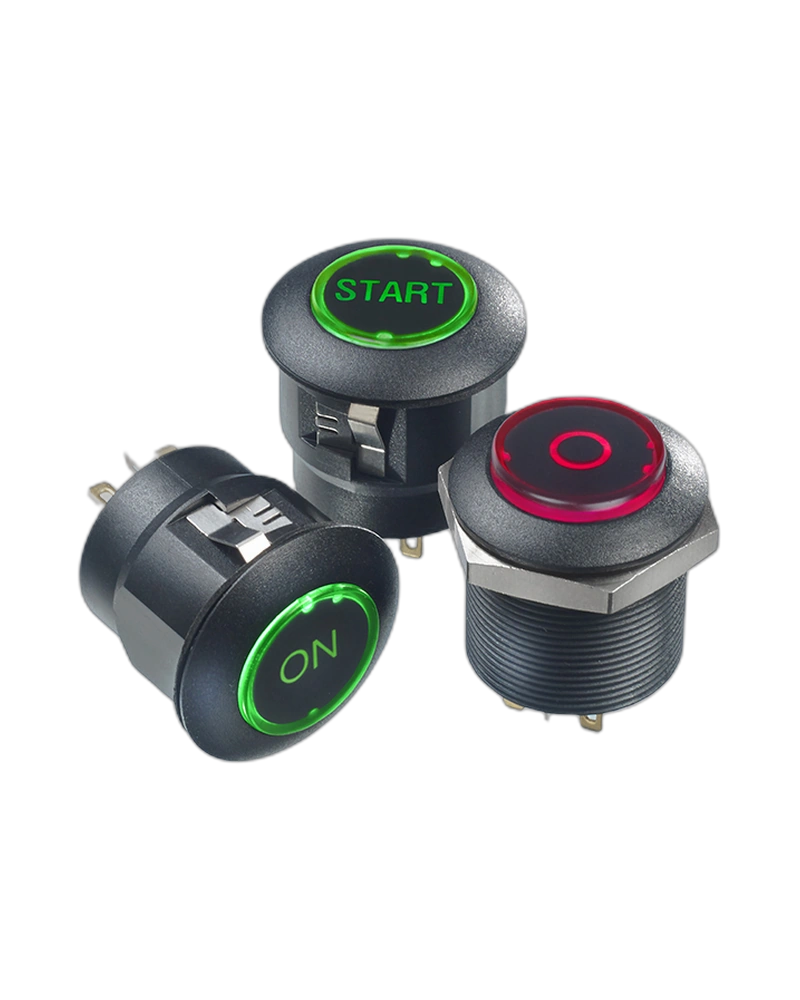

The APEM Panel Switches FDAP1G1482F13 is a robust autoswitch designed for industrial applications. Featuring IP69K sealing for threaded bushing versions and reliable electrical performance with 1 GΩ insulation resistance at 500 VDC, this switch ensures durability in harsh environments. With electrical life up to 1 million cycles for momentary models and 200,000 cycles for latching models, it delivers precise control for demanding systems.
The APEM Panel Switches FDAP1G1482F13 is a high-performance autoswitch engineered for industrial environments requiring exceptional reliability and durability. This switch combines robust sealing capabilities with precise electrical characteristics to ensure consistent operation under demanding conditions. Its IP69K rating for threaded bushing versions and high electrical life specifications make it ideal for applications where resistance to environmental stress and long-term performance are critical.
The FDAP1G1482F13 delivers precise electrical control with a minimum insulation resistance of 1 GΩ at 500 VDC. For momentary models, gold-plated contacts support 1 million cycles at full load, while silver contacts offer 400,000 cycles. Latching models provide 200,000 cycles. The switch operates within a temperature range of -40 °C to +75 °C and features an initial contact resistance of 50 mΩ max.
Threaded bushing versions achieve IP69K protection (DIN 40050-9), making them suitable for extreme conditions including high-pressure cleaning and industrial washdowns. Snap-in versions offer IP54 protection with a panel gasket and 2 mm panel thickness, ensuring resistance to dust and moisture in standard industrial settings.
The switch has a total travel of 2.5 mm ± 0.5 mm and requires an operating force of 8 N ± 2 N. Its lightweight design (large but lightweight) and double icon actuator ensure intuitive operation without compromising durability. Maximum torque of 3 Nm applied to the nut allows for secure installation.
Designed for industrial automation systems where reliability is critical, the FDAP1G1482F13 excels in environments requiring high electrical life and resistance to environmental stress. Its dual actuator design and robust sealing options make it suitable for machinery, control panels, and systems exposed to harsh conditions.
| Feature | Specification |
|---|---|
| Insulation resistance | 1 GΩ min. at 500 VDC |
| Dielectric strength | 1,000 Vrms 50 Hz min. Electrical life at full load :- Momentary models : 1 million cycles (gold plated contacts), 400,000 cycles (silver contacts)- Latching models : 200,000 cycles Electrical life at full load :- Momenta |
| sealing | - Threaded bushing version : IP69K according to DIN 40050-9- Snap-in version : IP54 according to IEC 60529 with panel gasket and 2 mm panel thickness |
| Panel thickness | - Snap-in version : 1.5 (.059) to 2 mm (.078) with panel gasket 2 (.078) to 2.5 mm (.885) without panel gasket- Threaded bushing version :1(.039) to 18 mm (.708) max. |
| Total travel | 2.5 mm ± 0.5 mm Typical |
| Torque | 3 Nm max. applied to nut Double icon actuator Snap-in and threaded bushing models Large but lightweight Sealed to IP69K (threaded bushing version) Snap-in and threaded bushing models Large but lightweight Sealed to IP69K |
| Operating temperature | -40 °C to +75 °C |
| Max. current/voltage rating with resistive load | - silver contacts (code 2) : 4 A 12 VDC- gold plated contacts (code 4) : 200 mA 12 VDC |
| Electrical Functions | ON OFF |
The APEMPanel Switches FDAP1G1482F13 is presented using the documented product characteristics available for this model.
| Feature | Specification |
|---|---|
| Insulation resistance | 1 GΩ min. at 500 VDC |
| Dielectric strength | 1,000 Vrms 50 Hz min. Electrical life at full load :- Momentary models : 1 million cycles (gold plated contacts), 400,000 cycles (silver contacts)- Latching models : 200,000 cycles Electrical life at full load :- Momenta |
| sealing | - Threaded bushing version : IP69K according to DIN 40050-9- Snap-in version : IP54 according to IEC 60529 with panel gasket and 2 mm panel thickness |
| Panel thickness | - Snap-in version : 1.5 (.059) to 2 mm (.078) with panel gasket 2 (.078) to 2.5 mm (.885) without panel gasket- Threaded bushing version :1(.039) to 18 mm (.708) max. |
| Total travel | 2.5 mm ± 0.5 mm Typical |
| Torque | 3 Nm max. applied to nut Double icon actuator Snap-in and threaded bushing models Large but lightweight Sealed to IP69K (threaded bushing version) Snap-in and threaded bushing models Large but lightweight Sealed to IP69K |
| Operating temperature | -40 °C to +75 °C |
| Max. current/voltage rating with resistive load | - silver contacts (code 2) : 4 A 12 VDC- gold plated contacts (code 4) : 200 mA 12 VDC |
| Electrical Functions | ON OFF |
