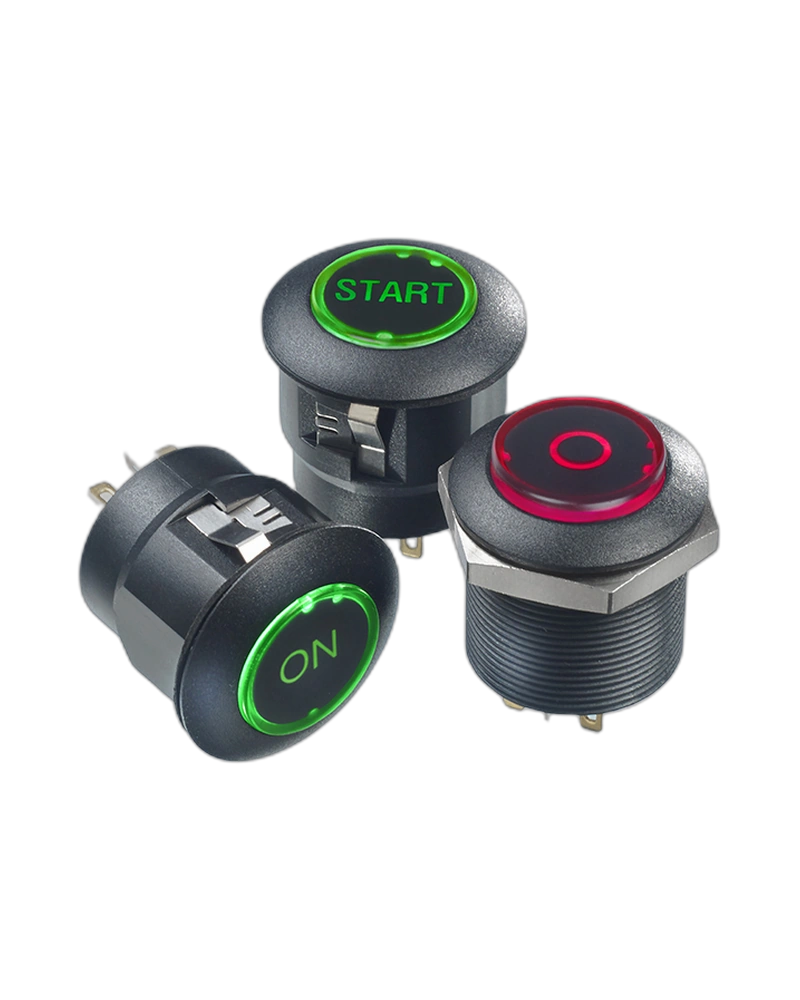

The APEM Panel Switches FDAP1G1282F15 is a robust autoswitch designed for industrial applications. Featuring IP69K sealing (threaded bushing version), 1 GΩ insulation resistance at 500 VDC, and 200,000 cycles for latching models, this switch ensures reliable operation in demanding environments. Ideal for high-reliability systems requiring precise electrical control.
The APEM FDAP1G1282F15 Panel Switch is a high-performance autoswitch engineered for industrial use, combining durability with precise electrical functionality. With a sealed construction (IP69K for threaded bushing versions), exceptional insulation resistance (1 GΩ min. at 500 VDC), and robust electrical life (200,000 cycles for latching models), this switch delivers reliable performance in harsh conditions. Its double icon actuator design, lightweight profile, and compatibility with both snap-in and threaded bushing mounting options make it suitable for critical applications where reliability and longevity are paramount.
The FDAP1G1282F15 supports reliable electrical switching with a maximum current rating of 4 A at 12 VDC for silver contacts (code 2) and 200 mA at 12 VDC for gold-plated contacts (code 4). It maintains low contact resistance (50 mΩ max.) and meets stringent dielectric strength requirements (1,000 Vrms 50 Hz min.).
Engineered for extreme conditions, the threaded bushing version achieves IP69K protection (DIN 40050-9), ensuring resistance to dust, water, and harsh chemicals. The snap-in version offers IP54 protection with a panel gasket and 2 mm panel thickness, suitable for most industrial environments.
With a total travel of 2.5 mm ± 0.5 mm and operating force of 8 N ± 2 N, the switch ensures precise actuation without excessive mechanical stress. The lightweight design (snap-in: 1.5–2.5 mm panel thickness) and robust torque tolerance (3 Nm max.) support long-term reliability in high-traffic installations.
Operating within a temperature range of -40 °C to +75 °C, the FDAP1G1282F15 maintains performance across extreme conditions. Its electrical life specifications (1 million cycles for momentary models, 200,000 cycles for latching models) ensure longevity in demanding applications.
| Feature | Specification |
|---|---|
| Insulation resistance | 1 GΩ min. at 500 VDC |
| Dielectric strength | 1,000 Vrms 50 Hz min. Electrical life at full load :- Momentary models : 1 million cycles (gold plated contacts), 400,000 cycles (silver contacts)- Latching models : 200,000 cycles Electrical life at full load :- Momenta |
| sealing | - Threaded bushing version : IP69K according to DIN 40050-9- Snap-in version : IP54 according to IEC 60529 with panel gasket and 2 mm panel thickness |
| Panel thickness | - Snap-in version : 1.5 (.059) to 2 mm (.078) with panel gasket 2 (.078) to 2.5 mm (.885) without panel gasket- Threaded bushing version :1(.039) to 18 mm (.708) max. |
| Total travel | 2.5 mm ± 0.5 mm Typical |
| Torque | 3 Nm max. applied to nut Double icon actuator Snap-in and threaded bushing models Large but lightweight Sealed to IP69K (threaded bushing version) Snap-in and threaded bushing models Large but lightweight Sealed to IP69K |
| Operating temperature | -40 °C to +75 °C |
| Max. current/voltage rating with resistive load | - silver contacts (code 2) : 4 A 12 VDC- gold plated contacts (code 4) : 200 mA 12 VDC |
| Electrical Functions | ON OFF |
The APEMPanel Switches FDAP1G1282F15 is presented using the documented product characteristics available for this model.
| Feature | Specification |
|---|---|
| Insulation resistance | 1 GΩ min. at 500 VDC |
| Dielectric strength | 1,000 Vrms 50 Hz min. Electrical life at full load :- Momentary models : 1 million cycles (gold plated contacts), 400,000 cycles (silver contacts)- Latching models : 200,000 cycles Electrical life at full load :- Momenta |
| sealing | - Threaded bushing version : IP69K according to DIN 40050-9- Snap-in version : IP54 according to IEC 60529 with panel gasket and 2 mm panel thickness |
| Panel thickness | - Snap-in version : 1.5 (.059) to 2 mm (.078) with panel gasket 2 (.078) to 2.5 mm (.885) without panel gasket- Threaded bushing version :1(.039) to 18 mm (.708) max. |
| Total travel | 2.5 mm ± 0.5 mm Typical |
| Torque | 3 Nm max. applied to nut Double icon actuator Snap-in and threaded bushing models Large but lightweight Sealed to IP69K (threaded bushing version) Snap-in and threaded bushing models Large but lightweight Sealed to IP69K |
| Operating temperature | -40 °C to +75 °C |
| Max. current/voltage rating with resistive load | - silver contacts (code 2) : 4 A 12 VDC- gold plated contacts (code 4) : 200 mA 12 VDC |
| Electrical Functions | ON OFF |
