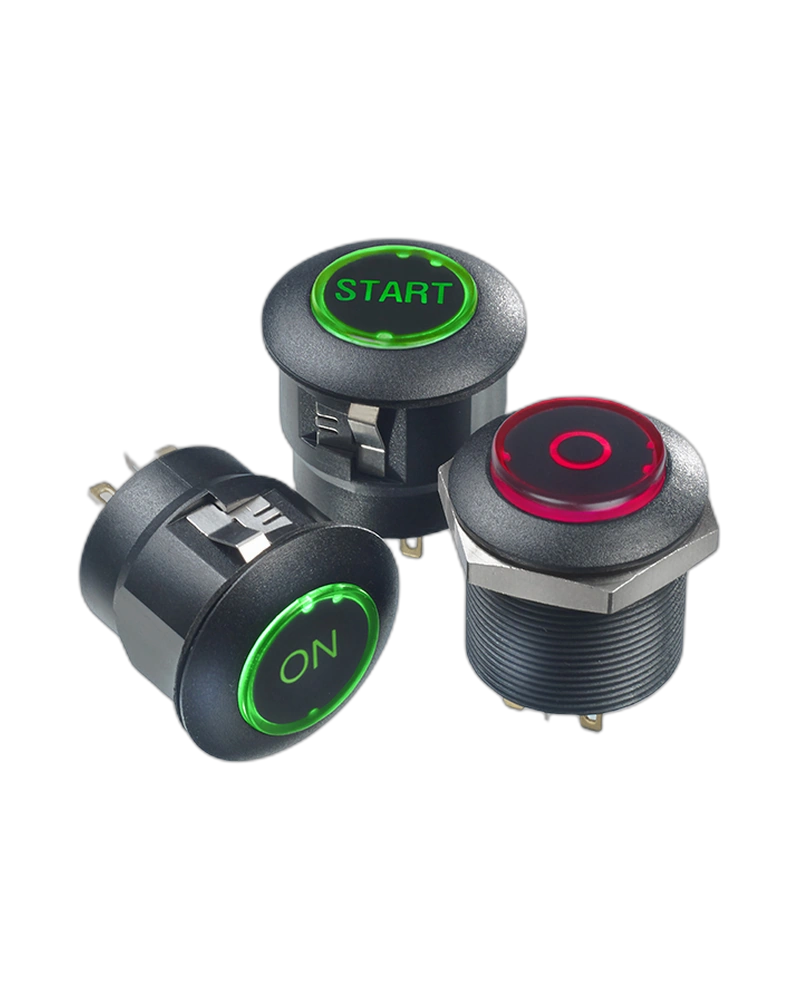

The APEM Panel Switches FDAP1F1482F04 is a high-reliability autoswitch designed for industrial applications. Featuring IP69K sealing (threaded bushing version), 1 GΩ insulation resistance at 500 VDC, and 200,000 cycles for latching models, this switch ensures robust performance in demanding environments. Ideal for electrical control systems requiring precise switching with minimal maintenance.
The APEM Panel Switches FDAP1F1482F04 is a precision-engineered autoswitch designed for industrial control systems where reliability and durability are critical. This switch delivers exceptional electrical performance with a minimum insulation resistance of 1 GΩ at 500 VDC and dielectric strength of 1,000 Vrms 50 Hz. The threaded bushing version achieves IP69K protection (DIN 40050-9), making it suitable for harsh environments such as marine, chemical, or high-salinity settings. With electrical life ratings of 200,000 cycles for latching models and 1 million cycles for momentary models (gold-plated contacts), this switch ensures long-term operational stability without compromising on performance.
The FDAP1F1482F04 delivers robust electrical characteristics with a minimum insulation resistance of 1 GΩ at 500 VDC and dielectric strength of 1,000 Vrms 50 Hz. For resistive loads, silver contacts support up to 4 A at 12 VDC, while gold-plated contacts handle 200 mA at 12 VDC. Initial contact resistance remains below 50 mΩ, ensuring minimal voltage drop during operation.
Engineered for extreme conditions, the threaded bushing version achieves IP69K protection (DIN 40050-9), enabling operation in high-salinity, high-temperature, or wet environments. The snap-in version offers IP54 protection with a panel gasket, suitable for standard industrial settings. Both versions maintain performance across a wide temperature range of -40 °C to +75 °C.
With a total travel of 2.5 mm ± 0.5 mm and an operating force of 8 N ± 2 N, the switch ensures smooth actuation without excessive mechanical stress. The double icon actuator design provides intuitive operation, while the lightweight construction reduces installation strain. Torque requirements of up to 3 Nm max. applied to the nut ensure secure mounting without damage.
The switch demonstrates exceptional longevity with electrical life ratings of 200,000 cycles for latching models and 1 million cycles for momentary models (gold-plated contacts). This extended service life reduces maintenance frequency and operational downtime, making it ideal for critical industrial applications where continuous operation is essential.
| Feature | Specification |
|---|---|
| Insulation resistance | 1 GΩ min. at 500 VDC |
| Dielectric strength | 1,000 Vrms 50 Hz min. Electrical life at full load :- Momentary models : 1 million cycles (gold plated contacts), 400,000 cycles (silver contacts)- Latching models : 200,000 cycles Electrical life at full load :- Momenta |
| sealing | - Threaded bushing version : IP69K according to DIN 40050-9- Snap-in version : IP54 according to IEC 60529 with panel gasket and 2 mm panel thickness |
| Panel thickness | - Snap-in version : 1.5 (.059) to 2 mm (.078) with panel gasket 2 (.078) to 2.5 mm (.885) without panel gasket- Threaded bushing version :1(.039) to 18 mm (.708) max. |
| Total travel | 2.5 mm ± 0.5 mm Typical |
| Torque | 3 Nm max. applied to nut Double icon actuator Snap-in and threaded bushing models Large but lightweight Sealed to IP69K (threaded bushing version) Snap-in and threaded bushing models Large but lightweight Sealed to IP69K |
| Operating temperature | -40 °C to +75 °C |
| Max. current/voltage rating with resistive load | - silver contacts (code 2) : 4 A 12 VDC- gold plated contacts (code 4) : 200 mA 12 VDC |
| Electrical Functions | ON OFF |
The APEMPanel Switches FDAP1F1482F04 is presented using the documented product characteristics available for this model.
| Feature | Specification |
|---|---|
| Insulation resistance | 1 GΩ min. at 500 VDC |
| Dielectric strength | 1,000 Vrms 50 Hz min. Electrical life at full load :- Momentary models : 1 million cycles (gold plated contacts), 400,000 cycles (silver contacts)- Latching models : 200,000 cycles Electrical life at full load :- Momenta |
| sealing | - Threaded bushing version : IP69K according to DIN 40050-9- Snap-in version : IP54 according to IEC 60529 with panel gasket and 2 mm panel thickness |
| Panel thickness | - Snap-in version : 1.5 (.059) to 2 mm (.078) with panel gasket 2 (.078) to 2.5 mm (.885) without panel gasket- Threaded bushing version :1(.039) to 18 mm (.708) max. |
| Total travel | 2.5 mm ± 0.5 mm Typical |
| Torque | 3 Nm max. applied to nut Double icon actuator Snap-in and threaded bushing models Large but lightweight Sealed to IP69K (threaded bushing version) Snap-in and threaded bushing models Large but lightweight Sealed to IP69K |
| Operating temperature | -40 °C to +75 °C |
| Max. current/voltage rating with resistive load | - silver contacts (code 2) : 4 A 12 VDC- gold plated contacts (code 4) : 200 mA 12 VDC |
| Electrical Functions | ON OFF |
