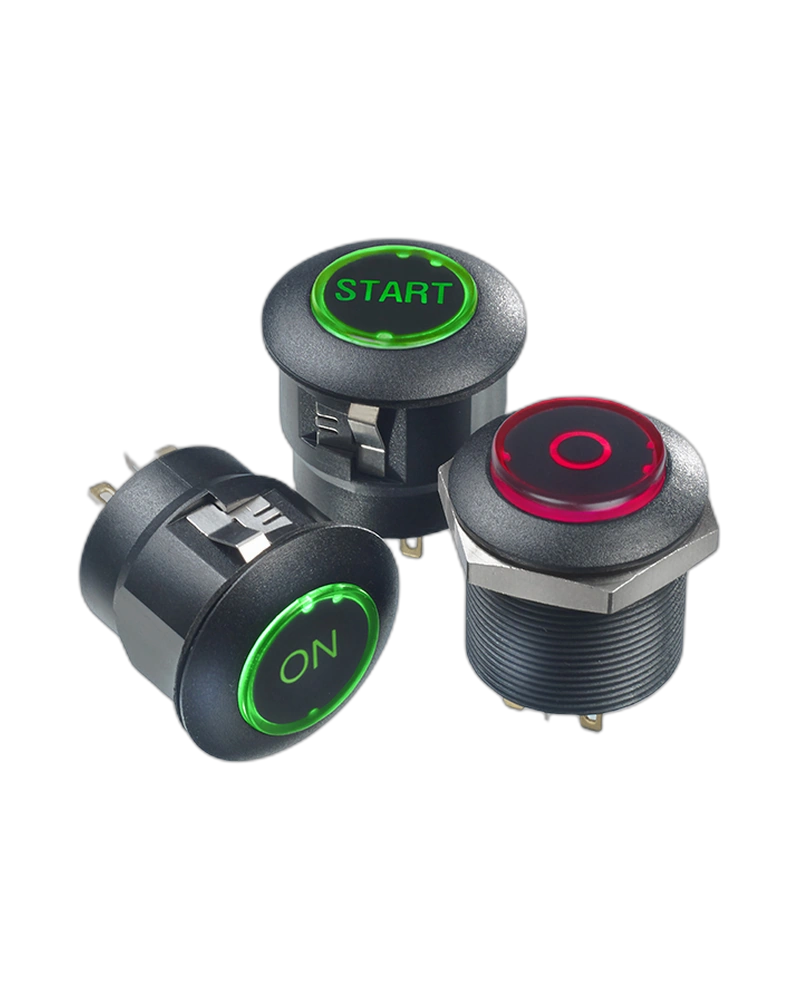

The APEM Panel Switches FDAP1F1282F13 is a robust autoswitch designed for industrial applications. Featuring IP69K sealing (threaded bushing version), 1 GΩ insulation resistance at 500 VDC, and 200,000 cycles for latching models, this switch ensures reliable operation in demanding environments. Ideal for high-reliability systems requiring precise electrical control.
The APEM Panel Switches FDAP1F1282F13 is a high-performance autoswitch engineered for industrial automation and control systems. This switch combines exceptional durability with precise electrical performance, offering a wide operating temperature range from -40°C to +75°C and robust sealing options including IP69K for threaded bushing versions. With momentary models providing up to 1 million cycles and latching models delivering 200,000 cycles, the FDAP1F1282F13 ensures long-term reliability in critical applications where electrical safety and mechanical resilience are paramount.
The FDAP1F1282F13 delivers reliable electrical performance with a minimum insulation resistance of 1 GΩ at 500 VDC. It supports both momentary and latching operation, with electrical life ratings of 1 million cycles for momentary models (gold plated contacts) and 200,000 cycles for latching models. The switch maintains low contact resistance (50 mΩ max) and operates within a temperature range of -40°C to +75°C, ensuring consistent performance across diverse industrial conditions.
Available in two sealing configurations: the threaded bushing version achieves IP69K protection (DIN 40050-9), suitable for harsh industrial environments, while the snap-in version provides IP54 protection (IEC 60529) with a panel gasket and 2 mm panel thickness. This dual sealing option ensures the switch remains functional in high-moisture, dusty, or corrosive settings without compromising safety.
Engineered for durability, the FDAP1F1282F13 features a total travel of 2.5 mm ± 0.5 mm and requires an operating force of 8 N ± 2 N. Its double icon actuator design provides clear visual feedback, while the lightweight construction (snap-in and threaded bushing models) ensures ease of installation without excessive mechanical stress.
The switch supports resistive loads with specific current ratings: silver contacts (code 2) handle up to 4 A at 12 VDC, while gold-plated contacts (code 4) are rated for 200 mA at 12 VDC. These ratings ensure compatibility with a wide range of industrial circuits while maintaining safety and efficiency.
| Feature | Specification |
|---|---|
| Insulation resistance | 1 GΩ min. at 500 VDC |
| Dielectric strength | 1,000 Vrms 50 Hz min. Electrical life at full load :- Momentary models : 1 million cycles (gold plated contacts), 400,000 cycles (silver contacts)- Latching models : 200,000 cycles Electrical life at full load :- Momenta |
| sealing | - Threaded bushing version : IP69K according to DIN 40050-9- Snap-in version : IP54 according to IEC 60529 with panel gasket and 2 mm panel thickness |
| Panel thickness | - Snap-in version : 1.5 (.059) to 2 mm (.078) with panel gasket 2 (.078) to 2.5 mm (.885) without panel gasket- Threaded bushing version :1(.039) to 18 mm (.708) max. |
| Total travel | 2.5 mm ± 0.5 mm Typical |
| Torque | 3 Nm max. applied to nut Double icon actuator Snap-in and threaded bushing models Large but lightweight Sealed to IP69K (threaded bushing version) Snap-in and threaded bushing models Large but lightweight Sealed to IP69K |
| Operating temperature | -40 °C to +75 °C |
| Max. current/voltage rating with resistive load | - silver contacts (code 2) : 4 A 12 VDC- gold plated contacts (code 4) : 200 mA 12 VDC |
| Electrical Functions | ON OFF |
The APEMPanel Switches FDAP1F1282F13 is presented using the documented product characteristics available for this model.
| Feature | Specification |
|---|---|
| Insulation resistance | 1 GΩ min. at 500 VDC |
| Dielectric strength | 1,000 Vrms 50 Hz min. Electrical life at full load :- Momentary models : 1 million cycles (gold plated contacts), 400,000 cycles (silver contacts)- Latching models : 200,000 cycles Electrical life at full load :- Momenta |
| sealing | - Threaded bushing version : IP69K according to DIN 40050-9- Snap-in version : IP54 according to IEC 60529 with panel gasket and 2 mm panel thickness |
| Panel thickness | - Snap-in version : 1.5 (.059) to 2 mm (.078) with panel gasket 2 (.078) to 2.5 mm (.885) without panel gasket- Threaded bushing version :1(.039) to 18 mm (.708) max. |
| Total travel | 2.5 mm ± 0.5 mm Typical |
| Torque | 3 Nm max. applied to nut Double icon actuator Snap-in and threaded bushing models Large but lightweight Sealed to IP69K (threaded bushing version) Snap-in and threaded bushing models Large but lightweight Sealed to IP69K |
| Operating temperature | -40 °C to +75 °C |
| Max. current/voltage rating with resistive load | - silver contacts (code 2) : 4 A 12 VDC- gold plated contacts (code 4) : 200 mA 12 VDC |
| Electrical Functions | ON OFF |
