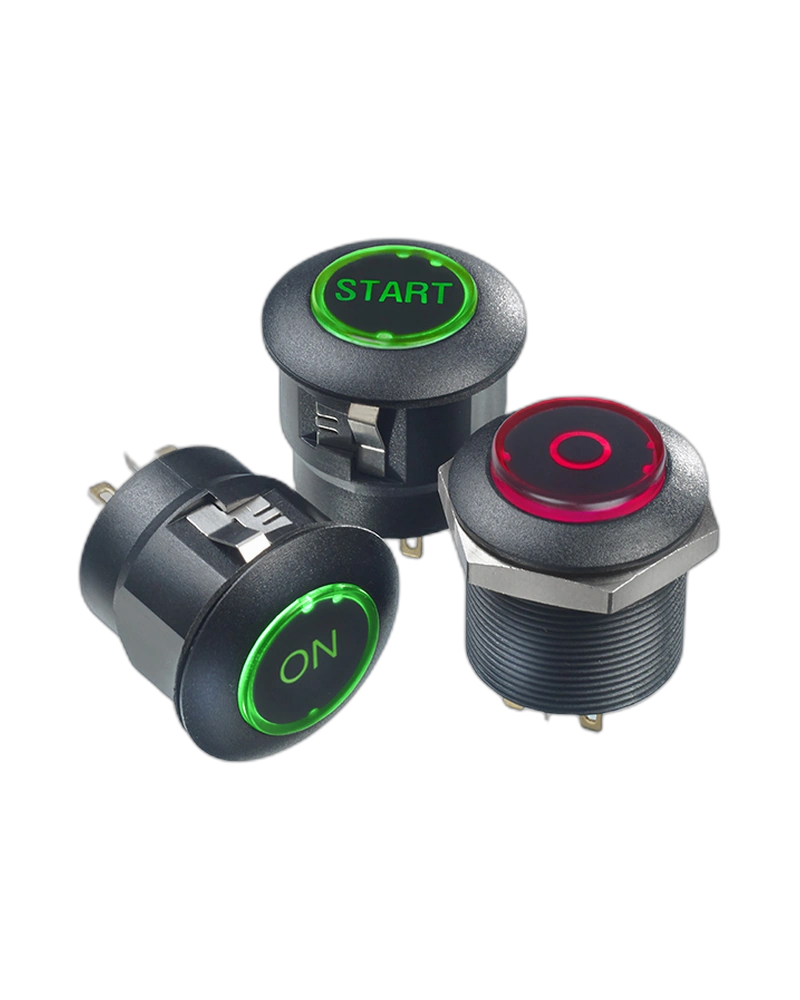

The APEM Panel Switches FDAP1D1282F24 is a Switches and Pushbutton with documented product-specific characteristics including Panel thickness: - Snap-in version: 1.5 (.059) to 2 mm (.078) with panel gasket 2 (.078) to 2.5 mm (.885) without panel gasket - Threaded bushing version:1(.039) to 18 mm (.708) max.; Total travel: 2.5 mm ± 0.5 mm; operating force: 8 N ± 2 N.
| Feature | Specification |
|---|---|
| Panel thickness | - Snap-in version : 1.5 (.059) to 2 mm (.078) with panel gasket 2 (.078) to 2.5 mm (.885) without panel gasket - Threaded bushing version :1(.039) to 18 mm (.708) max. |
| Total travel | 2.5 mm ± 0.5 mm |
| operating force | 8 N ± 2 N |
| Torque | 3 Nm max. applied to nut |
| Electrical Functions | ON OFF Contact Materials: Silver Led Control And No Of Poles: Independent LED 2 Poles Led Resistors: 24V Resistor Model: Threaded Bushing |
