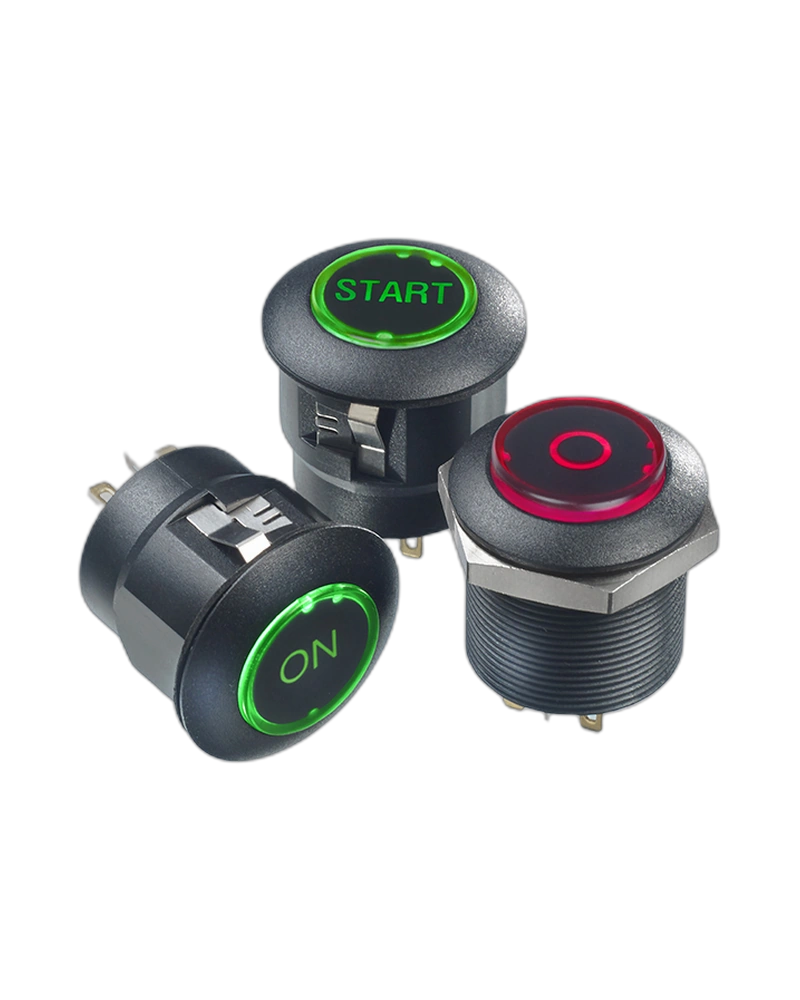

The APEM Panel Switches FDAP1D1282F13 is a robust autoswitch designed for industrial applications. Featuring double icon actuators, IP69K sealing (threaded bushing version), and high electrical life (1 million cycles for momentary models with gold contacts), this switch ensures reliable operation in demanding environments. With a wide temperature range (-40°C to +75°C) and low contact resistance (50 mΩ max), it meets stringent industrial requirements for durability and performance.
The APEM Panel Switches FDAP1D1282F13 is a high-reliability autoswitch engineered for industrial control systems. This switch combines exceptional durability with precise electrical performance, offering momentary or latching operation with gold-plated contacts for up to 1 million cycles and silver contacts for 400,000 cycles. Its IP69K sealing (for threaded bushing versions) ensures resistance to harsh environments, while the wide operating temperature range (-40°C to +75°C) and low contact resistance (50 mΩ max) make it suitable for critical applications where reliability is paramount. The switch’s compact design and robust construction support seamless integration into industrial machinery and automation systems.
The FDAP1D1282F13 delivers precise electrical control with a maximum current rating of 4 A at 12 VDC for silver contacts and 200 mA at 12 VDC for gold-plated contacts. It maintains low contact resistance (50 mΩ max) and supports high electrical life (1 million cycles for momentary models with gold contacts). The switch operates within a wide temperature range (-40°C to +75°C), ensuring consistent performance in extreme conditions.
Threaded bushing versions achieve IP69K protection (DIN 40050-9), making them suitable for high-pressure, high-temperature, and corrosive environments. Snap-in versions offer IP54 protection (IEC 60529) with a panel gasket, providing adequate resistance to dust and water for standard industrial settings.
The switch features a total travel of 2.5 mm ± 0.5 mm and requires a maximum operating force of 8 N ± 2 N. Its lightweight design (with a panel thickness of 1.5–2.5 mm for snap-in versions) ensures ease of installation while maintaining structural integrity under load.
With momentary models providing 1 million cycles and latching models offering 200,000 cycles, the FDAP1D1282F13 ensures long-term reliability. The switch’s dielectric strength of 1,000 Vrms 50 Hz and insulation resistance of 1 GΩ min. at 500 VDC further enhance its robustness in high-voltage applications.
| Feature | Specification |
|---|---|
| Insulation resistance | 1 GΩ min. at 500 VDC |
| Dielectric strength | 1,000 Vrms 50 Hz min. Electrical life at full load :- Momentary models : 1 million cycles (gold plated contacts), 400,000 cycles (silver contacts)- Latching models : 200,000 cycles Electrical life at full load :- Momenta |
| sealing | - Threaded bushing version : IP69K according to DIN 40050-9- Snap-in version : IP54 according to IEC 60529 with panel gasket and 2 mm panel thickness |
| Panel thickness | - Snap-in version : 1.5 (.059) to 2 mm (.078) with panel gasket 2 (.078) to 2.5 mm (.885) without panel gasket- Threaded bushing version :1(.039) to 18 mm (.708) max. |
| Total travel | 2.5 mm ± 0.5 mm Typical |
| Torque | 3 Nm max. applied to nut Double icon actuator Snap-in and threaded bushing models Large but lightweight Sealed to IP69K (threaded bushing version) Snap-in and threaded bushing models Large but lightweight Sealed to IP69K |
| Operating temperature | -40 °C to +75 °C |
| Max. current/voltage rating with resistive load | - silver contacts (code 2) : 4 A 12 VDC- gold plated contacts (code 4) : 200 mA 12 VDC |
| Electrical Functions | ON OFF |
The APEMPanel Switches FDAP1D1282F13 is presented using the documented product characteristics available for this model.
| Feature | Specification |
|---|---|
| Insulation resistance | 1 GΩ min. at 500 VDC |
| Dielectric strength | 1,000 Vrms 50 Hz min. Electrical life at full load :- Momentary models : 1 million cycles (gold plated contacts), 400,000 cycles (silver contacts)- Latching models : 200,000 cycles Electrical life at full load :- Momenta |
| sealing | - Threaded bushing version : IP69K according to DIN 40050-9- Snap-in version : IP54 according to IEC 60529 with panel gasket and 2 mm panel thickness |
| Panel thickness | - Snap-in version : 1.5 (.059) to 2 mm (.078) with panel gasket 2 (.078) to 2.5 mm (.885) without panel gasket- Threaded bushing version :1(.039) to 18 mm (.708) max. |
| Total travel | 2.5 mm ± 0.5 mm Typical |
| Torque | 3 Nm max. applied to nut Double icon actuator Snap-in and threaded bushing models Large but lightweight Sealed to IP69K (threaded bushing version) Snap-in and threaded bushing models Large but lightweight Sealed to IP69K |
| Operating temperature | -40 °C to +75 °C |
| Max. current/voltage rating with resistive load | - silver contacts (code 2) : 4 A 12 VDC- gold plated contacts (code 4) : 200 mA 12 VDC |
| Electrical Functions | ON OFF |
