Explore performance details, construction highlights, applications, and technical information in one clear overview.

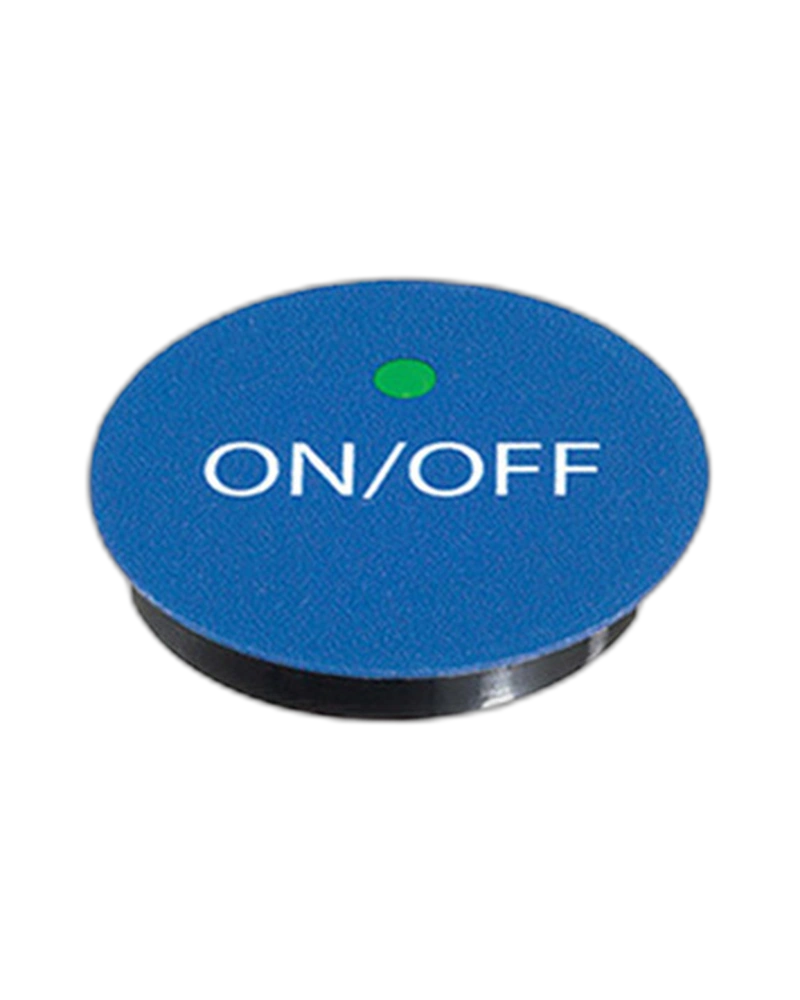

The APEM Panel Switches CG211A1 is a high-reliability autoswitch designed for industrial applications. This NPN output switch operates at 5VDC, 12VDC, or 24VDC with a maximum supply current of 15mA (12V), offering 50 million cycles of life expectancy and auto-calibration for precise touch activation. Its non-illuminated design features surface adhesive for glass or polycarbonate substrates, ensuring robust performance in demanding environments.
The APEM Panel Switches CG211A1 is a rugged, high-cycle-count autoswitch engineered for industrial control systems. This NPN output switch provides reliable ON/OFF functionality with a 50 million cycle life expectancy, ensuring long-term durability in high-traffic environments. Designed for touch activation by finger, it features an auto-calibration function to maintain consistent performance over time. The switch operates across 5VDC, 12VDC, and 24VDC supply voltages with a maximum supply current of 15mA (12V), making it suitable for a wide range of industrial applications. Its non-illuminated design includes surface adhesive for common glass or polycarbonate substrates, enabling secure mounting under non-conductive surfaces while resisting vibrations and environmental stress.
The APEM Panel Switches CG211A1 operates with a supply voltage of 5VDC, 12VDC, or 24VDC. It delivers a maximum supply current of 15mA (12V) and features an NPN output type. The switch has a maximum current rating of 200mA at 24VDC, with a switch resistance of 1 ohm max when activated. Power consumption is 10mA max in the OFF mode, ensuring low energy usage during inactive periods.
Engineered for industrial environments, the CG211A1 operates within a temperature range of -40°C to +70°C. Its adhesive and connector design is vibration-resistant, ensuring reliable performance in harsh conditions. The switch is suitable for mounting under non-conductive surfaces, such as glass or polycarbonate, with surface adhesive providing secure attachment without compromising electrical integrity.
The switch activates via finger touch with sensitivity adjustable based on substrate material: 6mm for glass and 4mm for polycarbonate. It includes an auto-calibration function to maintain consistent performance over time, reducing drift and ensuring long-term reliability. The 50 million cycle life expectancy makes it ideal for high-traffic industrial applications where frequent switching is required.
| Feature | Specification |
|---|---|
| Supply voltage | 5 VDC, 12 VDC or 24 VDC Supply current : 15 mA max. (12 V) Max. current/ |
| Type Of Illumination Voltage | Non-Illuminated 12VDC,Surface Adhesive:For Common Glass or Polycarbonate |
| voltage rating | 200 mA 24 VDC Switch resistance ON : 1 Ohm max |
| Functions | Independent,Sensitivity:6 mm Glass or 4 mm Polycarbonate |
| Electrical Functions | ON OFF |
| Feature | Specification |
|---|---|
| Sensitivity | 6 mm Glass or 4 mm Polycarbonate |
| Power consumption | 10 mA max. mode OFF Output type : NPN |
| Triggered by flowing water Temperature range | -40 °C to +70 °C Adhesive and connector resistant to vibrations |
| Temperature range | -40 °C to +70 °C Adhesive and connector resistant to vibrations |
| current | 15 mA |
| Output type | NPN |
The APEMPanel Switches CG211A1 is presented using the documented product characteristics available for this model.
| Feature | Specification |
|---|---|
| Supply voltage | 5 VDC, 12 VDC or 24 VDC Supply current : 15 mA max. (12 V) Max. current/ |
| Type Of Illumination Voltage | Non-Illuminated 12VDC,Surface Adhesive:For Common Glass or Polycarbonate |
| voltage rating | 200 mA 24 VDC Switch resistance ON : 1 Ohm max |
| Functions | Independent,Sensitivity:6 mm Glass or 4 mm Polycarbonate |
| Electrical Functions | ON OFF |
| Feature | Specification |
|---|---|
| Sensitivity | 6 mm Glass or 4 mm Polycarbonate |
| Power consumption | 10 mA max. mode OFF Output type : NPN |
| Triggered by flowing water Temperature range | -40 °C to +70 °C Adhesive and connector resistant to vibrations |
| Temperature range | -40 °C to +70 °C Adhesive and connector resistant to vibrations |
| current | 15 mA |
| Output type | NPN |
