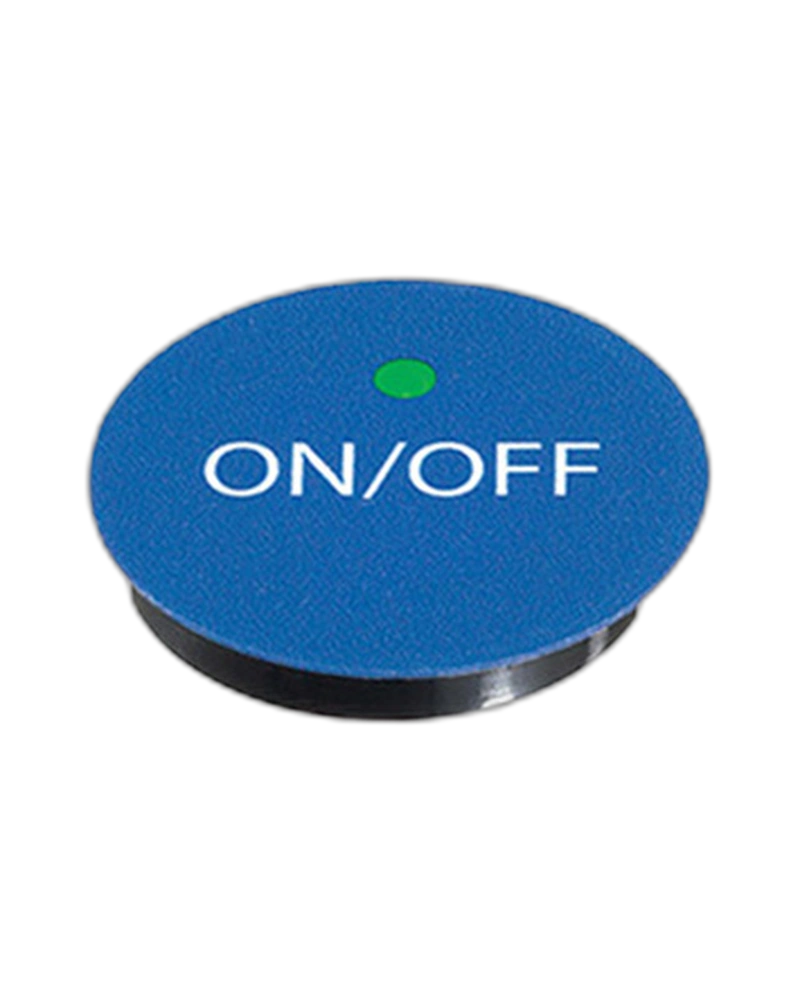

The APEM Panel Switches CG111AP0GC is a high-reliability autoswitch designed for industrial applications. This NPN output switch operates at 5VDC, 12VDC, or 24VDC with a maximum supply current of 15mA (12V), offering 50 million cycles of life expectancy and auto-calibration for precise touch activation. Its robust construction with glass or polycarbonate housing ensures reliable performance in demanding environments.
The APEM Panel Switches CG111AP0GC is a high-reliability autoswitch specifically engineered for industrial control systems. This NPN output switch provides touch-activated functionality with exceptional durability, featuring 50 million operational cycles and an auto-calibration mechanism to maintain precise performance over time. Designed for use under non-conductive surfaces, it supports a wide temperature range from -40°C to +70°C and is resistant to vibrations, making it ideal for applications requiring reliable, long-term operation in harsh industrial settings.
The CG111AP0GC operates within a supply voltage range of 5 VDC, 12 VDC, or 24 VDC. It delivers a maximum supply current of 15 mA (12 VDC) and features an NPN output type with OFF MOM electrical characteristics. The switch resistance when activated is 1 ohm maximum, ensuring low power consumption with a maximum of 10 mA in the OFF mode.
Engineered for extreme conditions, the CG111AP0GC operates within a temperature range of -40°C to +70°C. Its construction includes adhesive and connector components specifically designed to withstand vibrations, ensuring reliable performance in industrial environments where mechanical stress is common.
Available in two housing materials: glass (6 mm thickness) or polycarbonate (4 mm thickness). The switch is designed for mounting under non-conductive surfaces and features a surface adhesive for secure installation. Mating harnesses are available upon request for seamless integration into control systems.
This autoswitch is activated by the touch of a finger, with sensitivity adjustable to suit specific applications. The auto-calibration function ensures consistent performance over time, while the 50 million cycle life expectancy guarantees long-term reliability in demanding industrial applications.
| Feature | Specification |
|---|---|
| Supply voltage | 5 VDC, 12 VDC or 24 VDC Supply current : 15 mA max. (12 V) Max. current/ |
| Functions | Output Indicator,Sensitivity:6 mm Glass or 4 mm Polycarbonate |
| voltage rating | 200 mA 24 VDC Switch resistance ON : 1 Ohm max |
| Electrical Functions | OFF MOM |
| Feature | Specification |
|---|---|
| Power consumption | 10 mA max. mode OFF Output type : NPN |
| Triggered by flowing water Temperature range | -40 °C to +70 °C Adhesive and connector resistant to vibrations |
| Temperature range | -40 °C to +70 °C Adhesive and connector resistant to vibrations |
| current | 15 mA |
| Output type | NPN |
The APEMPanel Switches CG111AP0GC is presented using the documented product characteristics available for this model.
| Feature | Specification |
|---|---|
| Supply voltage | 5 VDC, 12 VDC or 24 VDC Supply current : 15 mA max. (12 V) Max. current/ |
| Functions | Output Indicator,Sensitivity:6 mm Glass or 4 mm Polycarbonate |
| voltage rating | 200 mA 24 VDC Switch resistance ON : 1 Ohm max |
| Electrical Functions | OFF MOM |
| Feature | Specification |
|---|---|
| Power consumption | 10 mA max. mode OFF Output type : NPN |
| Triggered by flowing water Temperature range | -40 °C to +70 °C Adhesive and connector resistant to vibrations |
| Temperature range | -40 °C to +70 °C Adhesive and connector resistant to vibrations |
| current | 15 mA |
| Output type | NPN |
