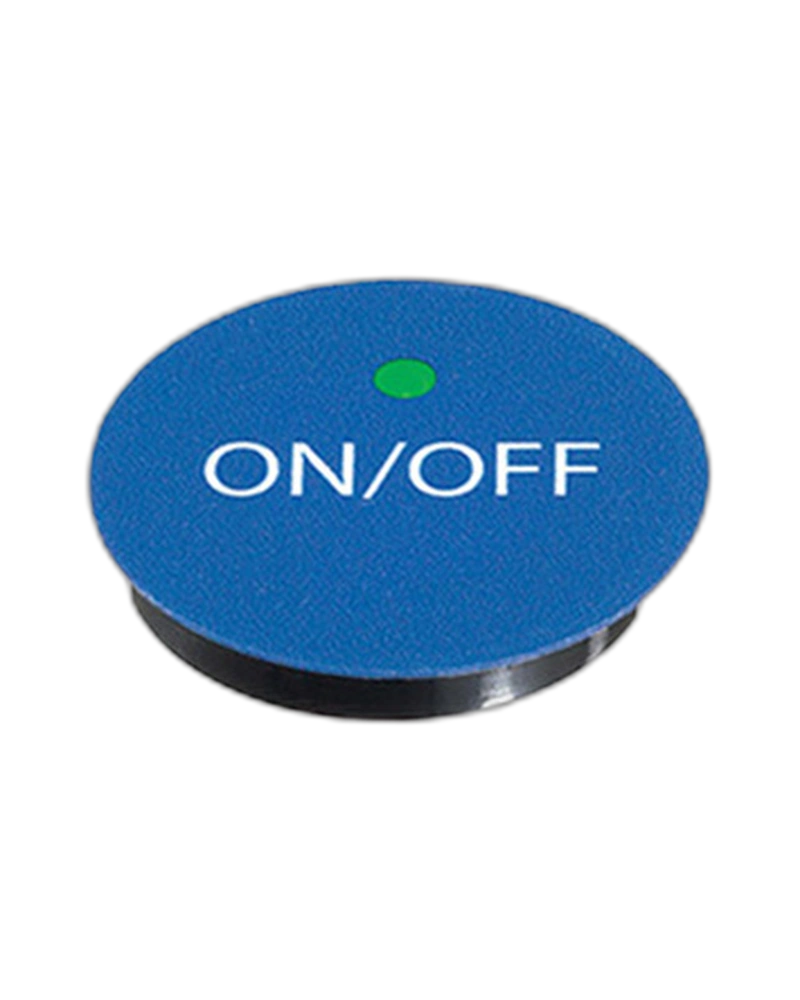

The APEM Panel Switches CG111A2 is a robust, touch-activated switch designed for industrial applications. With 50 million cycle life expectancy, 24 VDC compatibility, and NPN output, it ensures reliable operation in demanding environments. Ideal for automation systems requiring precise, vibration-resistant switching.
The APEM Panel Switches CG111A2 is a high-reliability, touch-activated switch engineered for industrial automation systems. This autoswitch features an NPN output, 50 million cycle life expectancy, and operates within a temperature range of -40°C to +70°C. Designed for durability, it includes an auto-calibration function, mounting under non-conductive surfaces, and is resistant to vibrations. The switch supports 5 VDC, 12 VDC, or 24 VDC supply voltages with a maximum current of 15 mA (12 V), making it suitable for applications requiring precise, long-lasting switching without mechanical wear.
The CG111A2 operates with 5 VDC, 12 VDC, or 24 VDC supply voltages, consuming a maximum of 10 mA in the OFF mode. It delivers an NPN output with a maximum current of 15 mA (12 V) and a switch resistance of 1 ohm max when activated. The switch is non-illuminated and features an auto-calibration function to maintain accuracy over time.
Engineered for industrial use, the CG111A2 withstands temperatures from -40°C to +70°C and includes vibration-resistant adhesive and connectors. Its mounting under non-conductive surfaces ensures safety and stability in harsh environments, while the switch is designed for long-term operation with 50 million cycles.
The switch uses surface adhesive for mounting on common glass or polycarbonate surfaces, with sensitivity adjustable to 6 mm for glass or 4 mm for polycarbonate. Mating harnesses are available upon request, ensuring seamless integration into existing systems without mechanical interference.
| Feature | Specification |
|---|---|
| Supply voltage | 5 VDC, 12 VDC or 24 VDC Supply current : 15 mA max. (12 V) Max. current/ |
| Type Of Illumination Voltage | Non-Illuminated 24VDC,Surface Adhesive:For Common Glass or Polycarbonate |
| voltage rating | 200 mA 24 VDC Switch resistance ON : 1 Ohm max |
| Functions | Independent,Sensitivity:6 mm Glass or 4 mm Polycarbonate |
| Electrical Functions | OFF MOM |
| Feature | Specification |
|---|---|
| Sensitivity | 6 mm Glass or 4 mm Polycarbonate |
| Power consumption | 10 mA max. mode OFF Output type : NPN |
| Triggered by flowing water Temperature range | -40 °C to +70 °C Adhesive and connector resistant to vibrations |
| Temperature range | -40 °C to +70 °C Adhesive and connector resistant to vibrations |
| current | 15 mA |
| Output type | NPN |
The APEMPanel Switches CG111A2 is presented using the documented product characteristics available for this model.
| Feature | Specification |
|---|---|
| Supply voltage | 5 VDC, 12 VDC or 24 VDC Supply current : 15 mA max. (12 V) Max. current/ |
| Type Of Illumination Voltage | Non-Illuminated 24VDC,Surface Adhesive:For Common Glass or Polycarbonate |
| voltage rating | 200 mA 24 VDC Switch resistance ON : 1 Ohm max |
| Functions | Independent,Sensitivity:6 mm Glass or 4 mm Polycarbonate |
| Electrical Functions | OFF MOM |
| Feature | Specification |
|---|---|
| Sensitivity | 6 mm Glass or 4 mm Polycarbonate |
| Power consumption | 10 mA max. mode OFF Output type : NPN |
| Triggered by flowing water Temperature range | -40 °C to +70 °C Adhesive and connector resistant to vibrations |
| Temperature range | -40 °C to +70 °C Adhesive and connector resistant to vibrations |
| current | 15 mA |
| Output type | NPN |
