Explore performance details, construction highlights, applications, and technical information in one clear overview.

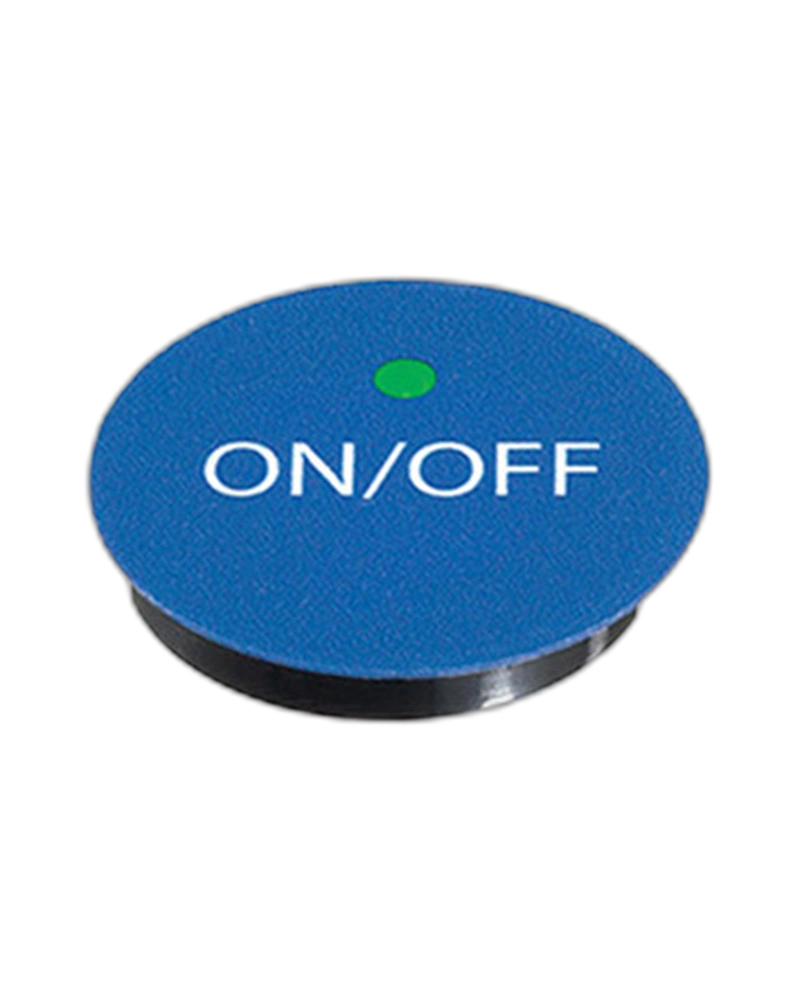

The APEM Panel Switches CG111A1 is a robust, non-illuminated autoswitch designed for industrial applications. With 50 million cycles life expectancy, 24 VDC compatibility, and NPN output, this switch ensures reliable operation in demanding environments. Its auto-calibration function and mounting under non-conductive surfaces make it ideal for precise control systems requiring high durability and minimal maintenance.
The APEM Panel Switches CG111A1 is a high-reliability, non-illuminated autoswitch engineered for industrial automation and control systems. This product delivers exceptional durability with a life expectancy of 50 million cycles, ensuring long-term performance in critical applications. Featuring an auto-calibration function and compatibility with both glass and polycarbonate surfaces, the CG111A1 operates reliably across a wide temperature range of -40°C to +70°C. Its NPN output type and low power consumption (10 mA max) make it suitable for integration into systems requiring precise switching actions with minimal electrical load.
The APEM Panel Switches CG111A1 operates with a supply voltage of 5 VDC, 12 VDC, or 24 VDC, supporting a maximum supply current of 15 mA (12 V). It features an NPN output type with a maximum output current of 200 mA at 24 VDC. The switch has a low power consumption of 10 mA max in the OFF mode and a switch resistance of 1 Ohm max when activated.
Engineered for industrial environments, the CG111A1 withstands temperatures from -40°C to +70°C. Its adhesive and connector design is vibration-resistant, ensuring reliable performance in harsh conditions. The switch can be mounted under non-conductive surfaces, providing flexibility in installation while maintaining electrical safety.
Available in two material options: glass (6 mm sensitivity) and polycarbonate (4 mm sensitivity). The switch uses surface adhesive for secure attachment, with mating harness available upon request. This construction ensures durability and adaptability to various industrial settings.
Activated by finger touch, the CG111A1 features an auto-calibration function to maintain accuracy over time. It operates in an OFF MOM (Momentary Open) mode, ensuring precise switching without unintended activation. The switch is designed for non-illuminated operation, reducing maintenance needs and enhancing safety.
| Feature | Specification |
|---|---|
| Supply voltage | 5 VDC, 12 VDC or 24 VDC Supply current : 15 mA max. (12 V) Max. current/ |
| Functions | Non-Illuminated,Sensitivity:6 mm Glass or 4 mm Polycarbonate |
| voltage rating | 200 mA 24 VDC Switch resistance ON : 1 Ohm max |
| Electrical Functions | OFF MOM |
| Feature | Specification |
|---|---|
| Power consumption | 10 mA max. mode OFF Output type : NPN |
| Triggered by flowing water Temperature range | -40 °C to +70 °C Adhesive and connector resistant to vibrations |
| Temperature range | -40 °C to +70 °C Adhesive and connector resistant to vibrations |
| current | 15 mA |
| Output type | NPN |
The APEMPanel Switches CG111A1 is presented using the documented product characteristics available for this model.
| Feature | Specification |
|---|---|
| Supply voltage | 5 VDC, 12 VDC or 24 VDC Supply current : 15 mA max. (12 V) Max. current/ |
| Functions | Non-Illuminated,Sensitivity:6 mm Glass or 4 mm Polycarbonate |
| voltage rating | 200 mA 24 VDC Switch resistance ON : 1 Ohm max |
| Electrical Functions | OFF MOM |
| Feature | Specification |
|---|---|
| Power consumption | 10 mA max. mode OFF Output type : NPN |
| Triggered by flowing water Temperature range | -40 °C to +70 °C Adhesive and connector resistant to vibrations |
| Temperature range | -40 °C to +70 °C Adhesive and connector resistant to vibrations |
| current | 15 mA |
| Output type | NPN |
