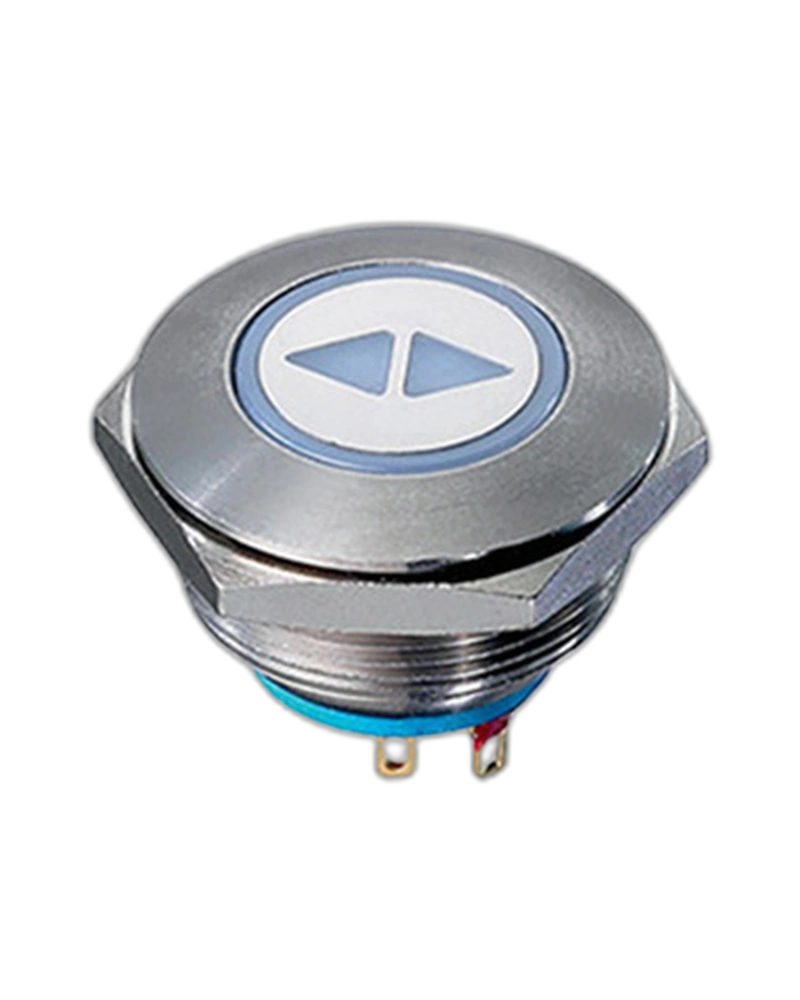

The APEM Panel Switches AV9SLD9482002K is a robust, latching autoswitch designed for industrial environments. Featuring IP67 or IP69K sealing, 1,000,000 cycle electrical life, and 2-colour LED indicators, this switch ensures reliable operation in demanding conditions with minimal maintenance. Ideal for applications requiring high durability and precise control in electrical systems.
The APEM Panel Switches AV9SLD9482002K is a high-performance, latching autoswitch engineered for industrial use. With IP67 or IP69K protection against dust and water, it delivers exceptional durability in harsh environments. The switch supports 1,000,000 operational cycles at full load, ensuring long-term reliability. Its 2-colour LED indicators provide clear visual feedback, while gold-plated contacts and stainless steel bushings ensure robust performance and extended service life. Designed for seamless integration into electrical systems requiring high resilience and precise control, this autoswitch meets stringent industrial demands.
Electrical life: 1,000,000 cycles at full load | LED voltage: 2 V (3 V max.) | LED current: 20 mA (red/green), 10 mA (other colors) | Initial contact resistance: 100 mΩ max. | Torque: 5 Nm min. to 14 Nm max. for nut installation
IP67 or IP69K sealing for dust and water resistance | Operating temperature: -30 °C to +70 °C | Panel thickness: 1 mm to 6 mm max. | Stainless steel bushings for corrosion resistance in industrial settings
Mounting: 30 mm x 30 mm panel cut-out | Panel thickness compatibility: 1 mm to 6 mm | Torque range: 5 Nm min. to 14 Nm max. for secure installation | Latching mechanism for reliable operation with 7 N ±2 N operating force
| Feature | Specification |
|---|---|
| sealing | IP67 or IP69K according to IEC 60529 Travel : 0.7 mm (.027) ±0.1 mm (.003) |
| mounting | 30 mm x 30 mm (1.181x1.181) Panel cut-out : Ø 19.2 mm (.755) or Ø 22.2 mm (.874) Min. pitch for matrix |
| Insulation resistance | 1,000 MΩ min. at 500 VDC |
| Dielectric strength | 500 Vrms 50 Hz min. between terminals2,000 Vrms 50 Hz min. between terminals and frame |
| Electrical life | 1,000,000 cycles at full load LED voltage and consumption : 2-colour LED : 2 V (3 V max.) 20 mAOther colours : 2 V (3 V max.) 10 mAA resistor must be series-connected by the user |
| Operating force | 7 N ±-2 N |
| Torque | 5 Nm min.- 14 Nm max. applied to nut |
| Panel thickness | 1 (.039) to 6 mm (.236) max. Panel cut-out : Ø 19.2 mm (.755) or Ø 22.2 mm (.874) Min. pitch for matrix |
| LED Color | Red/Green,Bushing Diameters:19mm (0.748in),Bushing Materials:Stainless Steel,Contact Materials:Gold-Plated,Illumination:Illuminated |
| Operating temperature | -30 °C to +70 °C Front panel |
| Max. current/voltage rating with resistive load | 50 mA 24 VDC LED voltage and consumption : 2-colour LED : 2 V (3 V max.) 20 mAOther colours : 2 V (3 V max.) 10 mAA resistor must be series-connected by the user |
The APEMPanel Switches AV9SLD9482002K is presented using the documented product characteristics available for this model.
| Feature | Specification |
|---|---|
| sealing | IP67 or IP69K according to IEC 60529 Travel : 0.7 mm (.027) ±0.1 mm (.003) |
| mounting | 30 mm x 30 mm (1.181x1.181) Panel cut-out : Ø 19.2 mm (.755) or Ø 22.2 mm (.874) Min. pitch for matrix |
| Insulation resistance | 1,000 MΩ min. at 500 VDC |
| Dielectric strength | 500 Vrms 50 Hz min. between terminals2,000 Vrms 50 Hz min. between terminals and frame |
| Electrical life | 1,000,000 cycles at full load LED voltage and consumption : 2-colour LED : 2 V (3 V max.) 20 mAOther colours : 2 V (3 V max.) 10 mAA resistor must be series-connected by the user |
| Operating force | 7 N ±-2 N |
| Torque | 5 Nm min.- 14 Nm max. applied to nut |
| Panel thickness | 1 (.039) to 6 mm (.236) max. Panel cut-out : Ø 19.2 mm (.755) or Ø 22.2 mm (.874) Min. pitch for matrix |
| LED Color | Red/Green,Bushing Diameters:19mm (0.748in),Bushing Materials:Stainless Steel,Contact Materials:Gold-Plated,Illumination:Illuminated |
| Operating temperature | -30 °C to +70 °C Front panel |
| Max. current/voltage rating with resistive load | 50 mA 24 VDC LED voltage and consumption : 2-colour LED : 2 V (3 V max.) 20 mAOther colours : 2 V (3 V max.) 10 mAA resistor must be series-connected by the user |
