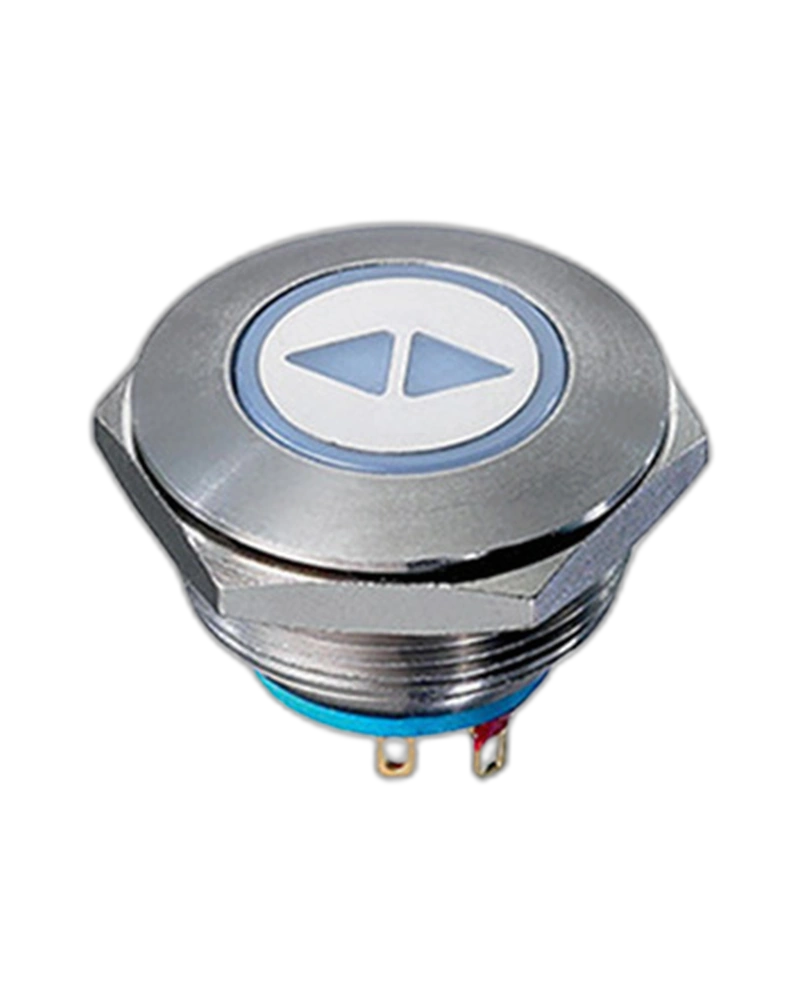

The APEM Panel Switches AV9SLD2487011K is a robust, latching autoswitch designed for industrial applications. Featuring IP67 or IP69K sealing, 30mm x 30mm mounting, and 1,000,000 cycle electrical life, this switch ensures reliable operation in harsh environments. With 2-colour LED indicators and a 50 mA 24 VDC rating, it delivers precise control for demanding systems.
The APEM Panel Switches AV9SLD2487011K is a high-reliability, latching autoswitch engineered for industrial environments. This switch combines robust sealing (IP67 or IP69K), a compact 30mm x 30mm panel mount, and exceptional electrical life (1,000,000 cycles at full load) to ensure consistent performance in challenging conditions. Its 2-colour LED indicators, 50 mA 24 VDC current rating, and 100 mΩ max initial contact resistance make it ideal for applications requiring precise, durable switching with minimal maintenance.
The AV9SLD2487011K offers IP67 or IP69K sealing, providing exceptional protection against dust and water ingress. This dual rating ensures the switch can withstand harsh industrial conditions, including high-pressure washdowns and immersion in water, making it suitable for marine, chemical, and food processing environments.
With a 50 mA 24 VDC current rating and 1,000,000 cycle electrical life, this switch delivers reliable operation in demanding applications. The 100 mΩ max initial contact resistance ensures minimal voltage drop during switching, while the 2-colour LED indicators (2 V, 20 mA) provide clear visual feedback without excessive power consumption.
The switch features a 30mm x 30mm panel mount with a Ø19.2 mm or Ø22.2 mm cut-out, compatible with standard panel thicknesses from 1 mm to 6 mm. Its latching mechanism requires a 7 N ±2 N operating force, ensuring smooth activation without excessive effort.
The AV9SLD2487011K includes three terminal types and uses gold-plated contacts for corrosion resistance. The switch supports a 5 Nm min. to 14 Nm max. torque for nut tightening, ensuring secure connections while accommodating various installation methods.
| Feature | Specification |
|---|---|
| mounting | 30 mm x 30 mm (1.181x1.181) Panel cut-out : Ø 19.2 mm (.755) or Ø 22.2 mm (.874) Min. pitch for matrix |
| Insulation resistance | 1,000 MΩ min. at 500 VDC |
| Dielectric strength | 500 Vrms 50 Hz min. between terminals2,000 Vrms 50 Hz min. between terminals and frame |
| Electrical life | 1,000,000 cycles at full load LED voltage and consumption : 2-colour LED : 2 V (3 V max.) 20 mAOther colours : 2 V (3 V max.) 10 mAA resistor must be series-connected by the user |
| Operating force | 7 N ±-2 N |
| Torque | 5 Nm min.- 14 Nm max. applied to nut |
| Panel thickness | 1 (.039) to 6 mm (.236) max. Panel cut-out : Ø 19.2 mm (.755) or Ø 22.2 mm (.874) Min. pitch for matrix |
| Operating temperature | -30 °C to +70 °C Front panel |
| LED Color | White Bushing Diameters: 19mm (0.748in) Bushing Materials: Stainless Steel Contact Materials: Gold-Plated Illumination: Illuminated Overmolding Colors: Translucent |
| Max. current/voltage rating with resistive load | 50 mA 24 VDC LED voltage and consumption : 2-colour LED : 2 V (3 V max.) 20 mAOther colours : 2 V (3 V max.) 10 mAA resistor must be series-connected by the user |
The APEMPanel Switches AV9SLD2487011K is presented using the documented product characteristics available for this model.
| Feature | Specification |
|---|---|
| mounting | 30 mm x 30 mm (1.181x1.181) Panel cut-out : Ø 19.2 mm (.755) or Ø 22.2 mm (.874) Min. pitch for matrix |
| Insulation resistance | 1,000 MΩ min. at 500 VDC |
| Dielectric strength | 500 Vrms 50 Hz min. between terminals2,000 Vrms 50 Hz min. between terminals and frame |
| Electrical life | 1,000,000 cycles at full load LED voltage and consumption : 2-colour LED : 2 V (3 V max.) 20 mAOther colours : 2 V (3 V max.) 10 mAA resistor must be series-connected by the user |
| Operating force | 7 N ±-2 N |
| Torque | 5 Nm min.- 14 Nm max. applied to nut |
| Panel thickness | 1 (.039) to 6 mm (.236) max. Panel cut-out : Ø 19.2 mm (.755) or Ø 22.2 mm (.874) Min. pitch for matrix |
| Operating temperature | -30 °C to +70 °C Front panel |
| LED Color | White Bushing Diameters: 19mm (0.748in) Bushing Materials: Stainless Steel Contact Materials: Gold-Plated Illumination: Illuminated Overmolding Colors: Translucent |
| Max. current/voltage rating with resistive load | 50 mA 24 VDC LED voltage and consumption : 2-colour LED : 2 V (3 V max.) 20 mAOther colours : 2 V (3 V max.) 10 mAA resistor must be series-connected by the user |
