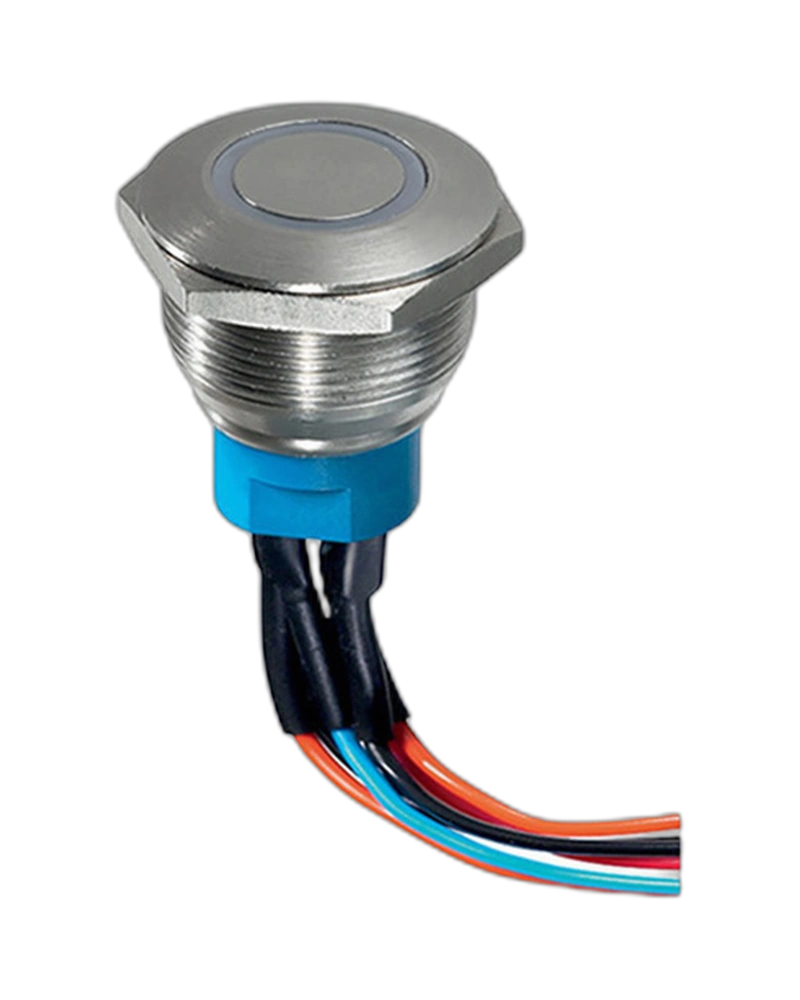

The APEM Panel Switches AV9122C202084BK is a Switches and Pushbutton with documented product-specific characteristics including Sealing: Sealed to IP67; Insulation resistance: 10 MΩ min. at 500 VDC; Dielectric strength: 500 Vrms 50 Hz min. between terminals1,000 Vrms 50 Hz min. between terminals and frame.
| Feature | Specification |
|---|---|
| Length | 20 cm |
| Feature | Specification |
|---|---|
| Sealing | Sealed to IP67 |
| Insulation resistance | 10 MΩ min. at 500 VDC |
| Dielectric strength | 500 Vrms 50 Hz min. between terminals1,000 Vrms 50 Hz min. between terminals and frame |
| Operating temperature | -30 °C to +85 °C Travel : 2 mm ± 0,3 mm (.003) |
| Operating force | 5 N ± 2 N |
| Torque | 1.5 Nm min.- 14 Nm max. applied to nut |
| Panel thickness | 1 (.039) to 6 mm (.236) max. Low level or mechanical life : 1,000,000 cycles Hand soldering : 350 °C, 5 seconds max. Panel cut-out : Ø 19,2 mm (.755) or Ø 22,2 mm (.874) Min. pitch for matrix |
| mounting | 30 mm x 30 mm (1.181x1.181) With illuminated ring Momentary NC/NO Solder lug, flying lead or cable terminals Marking available on request Momentary NC/NO Solder lug, flying lead or cable terminals Marking available on re |
| LED Color | Blue,Bushing Actuator Materials:SAE 316L stainless steel,Contact Materials:Silver,Flying Lead Cable Length:Length 20 cm Standard,Flying Lead Protection:Tube Epoxy |
| Max. current/voltage rating with resistive load | 1 A 30 VDC |
| Feature | Specification |
|---|---|
| Length | 20 cm |
