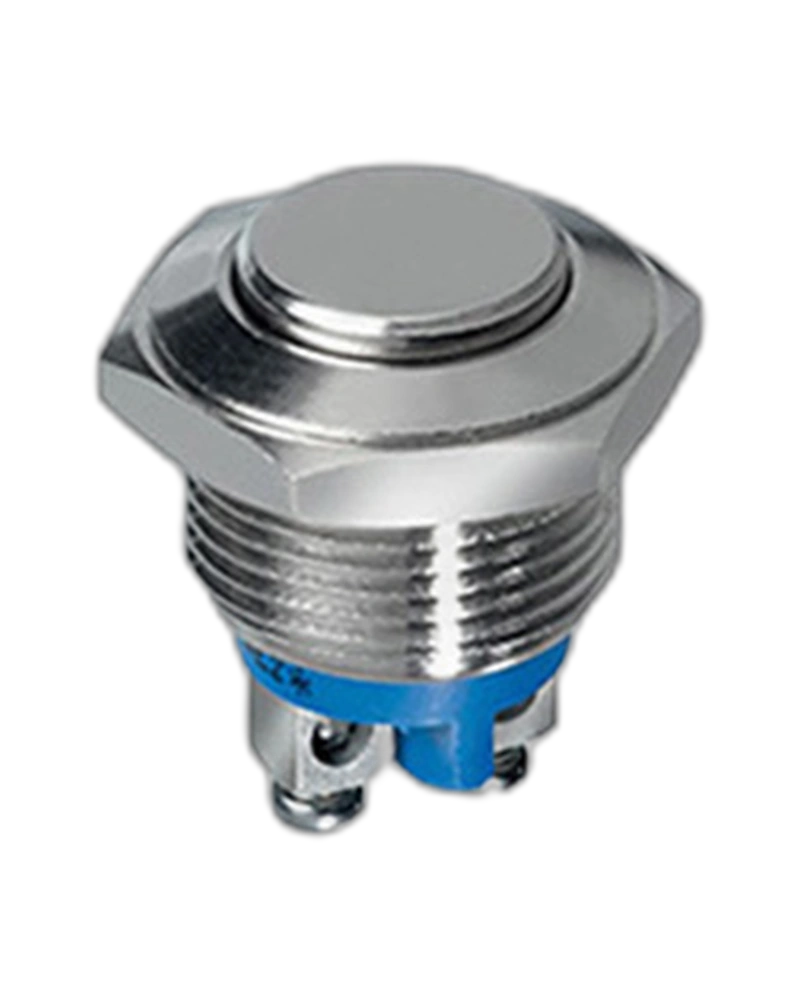

The APEM Panel Switches AV6P30C910K is a robust, IP65-rated autoswitch designed for industrial applications. With a maximum current rating of 200 mA at 48 VDC and 1,000,000 mechanical life cycles, this switch ensures reliable operation in demanding environments. Its brass silver-plated contacts and screw terminals provide superior conductivity and durability for seamless integration into control systems.
The APEM AV6P30C910K Panel Switch is a high-performance, IP65-rated autoswitch engineered for industrial control systems. This switch features brass silver-plated contacts that deliver superior conductivity and long-term durability, making it ideal for applications requiring high reliability and resistance to environmental factors. With a maximum current rating of 200 mA at 48 VDC and 100 mA at 48 VDC for resistive loads, the AV6P30C910K ensures precise switching performance while maintaining a mechanical life of 1,000,000 cycles. Its short case design and screw terminals simplify installation, while the IP65 sealing provides protection against dust and water in harsh industrial settings.
The AV6P30C910K operates within a maximum current rating of 200 mA at 48 VDC for resistive loads, with a minimum initial contact resistance of 50 mΩ. It features a dielectric strength of 2,000 Vrms 50 Hz min. between terminals and frame, ensuring robust electrical isolation. The switch also maintains an insulation resistance of 1,000 MΩ min. at 500 VDC, critical for preventing electrical faults in high-voltage environments.
Engineered for extreme conditions, the AV6P30C910K operates across a temperature range of -30 °C to +70 °C. Its IP65 rating provides comprehensive protection against dust and water ingress, making it suitable for outdoor installations and harsh industrial environments where exposure to contaminants is common.
With a mechanical life of 1,000,000 cycles, the AV6P30C910K ensures long-term reliability in high-traffic applications. The switch features a travel distance of 1.60 mm (.063) ± 0.3 mm (.011), allowing precise and consistent operation without wear over time. The torque requirement for installation ranges from 1.5 Nm min. to 4 Nm max. applied to the nut, ensuring secure and repeatable mounting.
The AV6P30C910K is designed for easy installation with screw terminals and a short case. It fits standard panel thicknesses from 1 mm (.039) to 6 mm (.236) max. The switch has a panel cut-out diameter of Ø 16.2 mm (.637) and a minimum pitch for matrix applications, ensuring compatibility with most industrial control panels and mounting systems.
| Feature | Specification |
|---|---|
| Sealing | IP65 |
| Insulation resistance | 1,000 MΩ min. at 500 VDC |
| Dielectric strength | 2,000 Vrms 50 Hz min. between terminals and frame |
| Operating temperature | -30 °C to +70 °C Travel : 1.60 mm (.063) ± 0.3 mm (.011) |
| Torque | 1.5 Nm min.- 4 Nm max. applied to nut |
| Panel thickness | 1 (.039) to 6 mm (.236) max. Low level or mechanical life : 1,000,000 cycles Panel cut-out : Ø 16.2 mm (.637) Min. pitch for matrix |
| Max. current/voltage rating with resistive load | 200 mA 48 VDC - 100 mA 48 VDC |
| Electrical Functions | Normally Open (NO) |
The APEMPanel Switches AV6P30C910K is presented using the documented product characteristics available for this model.
| Feature | Specification |
|---|---|
| Sealing | IP65 |
| Insulation resistance | 1,000 MΩ min. at 500 VDC |
| Dielectric strength | 2,000 Vrms 50 Hz min. between terminals and frame |
| Operating temperature | -30 °C to +70 °C Travel : 1.60 mm (.063) ± 0.3 mm (.011) |
| Torque | 1.5 Nm min.- 4 Nm max. applied to nut |
| Panel thickness | 1 (.039) to 6 mm (.236) max. Low level or mechanical life : 1,000,000 cycles Panel cut-out : Ø 16.2 mm (.637) Min. pitch for matrix |
| Max. current/voltage rating with resistive load | 200 mA 48 VDC - 100 mA 48 VDC |
| Electrical Functions | Normally Open (NO) |
