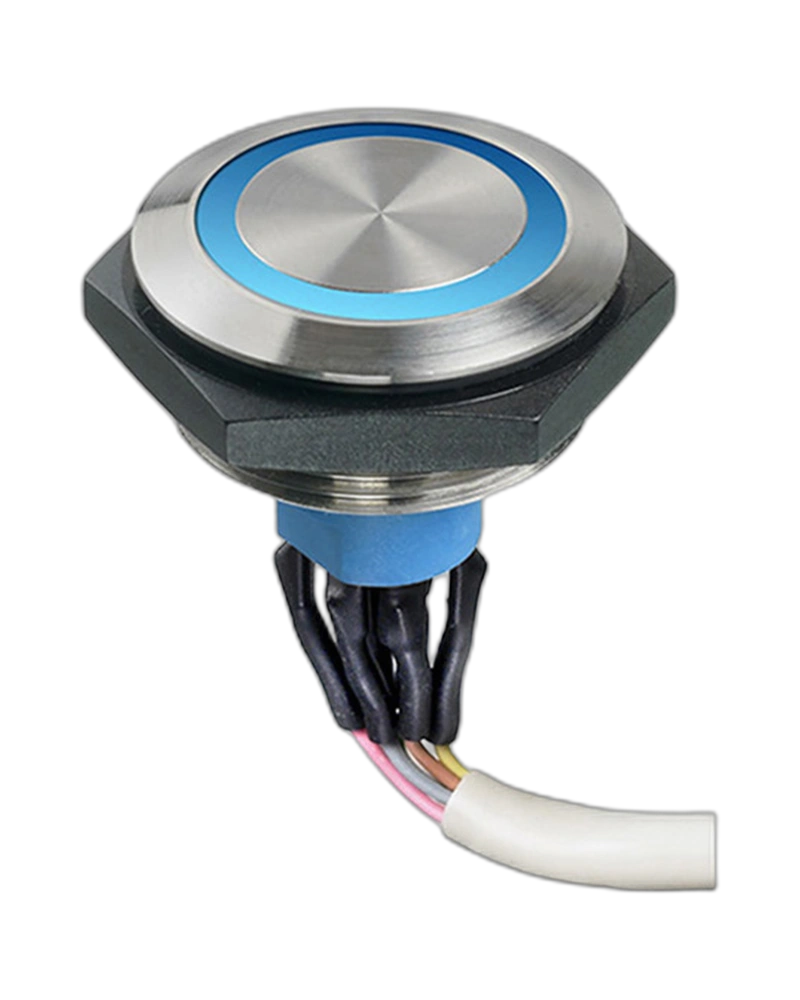

The AV5V02C102034BK Panel Switch features durable silver contacts for excellent conductivity and easy installation with convenient cable terminals. Perfect for reliable device control. Select Quantity
| Feature | Specification |
|---|---|
| Force | 2 N |
| Length | 20 cm |
| voltage | 12 V |
| Torque | 10 Nm |
| Feature | Specification |
|---|---|
| Sealing | Sealed to IP67 |
| Initial contact resistance | 100 m Ω max. |
| Insulation resistance | 10 M Ω min. at 500 VDC |
| Dielectric strength | 500 Vrms 50 Hz min. between terminals 1,000 Vrms 50 Hz min. between terminals and frame |
| Operating force | 5 N ± 2 N LED voltage : 12 VDC, 24 VDC or 48 VDC(If not supplied by APEM, a resistor must be series-connected by the user) |
| Panel thickness | 1 (.039) to 6 mm (.236) max. Low level or mechanical life : 1,000,000 cycles |
| LED Color | Green,Bushing Actuator Materials:SAE 316L stainless steel,Bushing Diameters:30mm (1.181in),Contact Materials:Silver,Flying Lead Cable Length:Length 20 cm Standard,Flying Lead Protection:Heat-shrink Sleeves |
| Operating temperature | -30 °C to +85 °C Hand soldering : 350 °C, 5 seconds max. Packaging unit : flying lead/cable models : 1 piece - other models : 25 pieces Hand soldering : 350 °C, 5 seconds max. Packaging unit : flying lead/cable models |
| Max. current/voltage rating with resistive load | 1 A 30 VDC LED voltage : 12 VDC, 24 VDC or 48 VDC(If not supplied by APEM, a resistor must be series-connected by the user) |
| Feature | Specification |
|---|---|
| Length | 20 cm |
| voltage | 12 V |
| Torque | 10 Nm |
