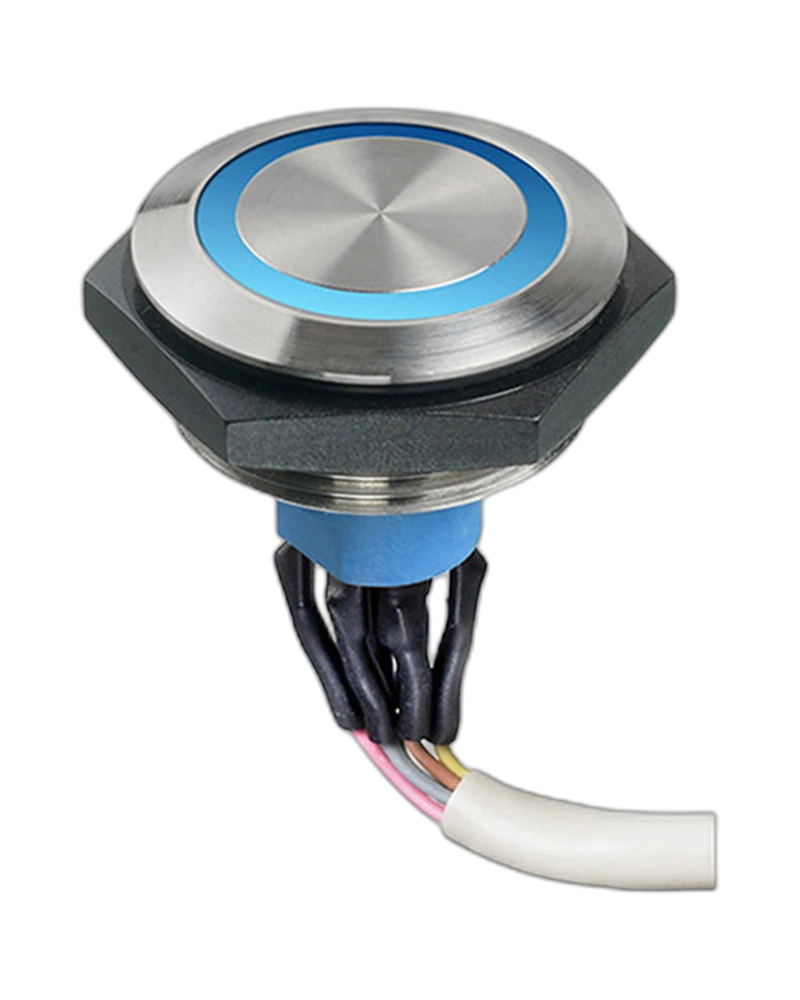

The APEM Panel Switches AV51022000084BK is a robust autoswitch designed for industrial applications. Featuring sealed IP67 protection, momentary NC+NO functionality, and anodized actuators, it delivers reliable performance with a low contact resistance of 100 mΩ max and insulation resistance of 10 MΩ min at 500 VDC. Ideal for demanding environments requiring high electrical life and durability.
The APEM Panel Switches AV51022000084BK is a high-reliability momentary NC+NO autoswitch engineered for industrial use. With sealed IP67 protection against dust and water ingress, this switch ensures consistent operation in harsh environments. Its anodized actuators provide extended mechanical life, while the low initial contact resistance (100 mΩ max) and high insulation resistance (10 MΩ min at 500 VDC) ensure minimal electrical interference and robust performance. Designed for applications requiring precise switching under extreme conditions, the AV51022000084BK delivers exceptional durability with 1,000,000 cycles of mechanical life and 250,000 cycles of electrical life at full load.
The AV51022000084BK operates within a voltage range of 12 VDC, 24 VDC, or 48 VDC (with a series resistor required if not supplied by APEM). It supports a maximum current of 1 A at 30 VDC for resistive loads. The switch features a dielectric strength of 500 Vrms 50 Hz min. between terminals and 1,000 Vrms 50 Hz min. between terminals and frame, ensuring reliable electrical isolation under demanding conditions.
Engineered for extreme environments, the AV51022000084BK operates across a wide temperature range from -30 °C to +85 °C. Its sealed IP67 rating provides protection against dust and water immersion, making it suitable for outdoor installations and industrial settings where exposure to harsh conditions is common.
The switch features a robust construction with solder lug terminals for secure connections and anodized actuators that enhance longevity. Its mechanical life of 1,000,000 cycles and electrical life of 250,000 cycles at full load ensure long-term reliability in high-stress applications. Hand soldering is possible at 350 °C for up to 5 seconds.
The AV51022000084BK is ideal for industrial control panels, machinery, and automation systems requiring momentary switching with high durability. Its quick-connect terminals simplify installation, while the momentary NC+NO functionality allows for versatile circuit control without the need for additional components.
| Feature | Specification |
|---|---|
| Sealing | Sealed to IP67 |
| Initial contact resistance | 100 m Ω max. |
| Insulation resistance | 10 M Ω min. at 500 VDC |
| Dielectric strength | 500 Vrms 50 Hz min. between terminals 1,000 Vrms 50 Hz min. between terminals and frame |
| Operating force | 5 N ± 2 N LED voltage : 12 VDC, 24 VDC or 48 VDC(If not supplied by APEM, a resistor must be series-connected by the user) |
| Panel thickness | 1 (.039) to 6 mm (.236) max. Low level or mechanical life : 1,000,000 cycles |
| Operating temperature | -30 °C to +85 °C Hand soldering : 350 °C, 5 seconds max. Packaging unit : flying lead/cable models : 1 piece - other models : 25 pieces Hand soldering : 350 °C, 5 seconds max. Packaging unit : flying lead/cable models |
| Max. current/voltage rating with resistive load | 1 A 30 VDC LED voltage : 12 VDC, 24 VDC or 48 VDC(If not supplied by APEM, a resistor must be series-connected by the user) |
| Feature | Specification |
|---|---|
| voltage | 12 V |
| Torque | 10 Nm |
The APEMPanel Switches AV51022000084BK is presented using the documented product characteristics available for this model.
| Feature | Specification |
|---|---|
| Sealing | Sealed to IP67 |
| Initial contact resistance | 100 m Ω max. |
| Insulation resistance | 10 M Ω min. at 500 VDC |
| Dielectric strength | 500 Vrms 50 Hz min. between terminals 1,000 Vrms 50 Hz min. between terminals and frame |
| Operating force | 5 N ± 2 N LED voltage : 12 VDC, 24 VDC or 48 VDC(If not supplied by APEM, a resistor must be series-connected by the user) |
| Panel thickness | 1 (.039) to 6 mm (.236) max. Low level or mechanical life : 1,000,000 cycles |
| Operating temperature | -30 °C to +85 °C Hand soldering : 350 °C, 5 seconds max. Packaging unit : flying lead/cable models : 1 piece - other models : 25 pieces Hand soldering : 350 °C, 5 seconds max. Packaging unit : flying lead/cable models |
| Max. current/voltage rating with resistive load | 1 A 30 VDC LED voltage : 12 VDC, 24 VDC or 48 VDC(If not supplied by APEM, a resistor must be series-connected by the user) |
| Feature | Specification |
|---|---|
| voltage | 12 V |
| Torque | 10 Nm |
