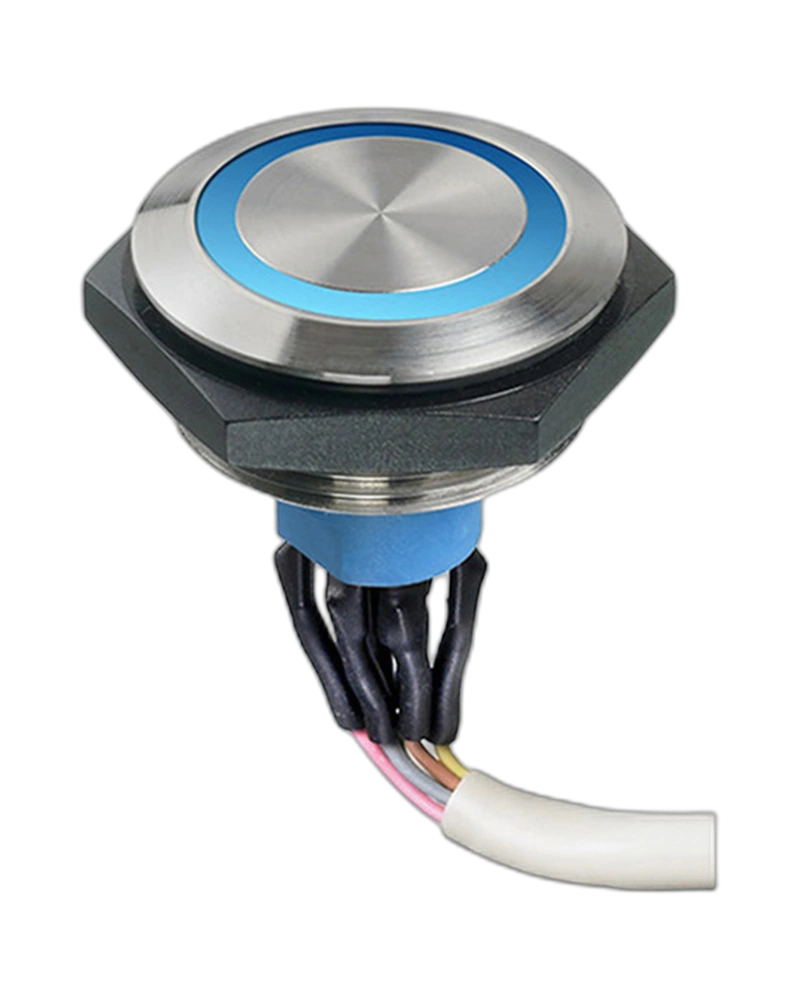

The APEM Panel Switches AV51022000074BK is a robust autoswitch designed for industrial applications. With sealed IP67 protection, low contact resistance (100 mΩ max), and high insulation resistance (10 MΩ min at 500 VDC), it ensures reliable operation in demanding environments. This momentary NC/NO switch supports 12V/24V/48V DC systems and features anodized actuators for extended life and durability.
The APEM Panel Switches AV51022000074BK is a high-reliability momentary NC/NO autoswitch engineered for industrial control systems. Its sealed IP67 rating provides exceptional protection against dust and water ingress, while the low initial contact resistance (100 mΩ max) and high insulation resistance (10 MΩ min at 500 VDC) ensure precise electrical performance. Designed for environments with extreme temperature ranges (-30°C to +85°C), this switch delivers up to 1,000,000 mechanical cycles and 250,000 electrical cycles at full load, making it ideal for critical applications requiring long-term stability and minimal maintenance.
The AV51022000074BK operates within a wide voltage range (12V/24V/48V DC), with a maximum current rating of 1A at 30V DC for resistive loads. It features a low initial contact resistance (100 mΩ max) and high insulation resistance (10 MΩ min at 500 VDC), ensuring reliable performance under demanding electrical conditions. The dielectric strength is rated at 500 Vrms 50 Hz between terminals and 1,000 Vrms 50 Hz between terminals and frame.
Engineered for extreme conditions, this switch operates across a broad temperature range (-30°C to +85°C) and maintains IP67 sealing to protect against dust and water ingress. The robust construction, including SAE 316L stainless steel bushings and silver contacts, ensures durability in harsh industrial environments without compromising electrical integrity.
With a mechanical life of 1,000,000 cycles and electrical life of 250,000 cycles at full load, the AV51022000074BK is designed for long-term reliability. The switch features a mushroom-shaped actuator that requires minimal force (2 N) for operation, reducing wear and extending service life.
The switch uses solder lugs for terminal connections and is compatible with flying lead/cable models (1 piece per unit). For 12V/24V/48V DC systems, a series resistor is required if the power source is not provided by APEM. The IP67 rating ensures suitability for outdoor or wet environments without additional sealing.
| Feature | Specification |
|---|---|
| Sealing | Sealed to IP67 |
| Initial contact resistance | 100 m Ω max. |
| Insulation resistance | 10 M Ω min. at 500 VDC |
| Dielectric strength | 500 Vrms 50 Hz min. between terminals 1,000 Vrms 50 Hz min. between terminals and frame |
| Operating force | 5 N ± 2 N LED voltage : 12 VDC, 24 VDC or 48 VDC(If not supplied by APEM, a resistor must be series-connected by the user) |
| Panel thickness | 1 (.039) to 6 mm (.236) max. Low level or mechanical life : 1,000,000 cycles |
| Operating temperature | -30 °C to +85 °C Hand soldering : 350 °C, 5 seconds max. Packaging unit : flying lead/cable models : 1 piece - other models : 25 pieces Hand soldering : 350 °C, 5 seconds max. Packaging unit : flying lead/cable models |
| LED Color | Blue,Bushing Actuator Materials:SAE 316L stainless steel,Bushing Diameters:30mm (1.181in),Contact Materials:Silver,Flying Lead Cable Length:No Flying Leads, No Cable,Flying Lead Protection:No Protection and/or No Flying |
| Max. current/voltage rating with resistive load | 1 A 30 VDC LED voltage : 12 VDC, 24 VDC or 48 VDC(If not supplied by APEM, a resistor must be series-connected by the user) |
| Feature | Specification |
|---|---|
| voltage | 12 V |
| Torque | 10 Nm |
The APEMPanel Switches AV51022000074BK is presented using the documented product characteristics available for this model.
| Feature | Specification |
|---|---|
| Sealing | Sealed to IP67 |
| Initial contact resistance | 100 m Ω max. |
| Insulation resistance | 10 M Ω min. at 500 VDC |
| Dielectric strength | 500 Vrms 50 Hz min. between terminals 1,000 Vrms 50 Hz min. between terminals and frame |
| Operating force | 5 N ± 2 N LED voltage : 12 VDC, 24 VDC or 48 VDC(If not supplied by APEM, a resistor must be series-connected by the user) |
| Panel thickness | 1 (.039) to 6 mm (.236) max. Low level or mechanical life : 1,000,000 cycles |
| Operating temperature | -30 °C to +85 °C Hand soldering : 350 °C, 5 seconds max. Packaging unit : flying lead/cable models : 1 piece - other models : 25 pieces Hand soldering : 350 °C, 5 seconds max. Packaging unit : flying lead/cable models |
| LED Color | Blue,Bushing Actuator Materials:SAE 316L stainless steel,Bushing Diameters:30mm (1.181in),Contact Materials:Silver,Flying Lead Cable Length:No Flying Leads, No Cable,Flying Lead Protection:No Protection and/or No Flying |
| Max. current/voltage rating with resistive load | 1 A 30 VDC LED voltage : 12 VDC, 24 VDC or 48 VDC(If not supplied by APEM, a resistor must be series-connected by the user) |
| Feature | Specification |
|---|---|
| voltage | 12 V |
| Torque | 10 Nm |
