Explore performance details, construction highlights, applications, and technical information in one clear overview.

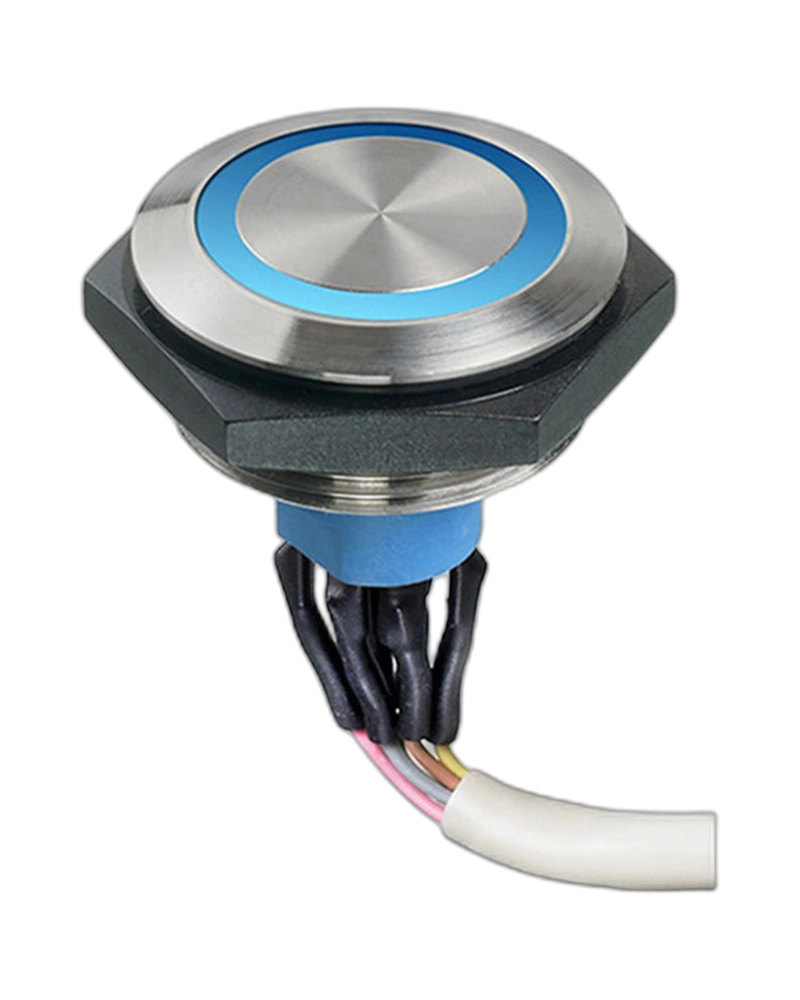

The APEM Panel Switches AV5002F102024BK is a robust, sealed autoswitch designed for industrial applications. Featuring an IP67-rated housing, momentary NC+NO functionality, and a 100 mΩ max contact resistance, this switch ensures reliable operation in harsh environments. With a 250,000-cycle electrical life and 1,000,000-cycle mechanical life, it delivers exceptional durability for demanding industrial systems.
The APEM Panel Switches AV5002F102024BK is a high-reliability, sealed autoswitch engineered for industrial environments. This momentary NC+NO switch combines anodized actuators with a robust SAE 316L stainless steel bushing for exceptional corrosion resistance and long service life. Its IP67 sealing ensures protection against dust, water, and harsh conditions, while the 100 mΩ max contact resistance and 10 MΩ insulation resistance at 500 VDC guarantee precise electrical performance. Designed for applications requiring high cycle durability, this switch delivers 1,000,000 mechanical cycles and 250,000 electrical cycles at full load, making it ideal for critical industrial control systems where reliability is paramount.
The AV5002F102024BK operates within a 12 VDC, 24 VDC, or 48 VDC range (with a series resistor required if not supplied by APEM). It supports a maximum current of 1 A at 30 VDC for resistive loads and features 500 Vrms 50 Hz dielectric strength between terminals, ensuring safe operation in high-voltage environments.
Engineered for extreme conditions, this switch operates reliably from -30°C to +85°C and is sealed to IP67, providing protection against dust, water, and corrosive environments. The SAE 316L stainless steel bushing ensures long-term resistance to chemical exposure and mechanical wear.
Constructed with anodized actuators and a SAE 316L stainless steel bushing (30 mm diameter), the AV5002F102024BK offers exceptional durability and corrosion resistance. The switch features a 20 cm flying lead cable with heat-shrink sleeves for secure cable protection and a 10 Nm torque specification for reliable installation.
With a 1,000,000-cycle mechanical life and 250,000-cycle electrical life at full load, this switch is designed for high-stress industrial applications. The 5 N ± 2 N operating force ensures smooth actuation, while the 2 N force requirement minimizes user effort during operation.
| Feature | Specification |
|---|---|
| LED Color | No LED,Bushing Actuator Materials:SAE 316L stainless steel,Bushing Diameters:30mm (1.181in),Contact Materials:Silver,Flying Lead Cable Length:Length 20 cm Standard,Flying Lead Protection:Heat-shrink Sleeves |
| Sealing | Sealed to IP67 |
| Initial contact resistance | 100 m Ω max. |
| Insulation resistance | 10 M Ω min. at 500 VDC |
| Dielectric strength | 500 Vrms 50 Hz min. between terminals 1,000 Vrms 50 Hz min. between terminals and frame |
| Operating force | 5 N ± 2 N LED voltage : 12 VDC, 24 VDC or 48 VDC(If not supplied by APEM, a resistor must be series-connected by the user) |
| Panel thickness | 1 (.039) to 6 mm (.236) max. Low level or mechanical life : 1,000,000 cycles |
| Operating temperature | -30 °C to +85 °C Hand soldering : 350 °C, 5 seconds max. Packaging unit : flying lead/cable models : 1 piece - other models : 25 pieces Hand soldering : 350 °C, 5 seconds max. Packaging unit : flying lead/cable models |
| Max. current/voltage rating with resistive load | 1 A 30 VDC LED voltage : 12 VDC, 24 VDC or 48 VDC(If not supplied by APEM, a resistor must be series-connected by the user) |
| Feature | Specification |
|---|---|
| Length | 20 cm |
| voltage | 12 V |
| Torque | 10 Nm |
The APEMPanel Switches AV5002F102024BK is presented using the documented product characteristics available for this model.
| Feature | Specification |
|---|---|
| LED Color | No LED,Bushing Actuator Materials:SAE 316L stainless steel,Bushing Diameters:30mm (1.181in),Contact Materials:Silver,Flying Lead Cable Length:Length 20 cm Standard,Flying Lead Protection:Heat-shrink Sleeves |
| Sealing | Sealed to IP67 |
| Initial contact resistance | 100 m Ω max. |
| Insulation resistance | 10 M Ω min. at 500 VDC |
| Dielectric strength | 500 Vrms 50 Hz min. between terminals 1,000 Vrms 50 Hz min. between terminals and frame |
| Operating force | 5 N ± 2 N LED voltage : 12 VDC, 24 VDC or 48 VDC(If not supplied by APEM, a resistor must be series-connected by the user) |
| Panel thickness | 1 (.039) to 6 mm (.236) max. Low level or mechanical life : 1,000,000 cycles |
| Operating temperature | -30 °C to +85 °C Hand soldering : 350 °C, 5 seconds max. Packaging unit : flying lead/cable models : 1 piece - other models : 25 pieces Hand soldering : 350 °C, 5 seconds max. Packaging unit : flying lead/cable models |
| Max. current/voltage rating with resistive load | 1 A 30 VDC LED voltage : 12 VDC, 24 VDC or 48 VDC(If not supplied by APEM, a resistor must be series-connected by the user) |
| Feature | Specification |
|---|---|
| Length | 20 cm |
| voltage | 12 V |
| Torque | 10 Nm |
