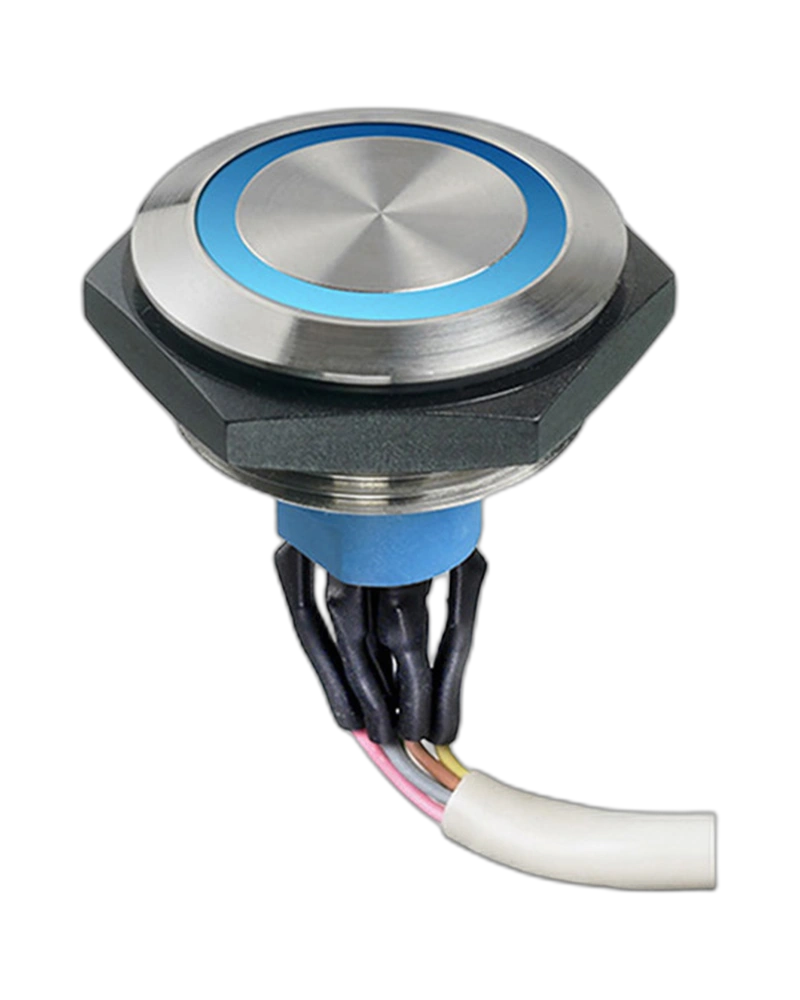

The APEM Panel Switches AV5002C2020200 is a robust autoswitch designed for industrial applications. Featuring momentary NC+NO functionality, anodized actuators, and IP65 sealing, this switch delivers reliable performance with a low contact resistance of 100 mΩ max and insulation resistance of 10 MΩ min at 500 VDC. Ideal for demanding environments requiring high electrical life and durability.
The APEM Panel Switches AV5002C2020200 is a high-reliability autoswitch engineered for industrial control systems. This momentary NC+NO switch combines anodized actuators with IP65 sealing to ensure robust performance in harsh environments. With a maximum contact resistance of 100 mΩ and insulation resistance of 10 MΩ at 500 VDC, it provides precise switching for critical applications. The switch supports 12 VDC, 24 VDC, or 48 VDC operation with a standard flying lead cable length of 20 cm, making it suitable for both low-voltage and high-reliability industrial installations.
The AV5002C2020200 operates within a voltage range of 12 VDC, 24 VDC, or 48 VDC. It features a maximum current rating of 1 A at 30 VDC for resistive loads. The switch includes an LED indicator that requires a series resistor if not supplied by APEM. Electrical life is rated at 250,000 cycles under full load conditions.
Engineered for extreme conditions, this switch operates across a temperature range of -30 °C to +85 °C. Its IP65 rating ensures protection against dust and water ingress, making it suitable for outdoor or harsh industrial environments. The sealed construction also supports long-term reliability without maintenance.
The switch has a standard flying lead cable length of 20 cm with epoxy tube protection. It features a nickel-plated brass bushing and silver contacts for optimal conductivity and corrosion resistance. The operating force is 5 N ± 2 N, with a momentary actuator requiring 2 N force for reliable operation.
With a mechanical life of 1,000,000 cycles and electrical life of 250,000 cycles at full load, the AV5002C2020200 is designed for extended service in demanding applications. The switch maintains low contact resistance (100 mΩ max) and high insulation resistance (10 MΩ min at 500 VDC) throughout its operational life.
| Feature | Specification |
|---|---|
| Initial contact resistance | 100 m Ω max. |
| Insulation resistance | 10 M Ω min. at 500 VDC |
| Dielectric strength | 500 Vrms 50 Hz min. between terminals 1,000 Vrms 50 Hz min. between terminals and frame |
| Operating force | 5 N ± 2 N LED voltage : 12 VDC, 24 VDC or 48 VDC(If not supplied by APEM, a resistor must be series-connected by the user) |
| Panel thickness | 1 (.039) to 6 mm (.236) max. Low level or mechanical life : 1,000,000 cycles |
| LED Color | No LED,Bushing Actuator Materials:Nickel-Plated Brass,Bushing Diameters:30mm (1.181in),Contact Materials:Silver,Flying Lead Cable Length:Length 20 cm Standard,Flying Lead Protection:Tube Epoxy |
| Operating temperature | -30 °C to +85 °C Hand soldering : 350 °C, 5 seconds max. Packaging unit : flying lead/cable models : 1 piece - other models : 25 pieces Hand soldering : 350 °C, 5 seconds max. Packaging unit : flying lead/cable models |
| Max. current/voltage rating with resistive load | 1 A 30 VDC LED voltage : 12 VDC, 24 VDC or 48 VDC(If not supplied by APEM, a resistor must be series-connected by the user) |
| Feature | Specification |
|---|---|
| Length | 20 cm |
| voltage | 12 V |
| Torque | 10 Nm |
The APEMPanel Switches AV5002C2020200 is presented using the documented product characteristics available for this model.
| Feature | Specification |
|---|---|
| Initial contact resistance | 100 m Ω max. |
| Insulation resistance | 10 M Ω min. at 500 VDC |
| Dielectric strength | 500 Vrms 50 Hz min. between terminals 1,000 Vrms 50 Hz min. between terminals and frame |
| Operating force | 5 N ± 2 N LED voltage : 12 VDC, 24 VDC or 48 VDC(If not supplied by APEM, a resistor must be series-connected by the user) |
| Panel thickness | 1 (.039) to 6 mm (.236) max. Low level or mechanical life : 1,000,000 cycles |
| LED Color | No LED,Bushing Actuator Materials:Nickel-Plated Brass,Bushing Diameters:30mm (1.181in),Contact Materials:Silver,Flying Lead Cable Length:Length 20 cm Standard,Flying Lead Protection:Tube Epoxy |
| Operating temperature | -30 °C to +85 °C Hand soldering : 350 °C, 5 seconds max. Packaging unit : flying lead/cable models : 1 piece - other models : 25 pieces Hand soldering : 350 °C, 5 seconds max. Packaging unit : flying lead/cable models |
| Max. current/voltage rating with resistive load | 1 A 30 VDC LED voltage : 12 VDC, 24 VDC or 48 VDC(If not supplied by APEM, a resistor must be series-connected by the user) |
| Feature | Specification |
|---|---|
| Length | 20 cm |
| voltage | 12 V |
| Torque | 10 Nm |
