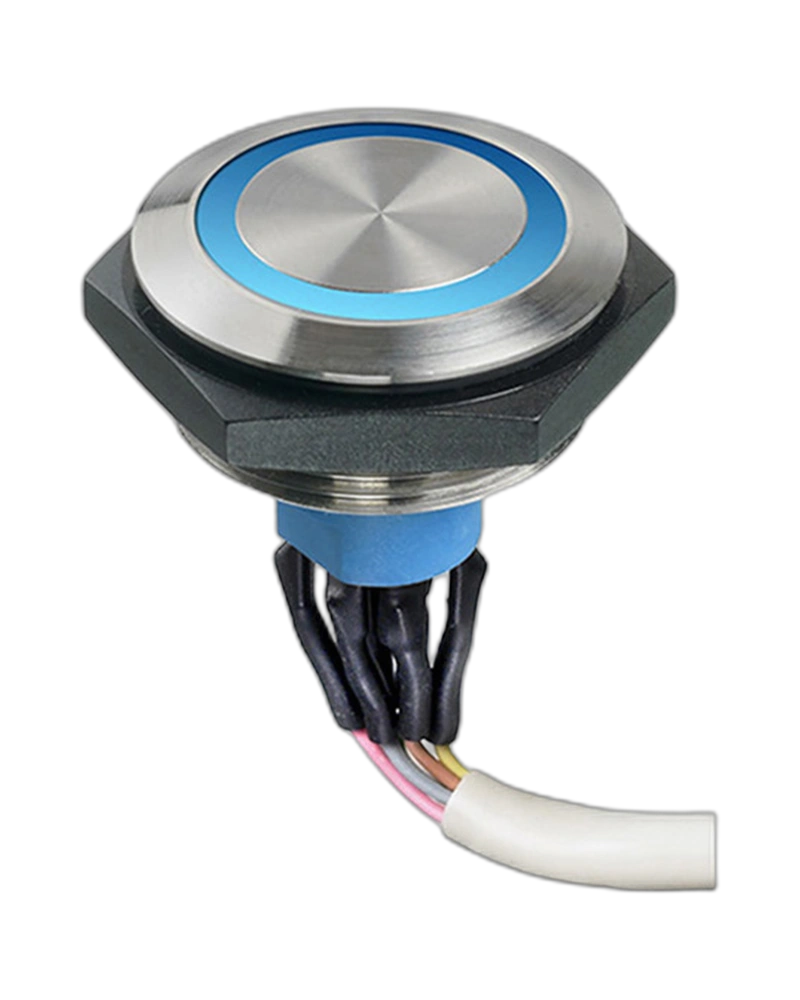

The APEM Panel Switches AV500220000300K is a sealed, high-reliability autoswitch designed for industrial applications. With an IP67 rating, 100 mΩ max initial contact resistance, and 250,000 cycles electrical life, this switch ensures robust performance in demanding environments. Ideal for systems requiring momentary NC/NO functionality and long-term durability.
The APEM Panel Switches AV500220000300K is a high-reliability autoswitch engineered for industrial use, featuring a sealed IP67 rating to protect against dust and water ingress. This switch delivers precise electrical performance with a maximum initial contact resistance of 100 mΩ and an insulation resistance of 10 MΩ at 500 VDC. Designed for applications requiring momentary NC/NO functionality, it offers exceptional durability with 250,000 cycles of electrical life and 1,000,000 cycles of mechanical life. The switch operates within a temperature range of -30°C to +85°C, making it suitable for extreme environmental conditions.
The AV500220000300K operates within a voltage range of 12 VDC, 24 VDC, or 48 VDC (with a series resistor required if not supplied by APEM). It supports a maximum current rating of 1 A at 30 VDC for resistive loads. The switch features a 5 N ± 2 N operating force and 2 N force for actuation, ensuring smooth operation under varying loads.
Engineered for extreme conditions, this switch maintains functionality across a wide temperature range from -30°C to +85°C. Its IP67 sealing ensures protection against dust and water ingress, while the nickel-plated brass bushing materials provide corrosion resistance and long-term durability in harsh industrial settings.
The AV500220000300K is designed for exceptional longevity with a mechanical life of 1,000,000 cycles and electrical life of 250,000 cycles at full load. The switch features anodized actuators that resist wear and maintain consistent performance over extended periods, even in high-vibration environments.
Constructed with nickel-plated brass bushings and silver contacts, the AV500220000300K ensures reliable electrical connections and corrosion resistance. The switch includes a 30mm (1.181in) bushing diameter and operates with a 10 Nm torque for secure installation. No flying leads are included, requiring soldering to solder lugs for terminal connections.
| Feature | Specification |
|---|---|
| Sealing | Sealed to IP67 |
| Initial contact resistance | 100 m Ω max. |
| Insulation resistance | 10 M Ω min. at 500 VDC |
| Dielectric strength | 500 Vrms 50 Hz min. between terminals 1,000 Vrms 50 Hz min. between terminals and frame |
| Operating force | 5 N ± 2 N LED voltage : 12 VDC, 24 VDC or 48 VDC(If not supplied by APEM, a resistor must be series-connected by the user) |
| Panel thickness | 1 (.039) to 6 mm (.236) max. Low level or mechanical life : 1,000,000 cycles |
| LED Color | No LED,Bushing Actuator Materials:Nickel-Plated Brass,Bushing Diameters:30mm (1.181in),Contact Materials:Silver,Flying Lead Cable Length:No Flying Leads, No Cable,Flying Lead Protection:No Protection and/or No Flying Lea |
| Operating temperature | -30 °C to +85 °C Hand soldering : 350 °C, 5 seconds max. Packaging unit : flying lead/cable models : 1 piece - other models : 25 pieces Hand soldering : 350 °C, 5 seconds max. Packaging unit : flying lead/cable models |
| Max. current/voltage rating with resistive load | 1 A 30 VDC LED voltage : 12 VDC, 24 VDC or 48 VDC(If not supplied by APEM, a resistor must be series-connected by the user) |
| Feature | Specification |
|---|---|
| voltage | 12 V |
| Torque | 10 Nm |
The APEMPanel Switches AV500220000300K is presented using the documented product characteristics available for this model.
| Feature | Specification |
|---|---|
| Sealing | Sealed to IP67 |
| Initial contact resistance | 100 m Ω max. |
| Insulation resistance | 10 M Ω min. at 500 VDC |
| Dielectric strength | 500 Vrms 50 Hz min. between terminals 1,000 Vrms 50 Hz min. between terminals and frame |
| Operating force | 5 N ± 2 N LED voltage : 12 VDC, 24 VDC or 48 VDC(If not supplied by APEM, a resistor must be series-connected by the user) |
| Panel thickness | 1 (.039) to 6 mm (.236) max. Low level or mechanical life : 1,000,000 cycles |
| LED Color | No LED,Bushing Actuator Materials:Nickel-Plated Brass,Bushing Diameters:30mm (1.181in),Contact Materials:Silver,Flying Lead Cable Length:No Flying Leads, No Cable,Flying Lead Protection:No Protection and/or No Flying Lea |
| Operating temperature | -30 °C to +85 °C Hand soldering : 350 °C, 5 seconds max. Packaging unit : flying lead/cable models : 1 piece - other models : 25 pieces Hand soldering : 350 °C, 5 seconds max. Packaging unit : flying lead/cable models |
| Max. current/voltage rating with resistive load | 1 A 30 VDC LED voltage : 12 VDC, 24 VDC or 48 VDC(If not supplied by APEM, a resistor must be series-connected by the user) |
| Feature | Specification |
|---|---|
| voltage | 12 V |
| Torque | 10 Nm |
