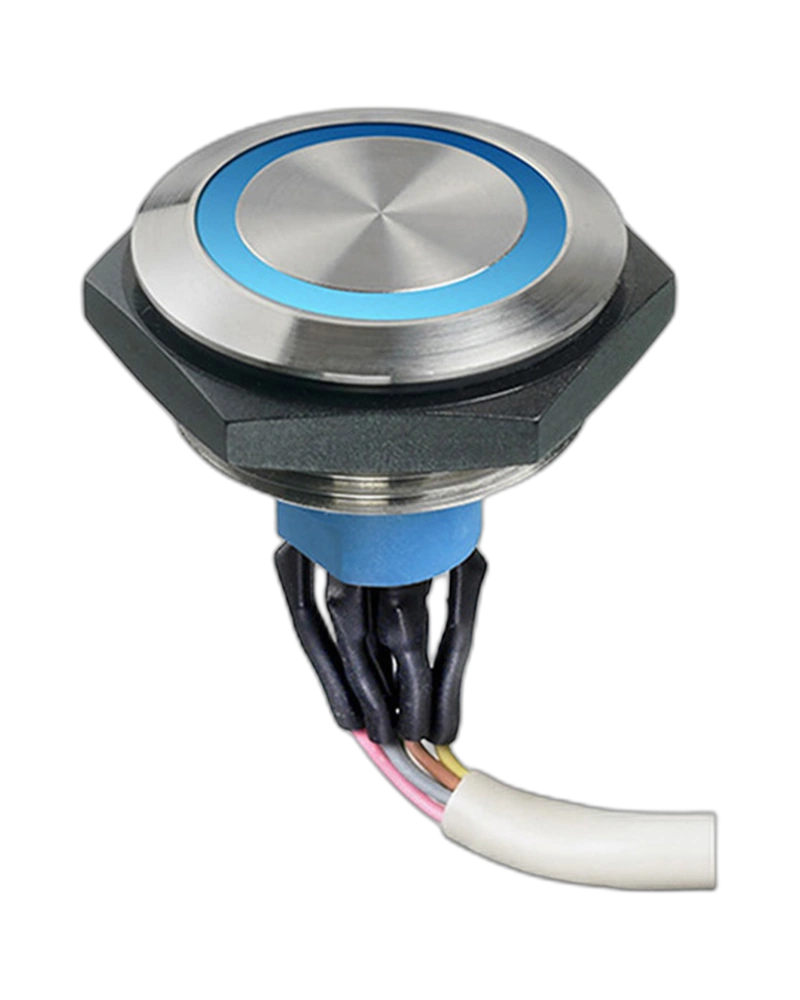

The APEM Panel Switches AV500220000200K is a sealed, momentary NC+NO switch designed for industrial applications. With an IP67 rating, 100 mΩ max initial contact resistance, and 250,000 cycles electrical life, it ensures reliable operation in harsh environments. Ideal for systems requiring robust, long-lasting switching solutions.
The APEM Panel Switches AV500220000200K is a high-reliability, sealed momentary NC+NO switch engineered for demanding industrial environments. Featuring an IP67 rating, this switch delivers exceptional durability with a maximum initial contact resistance of 100 mΩ and electrical life of 250,000 cycles at full load. Its robust construction, including anodized brass actuators and nickel-plated brass bushings, ensures consistent performance across extreme temperature ranges from -30°C to +85°C. The switch supports 12 VDC, 24 VDC, or 48 VDC LED voltages (with a user-supplied resistor required for non-APEM supplies) and is designed for applications requiring high mechanical and electrical resilience.
The AV500220000200K operates within a voltage range of 12 VDC, 24 VDC, or 48 VDC (with a user-supplied resistor required for non-APEM supplies). It supports a maximum current rating of 1 A for resistive loads at 30 VDC. The switch features an initial contact resistance of 100 mΩ max and an insulation resistance of 10 MΩ min at 500 VDC. Dielectric strength is 500 Vrms 50 Hz min. between terminals and 1,000 Vrms 50 Hz min. between terminals and frame.
Engineered for extreme conditions, the switch operates across a temperature range of -30°C to +85°C. Its IP67 sealing provides robust protection against dust and water immersion, while the anodized actuators and nickel-plated brass bushings ensure long-term corrosion resistance in industrial settings.
The AV500220000200K is designed for high mechanical stress with a torque rating of 10 Nm max and an operating force of 5 N ± 2 N. It features a low-level or mechanical life of 1,000,000 cycles, making it suitable for applications requiring repeated switching without degradation.
This switch is ideal for industrial control panels where reliable, sealed switching is critical. Its momentary NC+NO functionality allows for precise control of circuits in machinery, automation systems, and equipment requiring high-cycle switching without maintenance.
| Feature | Specification |
|---|---|
| Sealing | Sealed to IP67 |
| Initial contact resistance | 100 m Ω max. |
| Insulation resistance | 10 M Ω min. at 500 VDC |
| Dielectric strength | 500 Vrms 50 Hz min. between terminals 1,000 Vrms 50 Hz min. between terminals and frame |
| Operating force | 5 N ± 2 N LED voltage : 12 VDC, 24 VDC or 48 VDC(If not supplied by APEM, a resistor must be series-connected by the user) |
| Panel thickness | 1 (.039) to 6 mm (.236) max. Low level or mechanical life : 1,000,000 cycles |
| Torque | 10 Nm max. |
| Operating temperature | -30 °C to +85 °C Hand soldering : 350 °C, 5 seconds max. Packaging unit : flying lead/cable models : 1 piece - other models : 25 pieces Hand soldering : 350 °C, 5 seconds max. Packaging unit : flying lead/cable models |
| LED Color | No LED,Bushing Actuator Materials:Nickel-Plated Brass,Bushing Diameters:30mm (1.181in),Contact Materials:Silver,Flying Lead Cable Length:No Flying Leads, No Cable,Flying Lead Protection:No Protection and/or No Flying Lea |
| Max. current/voltage rating with resistive load | 1 A 30 VDC LED voltage : 12 VDC, 24 VDC or 48 VDC(If not supplied by APEM, a resistor must be series-connected by the user) |
| Feature | Specification |
|---|---|
| voltage | 12 V |
The APEMPanel Switches AV500220000200K is presented using the documented product characteristics available for this model.
| Feature | Specification |
|---|---|
| Sealing | Sealed to IP67 |
| Initial contact resistance | 100 m Ω max. |
| Insulation resistance | 10 M Ω min. at 500 VDC |
| Dielectric strength | 500 Vrms 50 Hz min. between terminals 1,000 Vrms 50 Hz min. between terminals and frame |
| Operating force | 5 N ± 2 N LED voltage : 12 VDC, 24 VDC or 48 VDC(If not supplied by APEM, a resistor must be series-connected by the user) |
| Panel thickness | 1 (.039) to 6 mm (.236) max. Low level or mechanical life : 1,000,000 cycles |
| Torque | 10 Nm max. |
| Operating temperature | -30 °C to +85 °C Hand soldering : 350 °C, 5 seconds max. Packaging unit : flying lead/cable models : 1 piece - other models : 25 pieces Hand soldering : 350 °C, 5 seconds max. Packaging unit : flying lead/cable models |
| LED Color | No LED,Bushing Actuator Materials:Nickel-Plated Brass,Bushing Diameters:30mm (1.181in),Contact Materials:Silver,Flying Lead Cable Length:No Flying Leads, No Cable,Flying Lead Protection:No Protection and/or No Flying Lea |
| Max. current/voltage rating with resistive load | 1 A 30 VDC LED voltage : 12 VDC, 24 VDC or 48 VDC(If not supplied by APEM, a resistor must be series-connected by the user) |
| Feature | Specification |
|---|---|
| voltage | 12 V |
