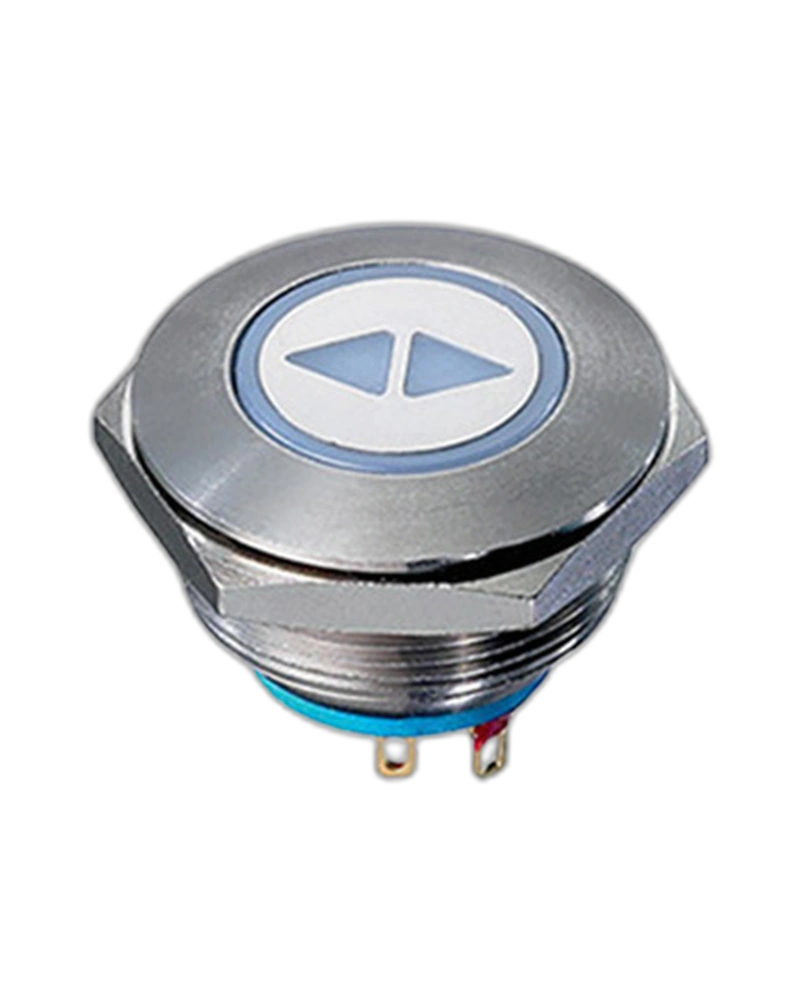

AV3SLD2489004 Versatile AV3SLD2489004 Panel Switch with gold plated contacts for excellent conductivity. Durable stainless steel bushing ensures longevity for industrial and consumer applications. Select Quantity
| Feature | Specification |
|---|---|
| force | 7 N |
| Feature | Specification |
|---|---|
| sealing | IP67 or IP69K according to IEC 60529 Travel : 0.7 mm (.027) ±0.1 mm (.003) |
| Insulation resistance | 1,000 MΩ min. at 500 VDC |
| Dielectric strength | 500 Vrms 50 Hz min. between terminals2,000 Vrms 50 Hz min. between terminals and frame |
| Electrical life | 1,000,000 cycles at full load LED voltage and consumption : 2-colour LED : 2 V (3 V max.) 20 mAOther colours : 2 V (3 V max.) 10 mAA resistor must be series-connected by the user |
| Operating force | 7 N ±-2 N |
| Torque | 5 Nm min.- 14 Nm max. applied to nut |
| Panel thickness | 1 (.039) to 6 mm (.236) max. Panel cut-out : Ø 19.2 mm (.755) or Ø 22.2 mm (.874) Min. pitch for matrix |
| mounting | 30 mm x 30 mm (1.181x1.181) Panel cut-out : Ø 19.2 mm (.755) or Ø 22.2 mm (.874) Min. pitch for matrix |
| Operating temperature | -30 °C to +70 °C Front panel |
| Max. current/voltage rating with resistive load | 50 mA 24 VDC LED voltage and consumption : 2-colour LED : 2 V (3 V max.) 20 mAOther colours : 2 V (3 V max.) 10 mAA resistor must be series-connected by the user |
