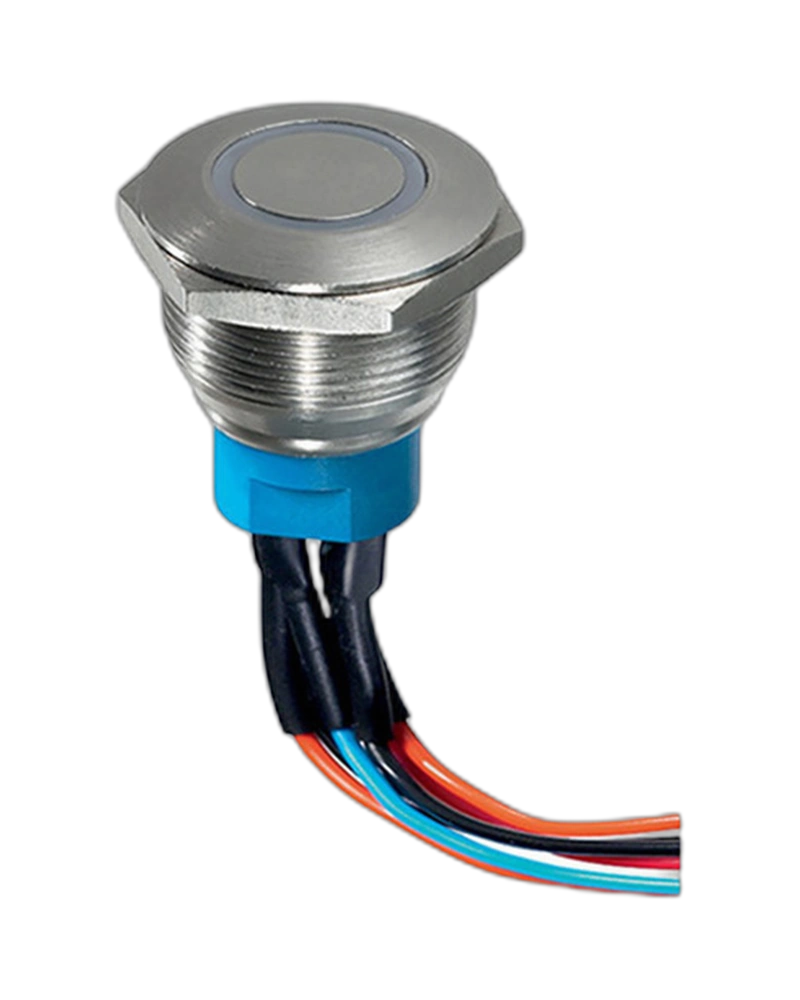

The APEM Panel Switches AV3222C202084BK is a Switches and Pushbutton with documented product-specific characteristics including LED Color: Red/Green,Bushing Actuator Materials:SAE 316L stainless steel,Contact Materials:Silver,Flying Lead Cable Length:Length 20 cm Standard,Flying Lead Protection:Tube Epoxy; Sealing: Sealed to IP67; Terminals: Cable.
The Panel Switches AV3222C202084BK is a Switches and Pushbutton. The overview below is based on the verified product information available for this model.
Selection should be based on the required operating conditions, configuration and application requirements. Exact technical values should be confirmed from current manufacturer documentation where necessary.
Consider the required function, operating conditions, installation arrangement, connections and application-specific requirements before final selection.
| Feature | Specification |
|---|---|
| LED Color | Red/Green,Bushing Actuator Materials:SAE 316L stainless steel,Contact Materials:Silver,Flying Lead Cable Length:Length 20 cm Standard,Flying Lead Protection:Tube Epoxy |
| Sealing | Sealed to IP67 |
| Insulation resistance | 10 MΩ min. at 500 VDC |
| Dielectric strength | 500 Vrms 50 Hz min. between terminals1,000 Vrms 50 Hz min. between terminals and frame |
| Operating temperature | -30 °C to +85 °C Travel: 2 mm ± 0,3 mm (.003) |
| Operating force | 5 N ± 2 N |
| Torque | 1.5 Nm min.- 14 Nm max. applied to nut |
| Panel thickness | 1 (.039) to 6 mm (.236) max. Low level or mechanical life: 1,000,000 cycles Hand soldering: 350 °C, 5 seconds max. Panel cut-out: Ø 19,2 mm (.755) or Ø 22,2 mm (.874) Min. pitch for matrix |
| mounting | 30 mm x 30 mm (1.181x1.181) With illuminated ring Momentary NC/NO Solder lug, flying lead or cable terminals Marking available on request Momentary NC/NO Solder lug, flying lead or cable terminals Marking available on re |
| Max. current/voltage rating with resistive load | 1 A 30 VDC |
| Feature | Specification |
|---|---|
| Length | 20 cm |
The APEMPanel Switches AV3222C202084BK is presented using the documented product characteristics available for this model.
| Feature | Specification |
|---|---|
| LED Color | Red/Green,Bushing Actuator Materials:SAE 316L stainless steel,Contact Materials:Silver,Flying Lead Cable Length:Length 20 cm Standard,Flying Lead Protection:Tube Epoxy |
| Sealing | Sealed to IP67 |
| Insulation resistance | 10 MΩ min. at 500 VDC |
| Dielectric strength | 500 Vrms 50 Hz min. between terminals1,000 Vrms 50 Hz min. between terminals and frame |
| Operating temperature | -30 °C to +85 °C Travel : 2 mm ± 0,3 mm (.003) |
| Operating force | 5 N ± 2 N |
| Torque | 1.5 Nm min.- 14 Nm max. applied to nut |
| Panel thickness | 1 (.039) to 6 mm (.236) max. Low level or mechanical life : 1,000,000 cycles Hand soldering : 350 °C, 5 seconds max. Panel cut-out : Ø 19,2 mm (.755) or Ø 22,2 mm (.874) Min. pitch for matrix |
| mounting | 30 mm x 30 mm (1.181x1.181) With illuminated ring Momentary NC/NO Solder lug, flying lead or cable terminals Marking available on request Momentary NC/NO Solder lug, flying lead or cable terminals Marking available on re |
| Max. current/voltage rating with resistive load | 1 A 30 VDC |
| Feature | Specification |
|---|---|
| Length | 20 cm |
