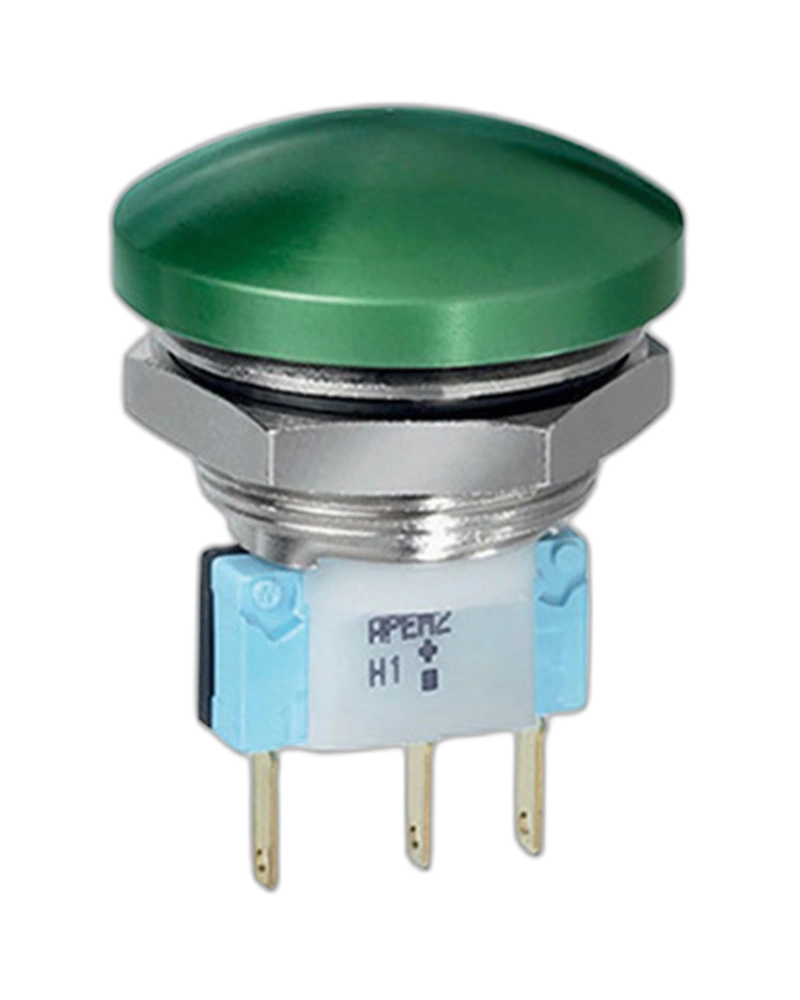

The AV22PNA24 is a versatile pushbutton panel switch with solder lug terminals, designed for reliable performance in various control systems. Upgrade your control panels effortlessly. Select Quantity
| Feature | Specification |
|---|---|
| Insulation resistance | 1,000 MΩ min. at 500 VDC |
| Dielectric strength | 2,000 Vrms 50 Hz min. between terminals and frame |
| Torque | 1.5 Nm min.- 4 Nm max. applied to nut |
| Panel thickness | 1 (.039) to 6 mm (.236) max. Low level or mechanical life : 1,000,000 cycles Front panel |
| sealing | IP65 Hand soldering : 300 °C, 5 sec. max. Panel cut-out : Ø 22.2 mm (.874) or Ø 24.2 mm (.952) Min. pitch for matrix |
| mounting | 30 mm x 30 mm (1.181x1.181) or 33 mm x 33 mm (1.299x1.299) Tactile feedback Illuminated or non-illuminated Momentary (NO) Marking available Illuminated or non-illuminated Momentary (NO) Marking available Momentary (NO) M |
| Operating temperature | -20 °C to +55 °C |
| Max. current/voltage rating with resistive load | 5 A 250 VAC |
