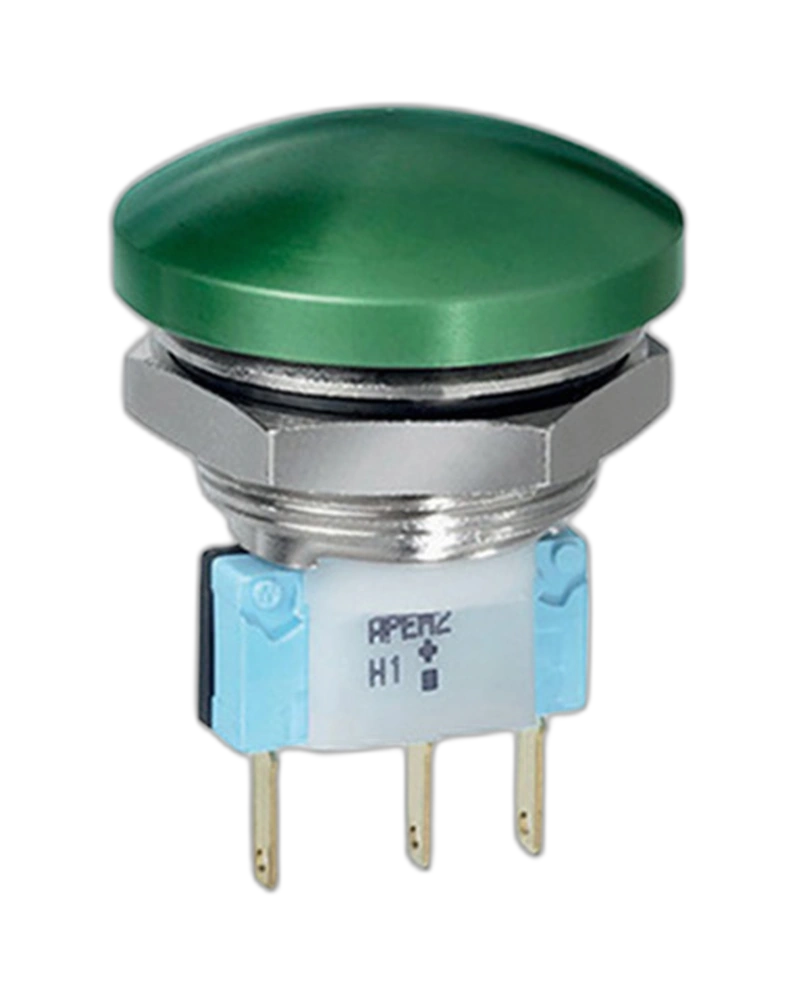

The APEM Panel Switches AV22PNA22 is a robust momentary (NO) switch with solder lug terminals, designed for industrial applications. It features high insulation resistance (1,000 MΩ min. at 500 VDC), dielectric strength (2,000 Vrms 50 Hz min.), and 1,000,000 cycle life. Ideal for demanding environments with IP65 sealing and a wide operating temperature range (-20 °C to +55 °C).
The APEM Panel Switches AV22PNA22 is a high-reliability momentary (NO) switch engineered for industrial use, featuring solder lug terminals for straightforward installation. This switch delivers exceptional durability with 1,000,000 cycles of operation, IP65 protection against dust and water, and a wide temperature range from -20 °C to +55 °C. Its robust construction ensures long-term performance in harsh environments while maintaining precise electrical characteristics.
The AV22PNA22 delivers precise electrical characteristics with an initial contact resistance of 100 mΩ max. and a minimum insulation resistance of 1,000 MΩ at 500 VDC. Its dielectric strength of 2,000 Vrms 50 Hz ensures reliable operation under high-voltage conditions, while the 5 A 250 VAC rating with resistive loads supports demanding industrial applications.
Engineered for extreme conditions, the AV22PNA22 operates within a temperature range of -20 °C to +55 °C and features IP65 sealing for protection against dust and water. The panel thickness accommodates 1 mm to 6 mm, with a standard cut-out diameter of Ø22.2 mm or Ø24.2 mm, ensuring compatibility with standard mounting configurations.
The switch mounts on 30 mm x 30 mm or 33 mm x 33 mm panels with a minimum pitch of 22.2 mm for matrix applications. It supports hand soldering at 300 °C for 5 seconds max., and requires a torque of 1.5 Nm min. to 4 Nm max. when tightening the nut.
With a mechanical life of 1,000,000 cycles and an initial contact resistance of 100 mΩ max., the AV22PNA22 ensures consistent performance over extended periods. Its robust construction and high dielectric strength make it suitable for applications requiring frequent switching without degradation.
| Feature | Specification |
|---|---|
| Insulation resistance | 1,000 MΩ min. at 500 VDC |
| Dielectric strength | 2,000 Vrms 50 Hz min. between terminals and frame |
| Torque | 1.5 Nm min.- 4 Nm max. applied to nut |
| Panel thickness | 1 (.039) to 6 mm (.236) max. Low level or mechanical life : 1,000,000 cycles Front panel |
| sealing | IP65 Hand soldering : 300 °C, 5 sec. max. Panel cut-out : Ø 22.2 mm (.874) or Ø 24.2 mm (.952) Min. pitch for matrix |
| mounting | 30 mm x 30 mm (1.181x1.181) or 33 mm x 33 mm (1.299x1.299) Tactile feedback Illuminated or non-illuminated Momentary (NO) Marking available Illuminated or non-illuminated Momentary (NO) Marking available Momentary (NO) M |
| Operating temperature | -20 °C to +55 °C |
| Max. current/voltage rating with resistive load | 5 A 250 VAC |
The APEMPanel Switches AV22PNA22 is presented using the documented product characteristics available for this model.
| Feature | Specification |
|---|---|
| Insulation resistance | 1,000 MΩ min. at 500 VDC |
| Dielectric strength | 2,000 Vrms 50 Hz min. between terminals and frame |
| Torque | 1.5 Nm min.- 4 Nm max. applied to nut |
| Panel thickness | 1 (.039) to 6 mm (.236) max. Low level or mechanical life : 1,000,000 cycles Front panel |
| sealing | IP65 Hand soldering : 300 °C, 5 sec. max. Panel cut-out : Ø 22.2 mm (.874) or Ø 24.2 mm (.952) Min. pitch for matrix |
| mounting | 30 mm x 30 mm (1.181x1.181) or 33 mm x 33 mm (1.299x1.299) Tactile feedback Illuminated or non-illuminated Momentary (NO) Marking available Illuminated or non-illuminated Momentary (NO) Marking available Momentary (NO) M |
| Operating temperature | -20 °C to +55 °C |
| Max. current/voltage rating with resistive load | 5 A 250 VAC |
