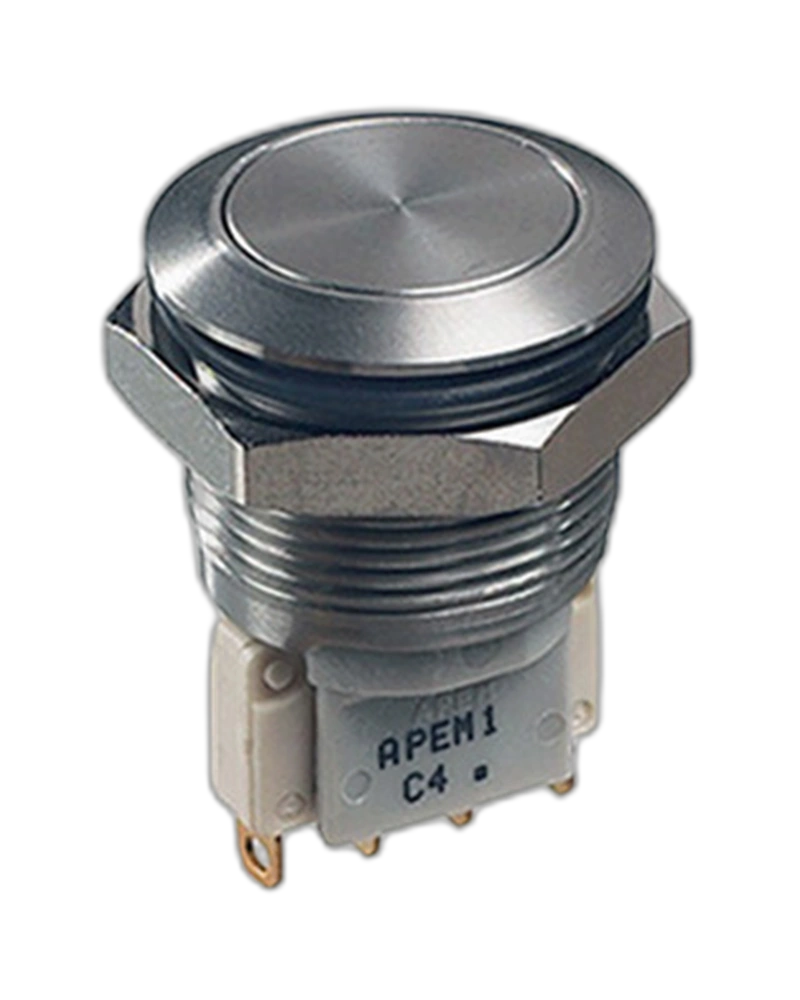

The APEM Panel Switches AV19LP007 is a robust autoswitch designed for industrial applications. Featuring an IP65 and IP69K sealing rating, it ensures reliable operation in harsh environments. With a maximum current rating of 5 A 250 VAC and 1,000,000 cycle mechanical life, this switch delivers exceptional durability for demanding industrial systems.
The APEM Panel Switches AV19LP007 is a high-reliability autoswitch engineered for industrial environments. This switch combines robust electrical performance with exceptional mechanical durability, making it ideal for applications requiring high-cycle operation in extreme conditions. Its IP65 and IP69K sealing ratings ensure protection against dust, water, and harsh industrial environments, while the 1,000,000 cycle mechanical life and 5 A 250 VAC current rating support long-term reliability in critical industrial systems.
The AV19LP007 delivers precise electrical performance with a maximum current rating of 5 A 250 VAC and 5 A 125 VAC. It supports resistive loads up to 6,000 cycles and 30 VDC loads up to 50,000 cycles. The initial contact resistance of 100 mΩ max. ensures minimal electrical interference, while the dielectric strength of 2,000 Vrms 50 Hz min. provides robust electrical isolation between terminals and the frame.
Engineered for extreme conditions, the AV19LP007 operates within a temperature range of -20 °C to +85 °C. Its IP65 and IP69K sealing ratings protect against dust, water, and high-pressure cleaning, making it suitable for industrial environments with harsh conditions and frequent exposure to contaminants.
With a mechanical life of 1,000,000 cycles, the AV19LP007 is designed for long-term reliability in high-stress applications. The switch features a torque range of 1.5 Nm min. to 4 Nm max. for secure mounting, ensuring consistent performance even under heavy usage conditions.
The AV19LP007 requires a panel thickness of 1 mm to 9 mm and a 30 mm x 30 mm mounting area. It features a panel cut-out of Ø 19.2 mm, with a minimum pitch for matrix applications. The switch is compatible with standard industrial panel mounting systems and can be integrated into a wide range of industrial control systems.
| Feature | Specification |
|---|---|
| Insulation resistance | 1,000 MΩ min. at 500 VDC |
| Dielectric strength | 2,000 Vrms 50 Hz min. between terminal and frame |
| Torque | 1.5 Nm min.- 4 Nm max. applied to nut |
| Panel thickness | 1 (.039) to 9 mm (.354) max. Low level or mechanical life : 1,000,000 cycles Front panel |
| sealing | IP65 and IP69K Panel cut-out : Ø 19.2 mm (.755) Min. pitch for matrix |
| Operating temperature | -20 °C to +85 °C |
| Max. current/voltage rating with resistive load | 5 A 250 VAC - 5 A 125 VAC - 6,000 cycles5 A 15 VDC - 3 A 30 VDC - 50,000 cycles |
The APEMPanel Switches AV19LP007 is presented using the documented product characteristics available for this model.
| Feature | Specification |
|---|---|
| Insulation resistance | 1,000 MΩ min. at 500 VDC |
| Dielectric strength | 2,000 Vrms 50 Hz min. between terminal and frame |
| Torque | 1.5 Nm min.- 4 Nm max. applied to nut |
| Panel thickness | 1 (.039) to 9 mm (.354) max. Low level or mechanical life : 1,000,000 cycles Front panel |
| sealing | IP65 and IP69K Panel cut-out : Ø 19.2 mm (.755) Min. pitch for matrix |
| Operating temperature | -20 °C to +85 °C |
| Max. current/voltage rating with resistive load | 5 A 250 VAC - 5 A 125 VAC - 6,000 cycles5 A 15 VDC - 3 A 30 VDC - 50,000 cycles |
