Explore performance details, construction highlights, applications, and technical information in one clear overview.

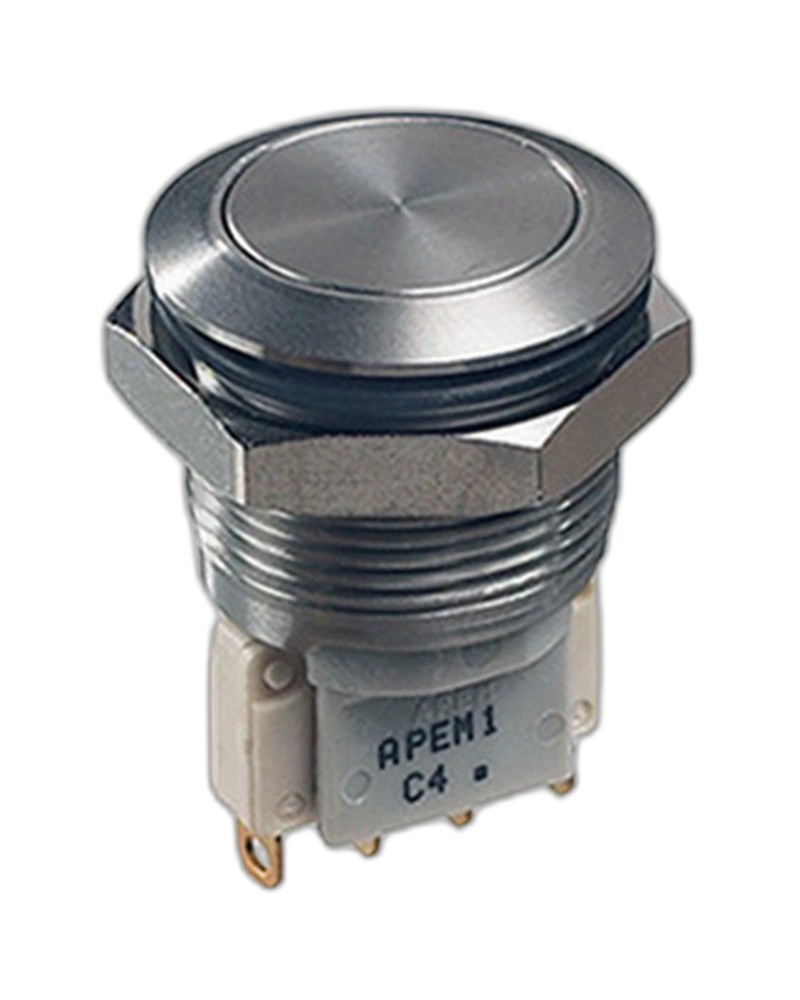

The APEM Panel Switches AV19LB407 is a Switches and Pushbutton with documented product-specific characteristics including sealing: IP65 and IP69K Panel cut-out : Ø 19.2 mm (.755) Min. pitch for matrix; mounting: 30 mm x 30 mm (1.181x1.181) Low level or mechanical life : 1,000,000 cycles Front panel; Max. current/voltage rating with resistive load: 5 A 250 VAC - 5 A 125 VAC - 6,000 cycles5 A 15 VDC - 3 A 30 VDC - 50,000 cycles.
The Panel Switches AV19LB407 is a Switches and Pushbutton. The overview below is based on the verified product information available for this model.
Selection should be based on the required operating conditions, configuration and application requirements. Exact technical values should be confirmed from current manufacturer documentation where necessary.
Consider the required function, operating conditions, installation arrangement, connections and application-specific requirements before final selection.
| Feature | Specification |
|---|---|
| sealing | IP65 and IP69K Panel cut-out : Ø 19.2 mm (.755) Min. pitch for matrix |
| mounting | 30 mm x 30 mm (1.181x1.181) Low level or mechanical life : 1,000,000 cycles Front panel |
| Max. current/voltage rating with resistive load | 5 A 250 VAC - 5 A 125 VAC - 6,000 cycles5 A 15 VDC - 3 A 30 VDC - 50,000 cycles |
| Feature | Specification |
|---|---|
| Insulation resistance | 1,000 MΩ min. at 500 VDC |
| Dielectric strength | 2,000 Vrms 50 Hz min. between terminal and frame |
| Torque | 1.5 Nm min.- 4 Nm max. applied to nut |
| Panel thickness | 1 (.039) to 9 mm (.354) max. Low level or mechanical life : 1,000,000 cycles Front panel |
| Operating temperature | -20 °C to +85 °C |
The APEMPanel Switches AV19LB407 is presented using the documented product characteristics available for this model.
| Feature | Specification |
|---|---|
| sealing | IP65 and IP69K Panel cut-out : Ø 19.2 mm (.755) Min. pitch for matrix |
| mounting | 30 mm x 30 mm (1.181x1.181) Low level or mechanical life : 1,000,000 cycles Front panel |
| Max. current/voltage rating with resistive load | 5 A 250 VAC - 5 A 125 VAC - 6,000 cycles5 A 15 VDC - 3 A 30 VDC - 50,000 cycles |
| Feature | Specification |
|---|---|
| Insulation resistance | 1,000 MΩ min. at 500 VDC |
| Dielectric strength | 2,000 Vrms 50 Hz min. between terminal and frame |
| Torque | 1.5 Nm min.- 4 Nm max. applied to nut |
| Panel thickness | 1 (.039) to 9 mm (.354) max. Low level or mechanical life : 1,000,000 cycles Front panel |
| Operating temperature | -20 °C to +85 °C |
